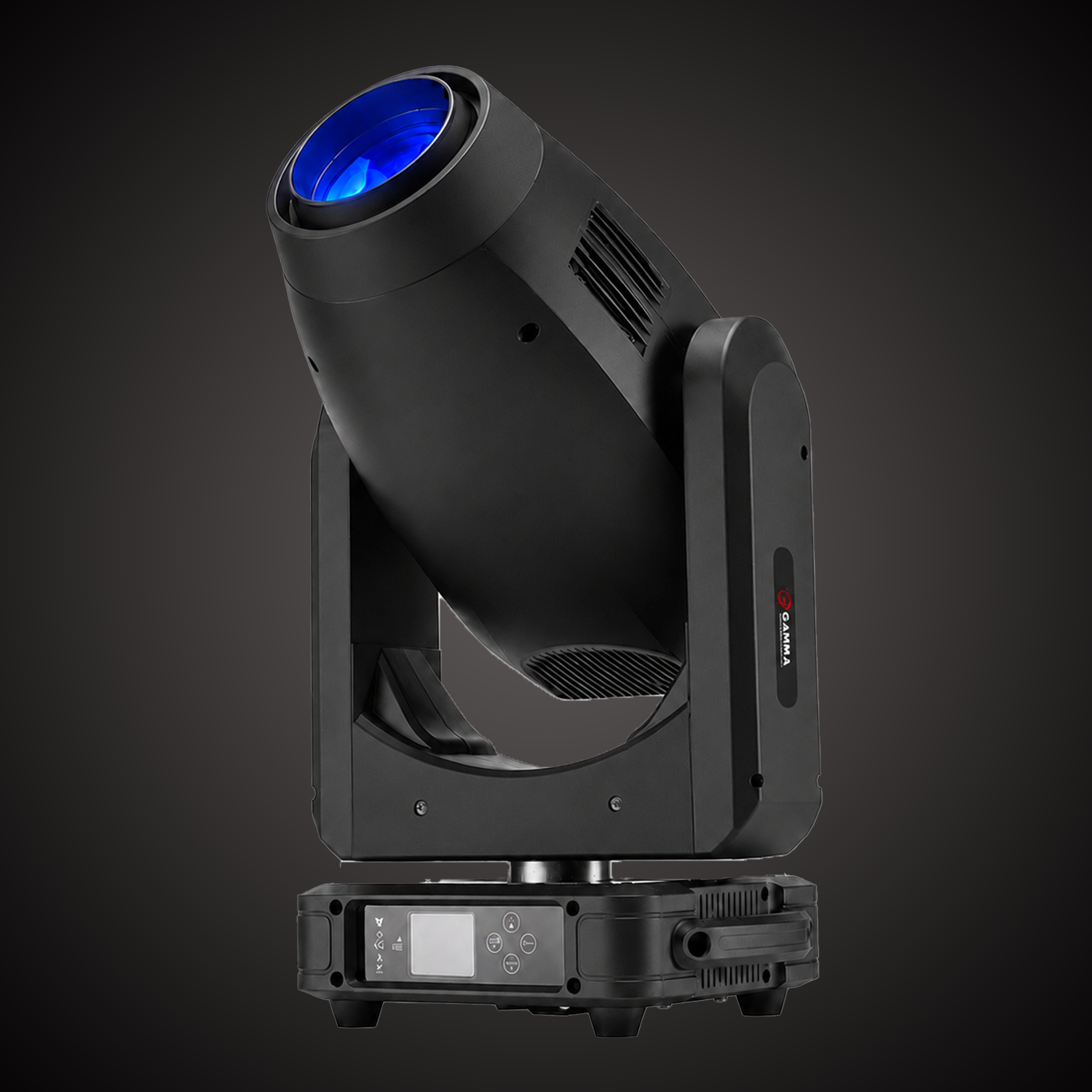

Orux 700 Z (Profile)
Our most advanced mover, the Orux Led 700 is a profile fixture that is equipped with a 700watt LED. Its precision optics also features a light color source of 6,800k, CMY + CTO color mixing, and 1 color wheel that is equipped with 8 colors to give the user a full color spectrum from soothing pastels to rich saturated colors. What truly makes the Orux 700 versatile is its 4 independently steerable cutting blades to create a variety of angles and shapes with its beam, along with its metal static & rotational gobo wheels that offer over 14 combined gobos. Perfect for any sized venue with its motorized zoom angle of 5º – 45º it can be used to create a wide or narrow beam along with its 8-facet prism to create any dynamic look that is desired. The Orux Led 700 is the perfect lighting fixture for any sized venue that needs an advanced programming look.
Loading...
Light Source:
- LED Power: 700w LED
- Light Source Color: 6,800K
- CMY + CTO Color Mixing
- 20,000 hours LED lifetime
- CRI: ≥90
Effects:
- 1 Color Wheel: 8 colors + Open
- Motorized Zoom 5º – 45º
- CMY Color Mixing
- CTO Filter: 2,800k – 6,800k
- Framing System: (8) independently controlled blades (90º rotation)
- 1 Static Gobo Wheel: 6 iMetal Gobos + Open
- 1 Rotational Gobo Wheel: 7 Metal Gobos + Open
- Prism: 8 facet prism
- Animation Wheel
- Linear Focus
- Frost Filter
- Strobe: High Speed Strobe Effect 1-20 flashes per second
- Color Output: Linear Color System
Housing:
- Internal Housing: Die-casting Aluminum
- External Housing: High Temperature Strength Plastic
- Display: 4 Button Menu
- DMX in & out: 3-Pin or 5- Pin DMX input & output
- Power: True One PowerCon™ Input
Electrical:
- Voltage: AC100-240V
- Max Power: 800w @ 220v
Control:
- Control Protocol: DMX 512/ 3-pin interfaces
- Control System: DMX, Auto run, Master/Slave, and Sound
- DMX Channels: 34 CH, 39 CH
Working Environment:
- Cooling System: Efficient Low Fan Cooling System/ Intelligent fan speed function (Quiet Mode)
- IP Grade: IP-20
Dimensions:
- Net Weight: 75 lbs
- Dimensions: ” in
User Manual
Photometrics
Controller Profiles
- Lightshark– “Orux700” (34/39 Channels)
- Onyx– “Orux 700” (34/39 Channels)
- Grand MA–
- Hog 4- “gamma@orux_700” (34/39 Channels)
- Chamsys-
- Jands Vista– “Orux 700 Hybrid” (34/39 Channels)
- Lightkey-
