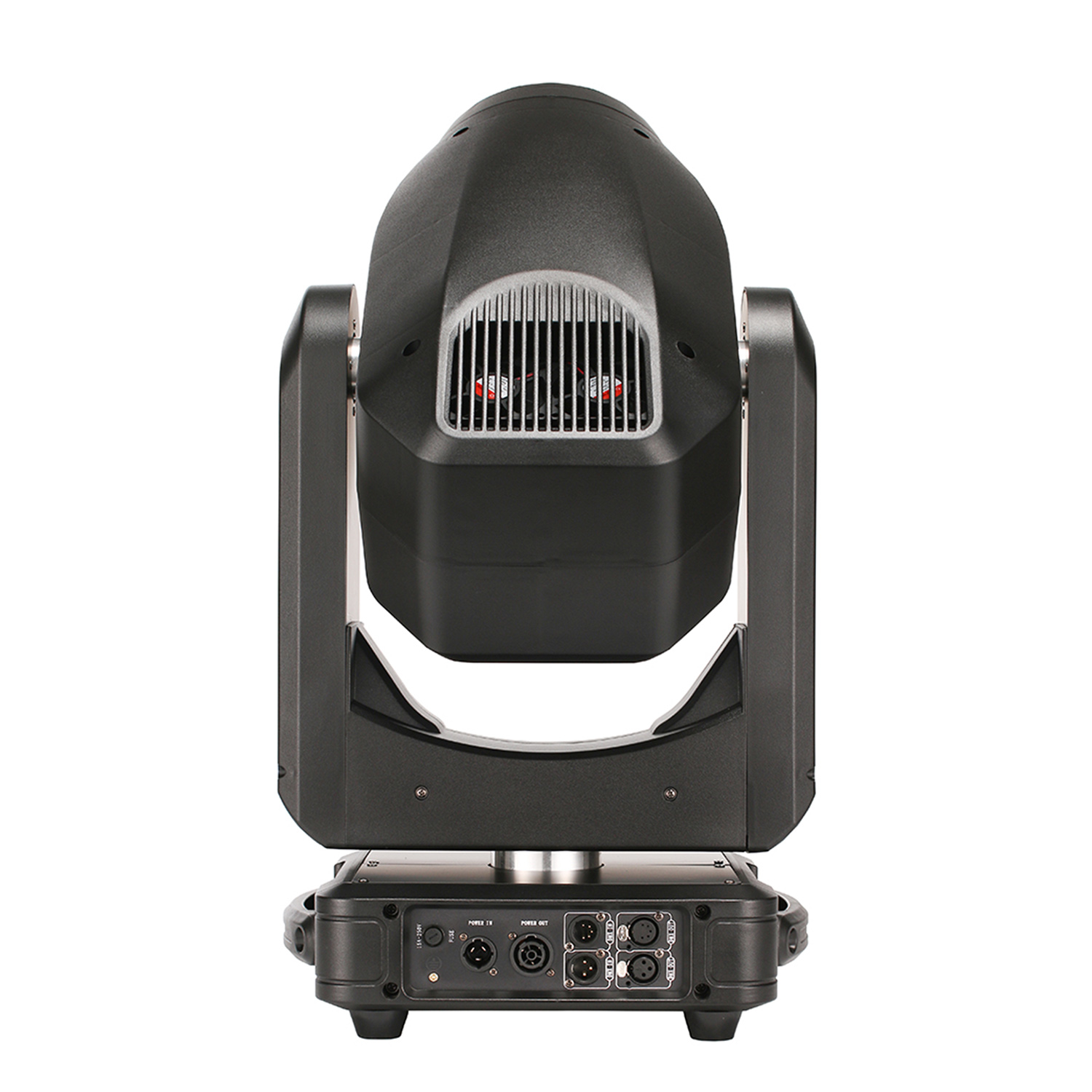

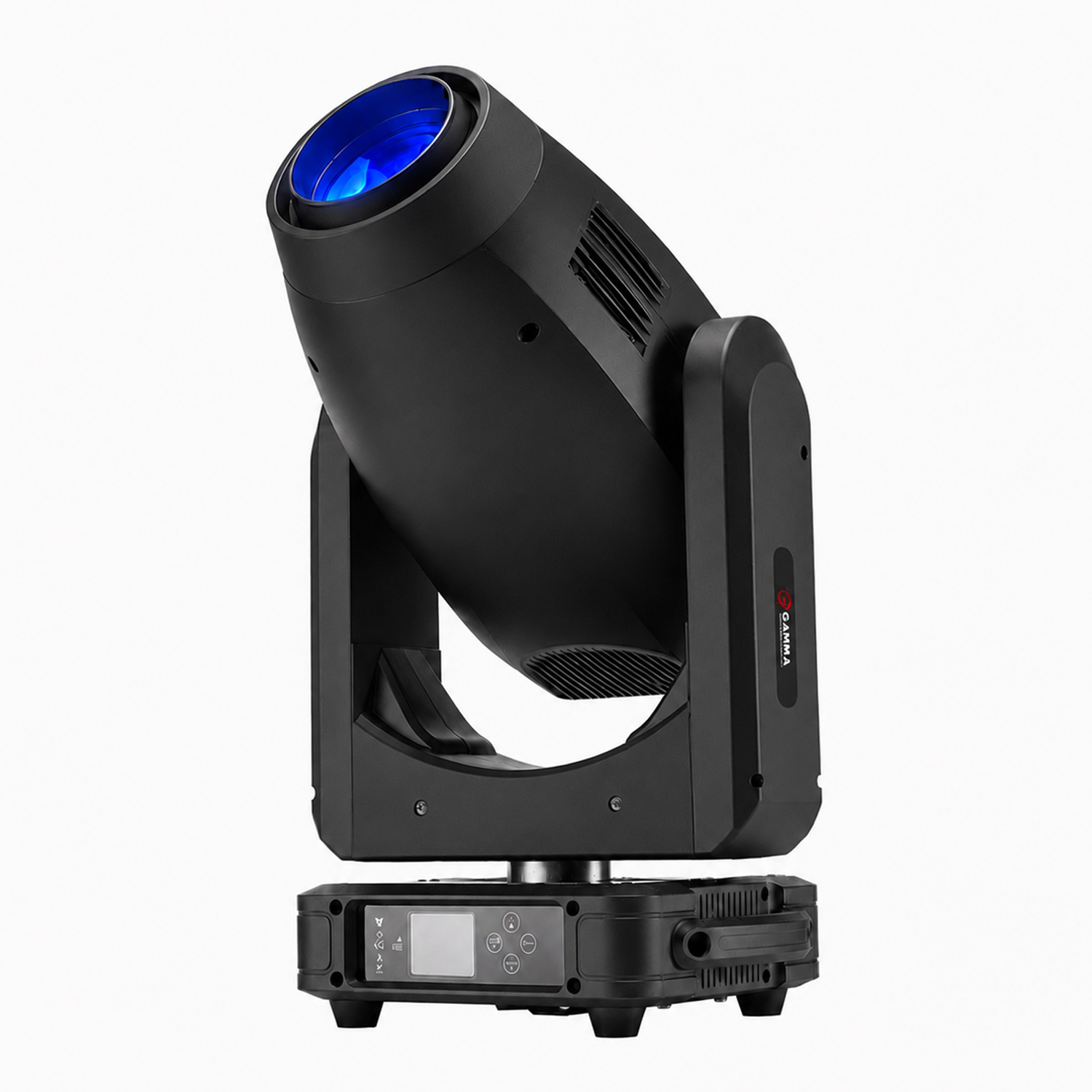

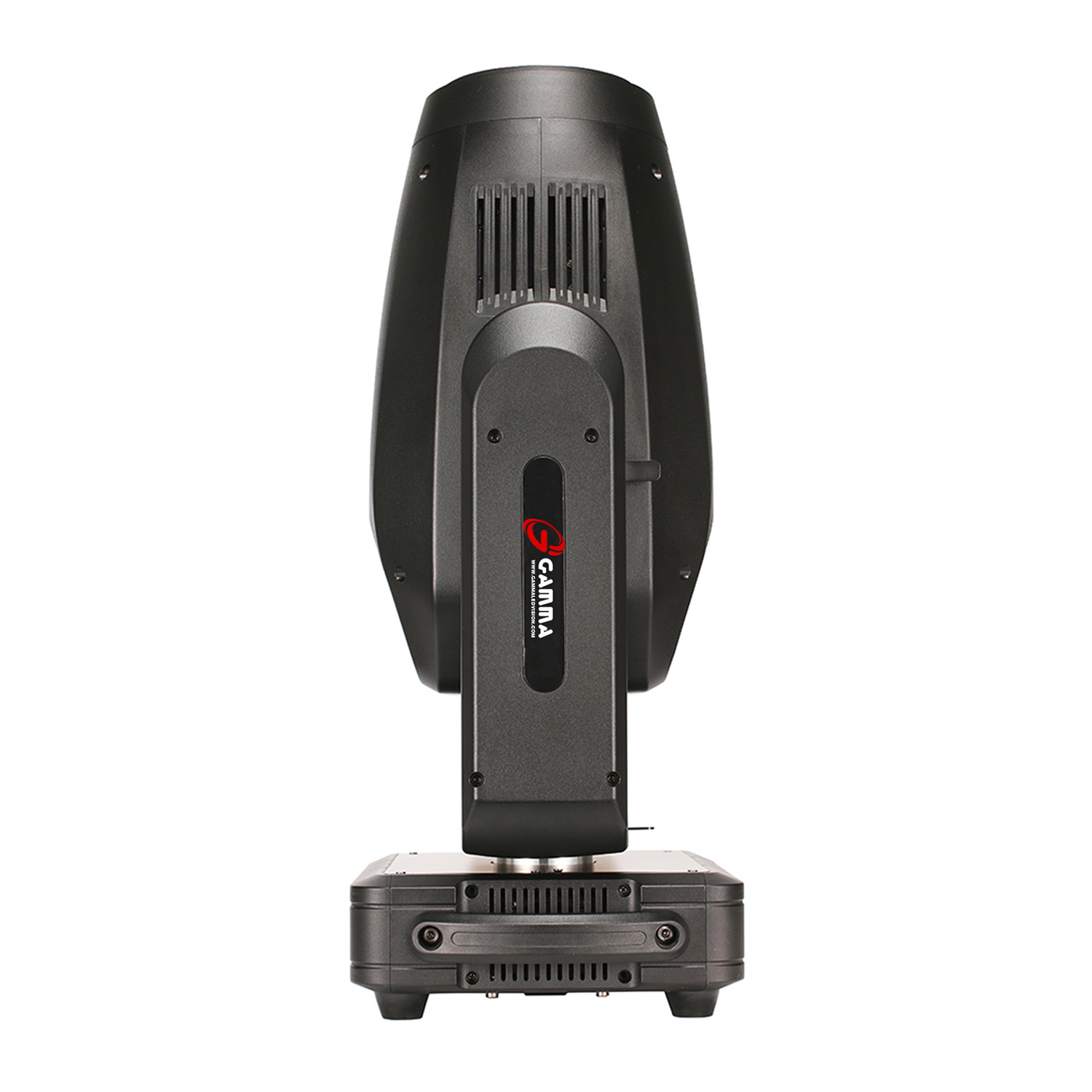

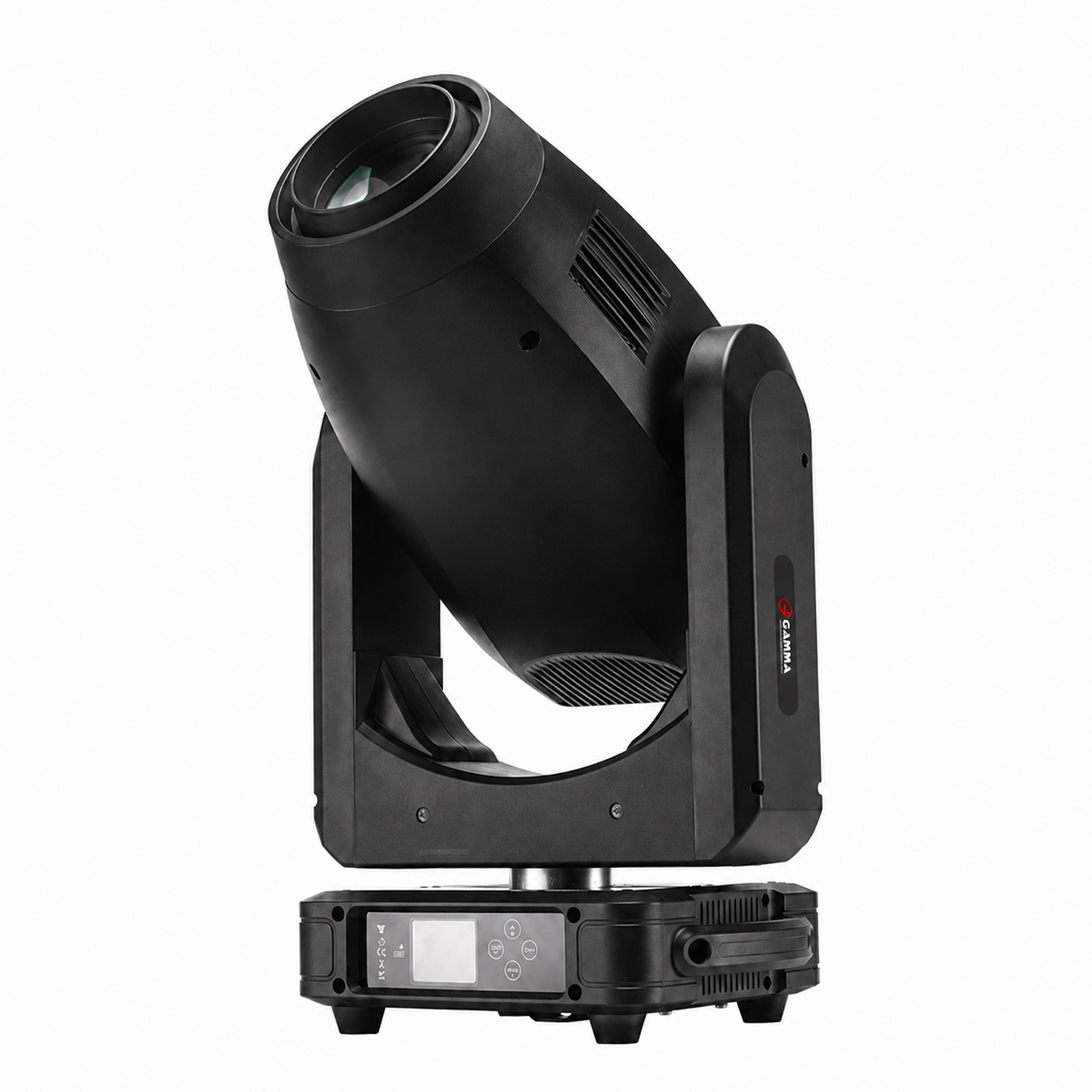

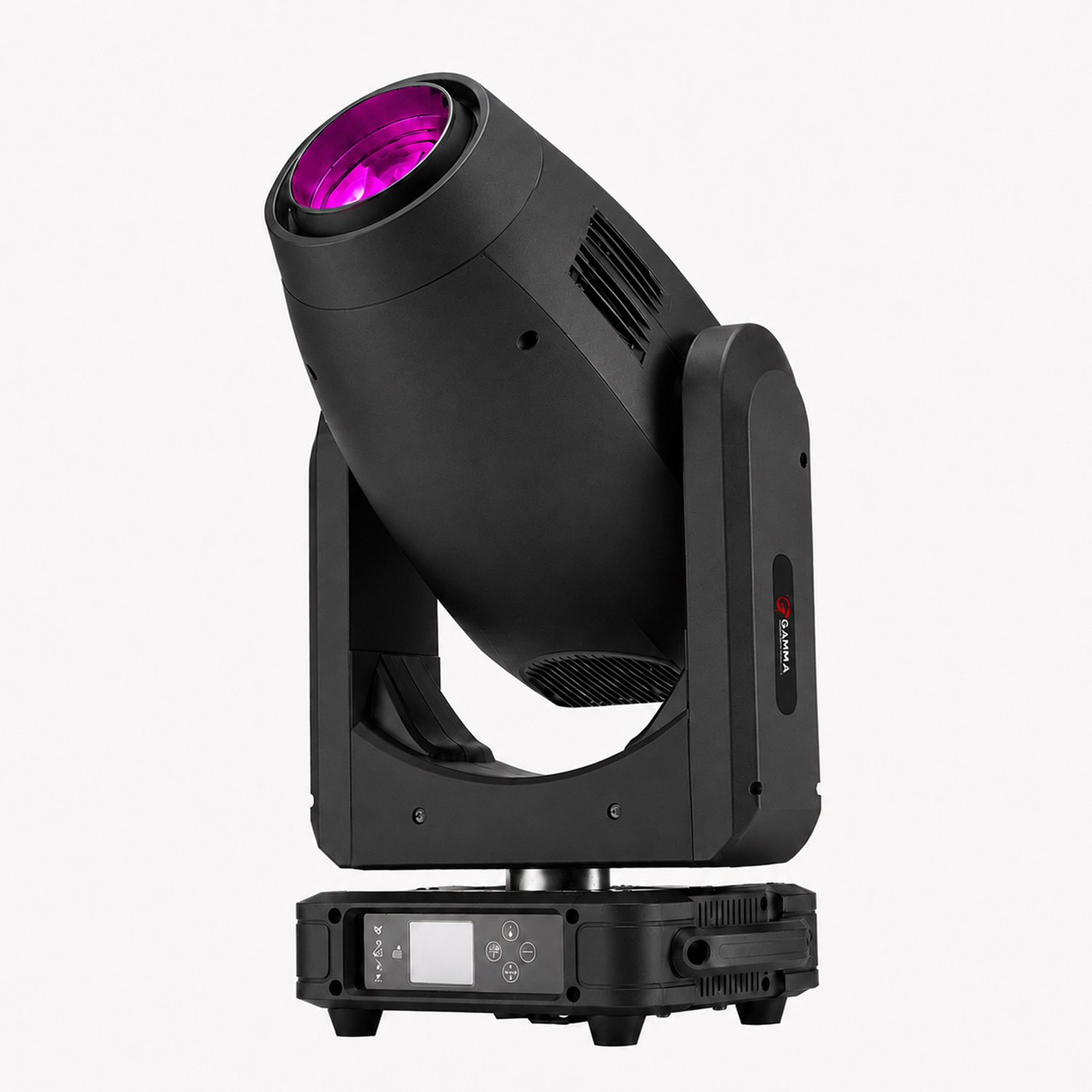

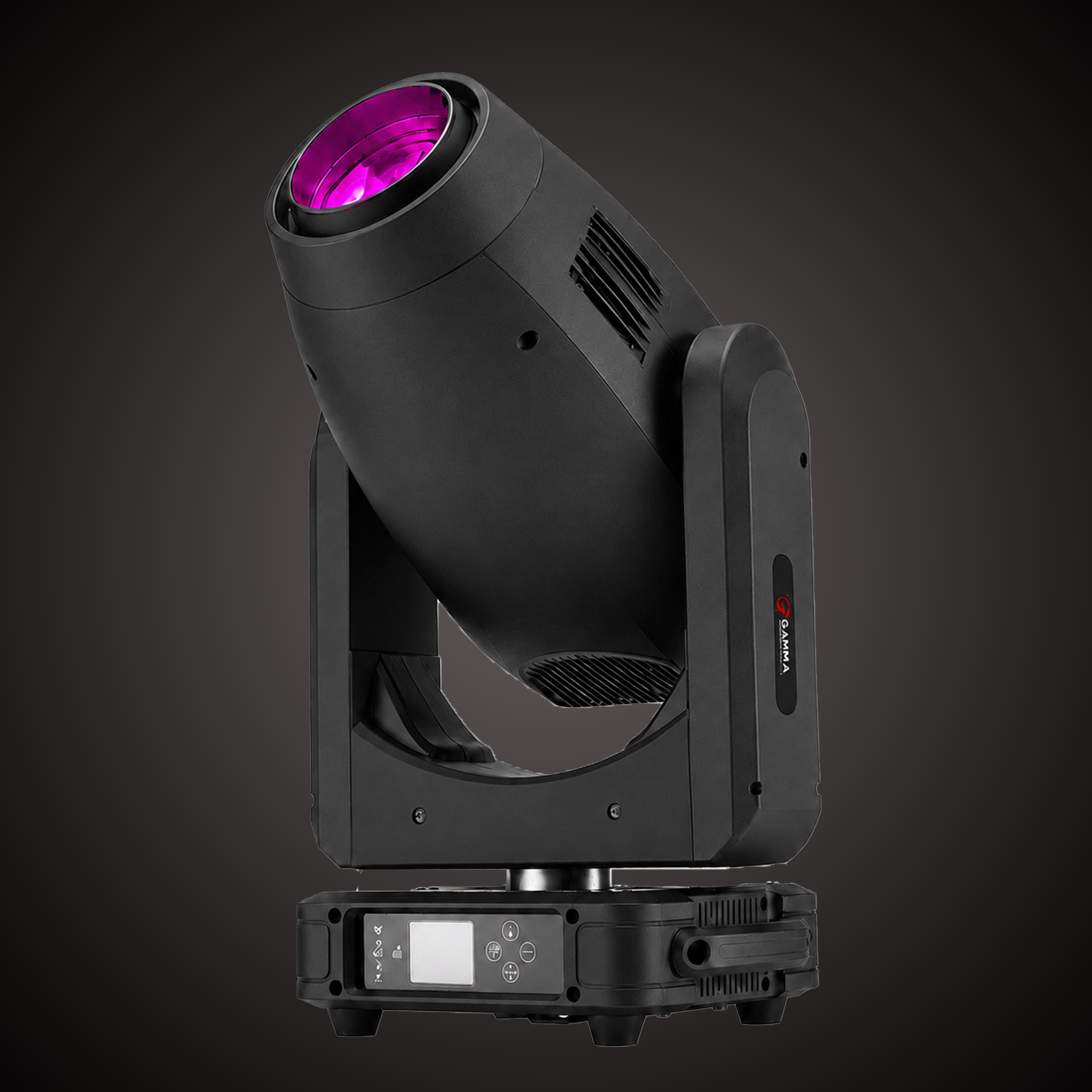

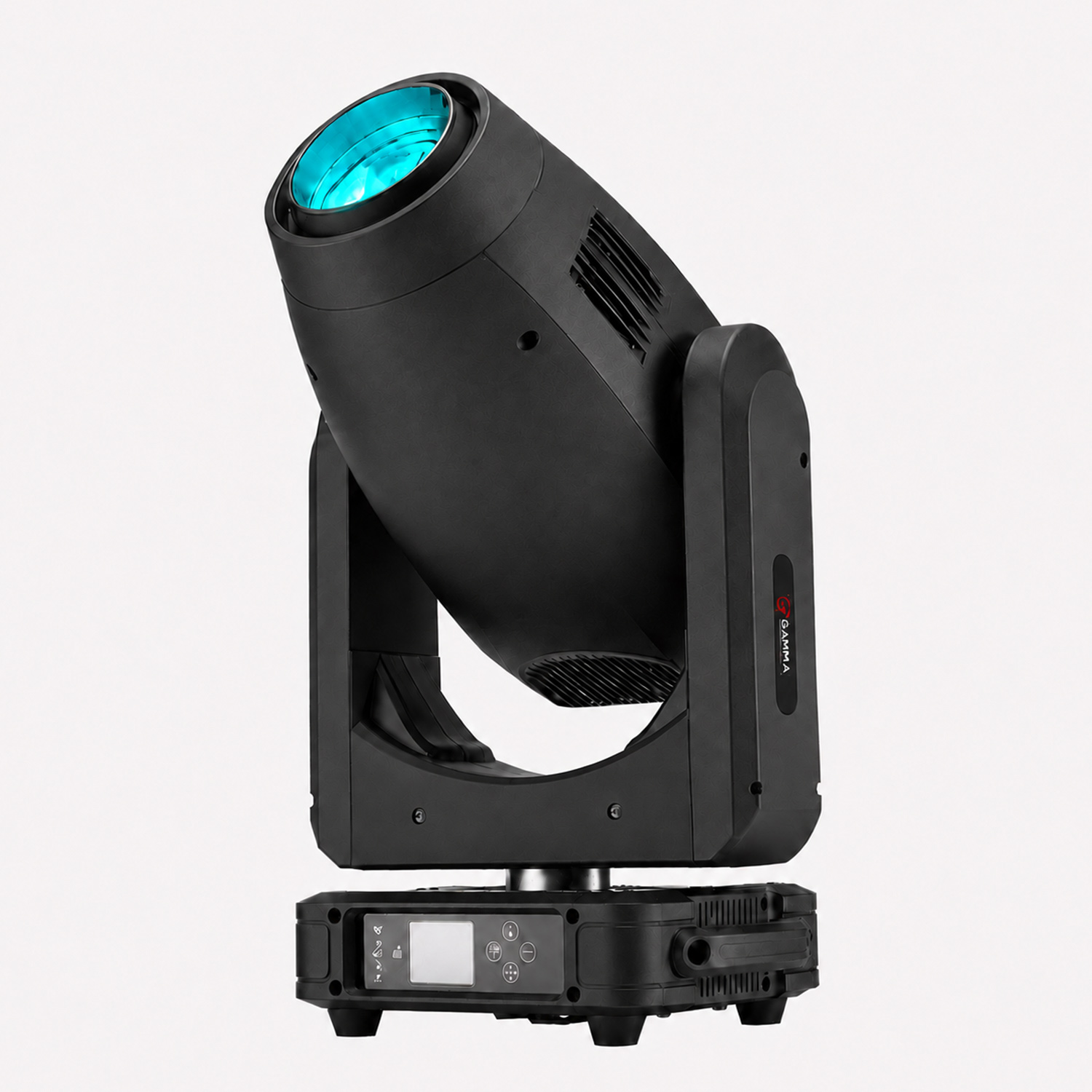

Orux 480 Z (Profile)
The Orux 480 Z (Profile) is one of our most advanced lighting fixtures. Part of our Orux series, it is equipped with a 480watt LED while being a versatile fixture capable of achieving a wide zoom range of 4.5º – 55º. Its precision optics feature a light color temperature of 6,500k, CMY + CTO color mixing, and a color wheel that is equipped with 7 colors + open which gives the user a full color spectrum from soothing pastels to rich saturated colors. One of its best features is its framing system which has (8) independently controlled blades which allows the creation of a variety of shapes. Also featured is its 8-facet prism, 1 static gobo wheel + 1 rotational gobo wheel which combines for 16 metal gobos. The Orux 480 Z is the perfect LED moving fixture for any sized venue looking to include advanced programming & looks.
Loading...
Light Source:
- LED Power: 480w LED
- Light Source Color: 6,500K
- CMY + CTO Color Mixing
- 20,000 hours LED lifetime
- CRI: ≥74 or ≥90
Effects:
- 1 Color Wheel: 7 colors + Open
- Motorized Zoom 4.5º – 55º
- CMY Color Mixing
- CTO Filter: 7,100k-2,500k
- Framing System: (8) independently controlled blades (90º rotation)
- 1 Static Gobo Wheel: 8 interchangeable + Open
- 1 Rotational Gobo Wheel: 8 Interchangeable + Open
- Prism: 5 facet prism
- Animation Wheel
- Linear Focus
- Frost Filter
- Strobe: High Speed Strobe Effect 1-20 flashes per second
- Color Output: Linear Color System
Housing:
- Internal Housing: Die-casting Aluminum
- External Housing: High Temperature Strength Plastic
- Display: 4 Button Menu
- DMX in & out: 3-Pin & 5- Pin DMX input & output
- Power: True One PowerCon™ Input
Electrical:
- Voltage: AC100-240V
- Max Power: 600w @ 120v
Control:
- Control Protocol: DMX 512/ 3-pin interfaces
- Control System: DMX, Auto run, Master/Slave, and Sound
- DMX Channels: 34 CH, 54 CH
Working Environment:
- Cooling System: Efficient Low Fan Cooling System/ Intelligent fan speed function (Quiet Mode)
- IP Grade: IP-20
Dimensions:
- Net Weight: 75 lbs
- Dimensions: 33x15x18″ in
User Manual
Controller Profiles
- Lightshark– “Orux480Pr” (34/54 Channels)
- Onyx– “Orux 480 Z Profile” (34/54 Channels)
- Grand MA–
- Hog 4- “Orux 480 Z Profile” (34/54 Channels)
- Chamsys-
- Jands Vista–
- Lightkey-
