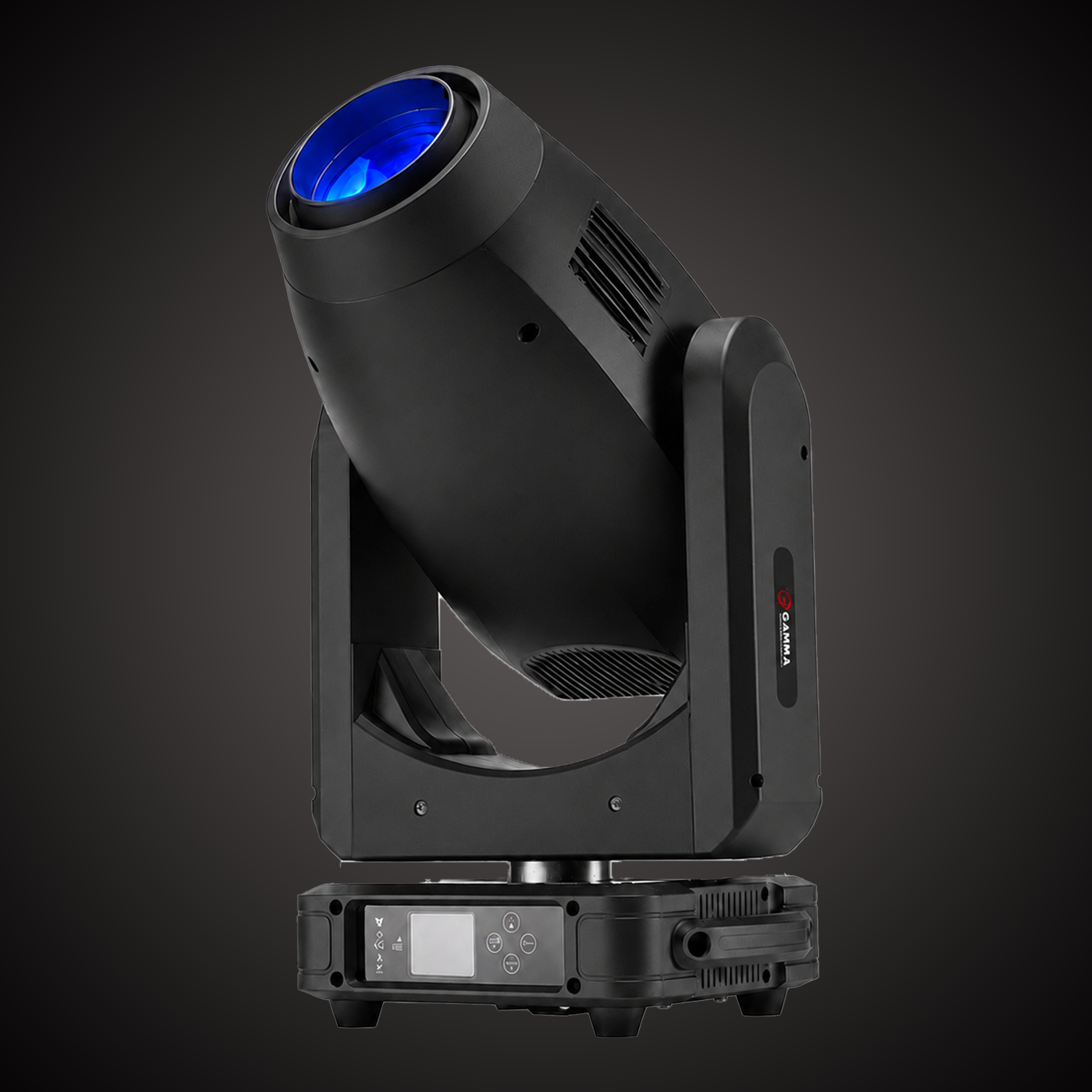

Orux 700 Z (Profile)
Introducing the Orux 700 Z, it belongs to our most advanced moving head series due to its unmatched performance and features. Its LED optics features a light color source of 6,800k at 700 watts of power. Combining its color wheel with CMY + CTO filters to give the user full access to precise color combinations. What truly makes the Orux 700 Z versatile is its 4 independently steerable cutting blades to create a variety of angles and shapes with its beam. Additionally it is equipped with its metal static & rotational gobo wheels that offer over 14 combined gobos. Perfect for any sized venue with its motorized zoom angle of 5º – 50º it can be used to create a wide or narrow beam. Whether you’re lighting up a concert stage, transforming a theater production, or making a statement at a corporate event, the Orux 700 Z gives you the tools to craft breathtaking lighting displays with precision, control, and creativity.
Loading...
Light Source:
- LED Power: 700w LED
- Light Source Color: 6,800K
- CMY + CTO Color Mixing
- 20,000 hours LED lifetime
- CRI: ≥70
Effects:
- 1 Color Wheel: 7 colors + Open
- Motorized Zoom 5º – 50º
- CMY Color Mixing
- CTO Filter: 2,700k – 7,000k
- Framing System: (8) independently controlled blades (90º rotation)
- 1 Static Gobo Wheel: 8 Metal Gobos + Open
- 1 Rotational Gobo Wheel: 6 Metal Gobos + Open
- Prism: 3 facet & 6 facet prism
- Animation Wheel
- Linear Focus
- Frost Filter
- Strobe: High Speed Strobe Effect 1-20 flashes per second
- Color Output: Linear Color System
Housing:
- Internal Housing: Die-casting Aluminum
- External Housing: High Temperature Strength Plastic
- Display: 4 Button Menu
- DMX in & out: 3-Pin or 5- Pin DMX input & output
- Power: PowerCon™ Input
Electrical:
- Voltage: AC100-240V
- Max Power: 900w
Control:
- Control Protocol: DMX 512/ 3-pin interfaces/ RDM
- Control System: DMX, Auto run, Master/Slave, and Sound
- DMX Channels: 36 CH
Working Environment:
- Cooling System: Efficient Low Fan Cooling System/ Intelligent fan speed function (Quiet Mode)
- IP Grade: IP-20
Dimensions:
- Net Weight: 88 lbs/ 40kgs
- Dimensions: 20 x 13.6 x 31.4″ in/ 510 x 345 x 800 mm
User Manual
Photometrics
Controller Profiles
- Lightshark– “Orux700” (34/39 Channels)
- Onyx– “Orux 700” (34/39 Channels)
- Grand MA–
- Hog 4- “gamma@orux_700” (34/39 Channels)
- Chamsys-
- Jands Vista– “Orux 700 Hybrid” (34/39 Channels)
- Lightkey-
