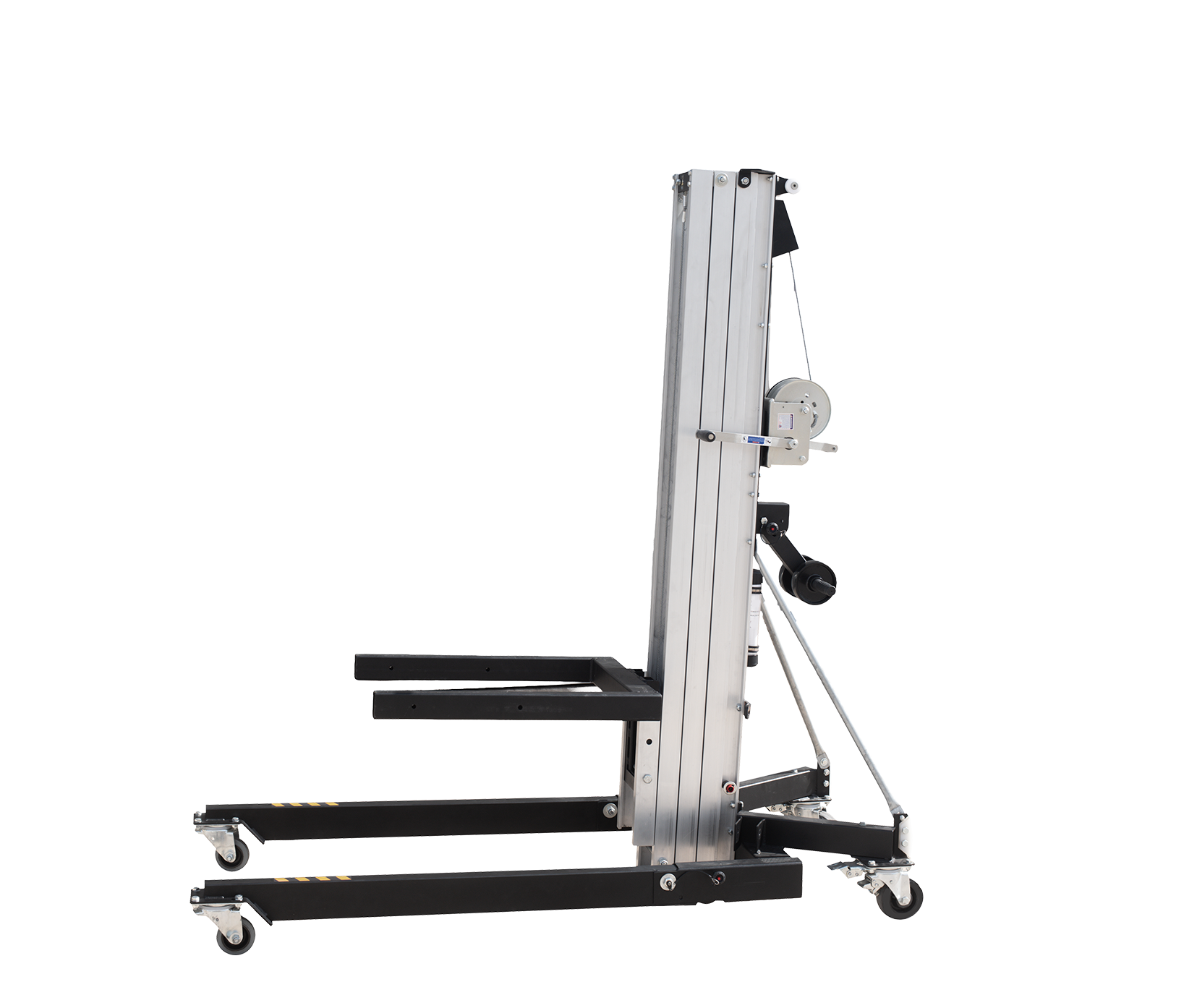

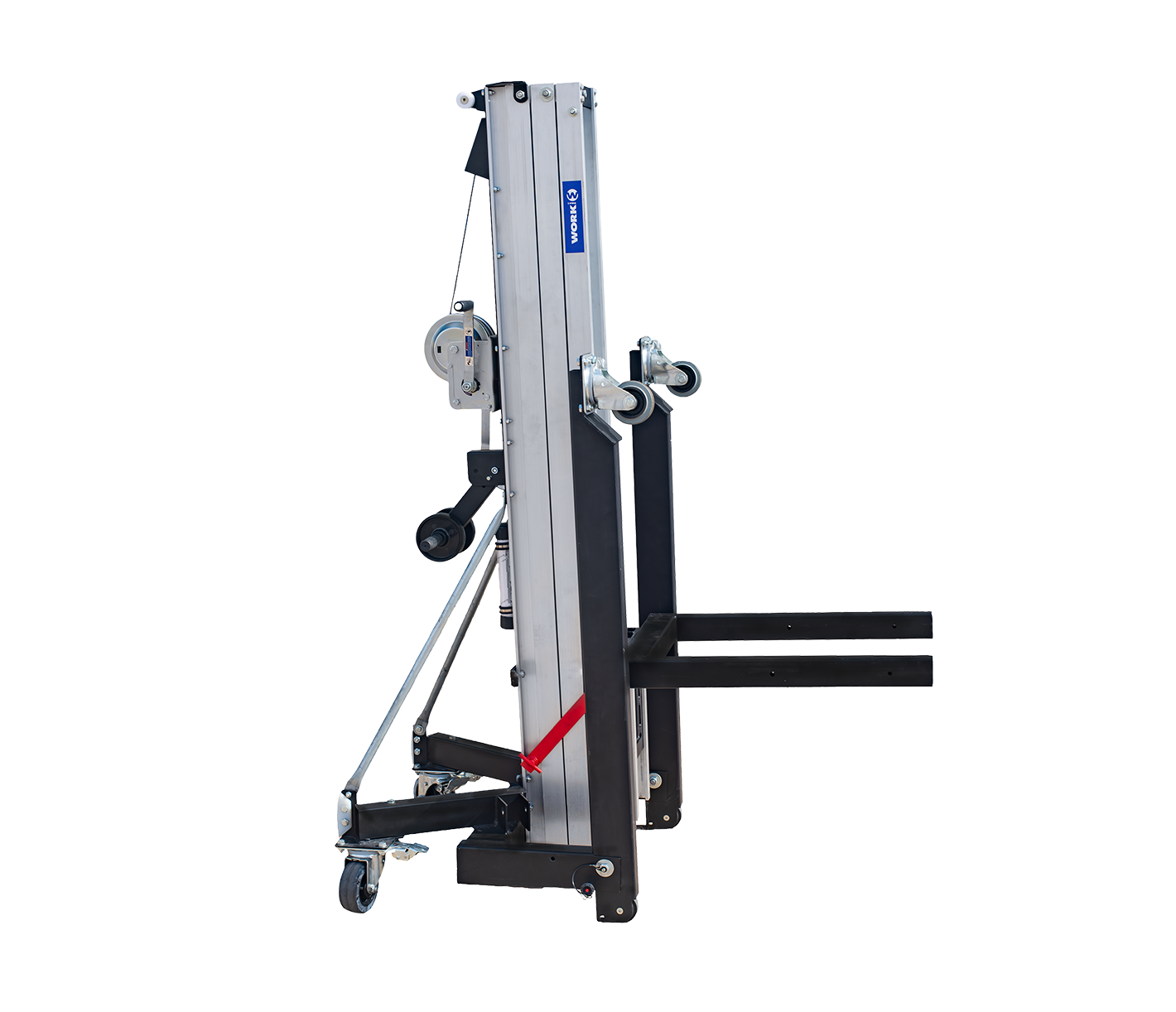

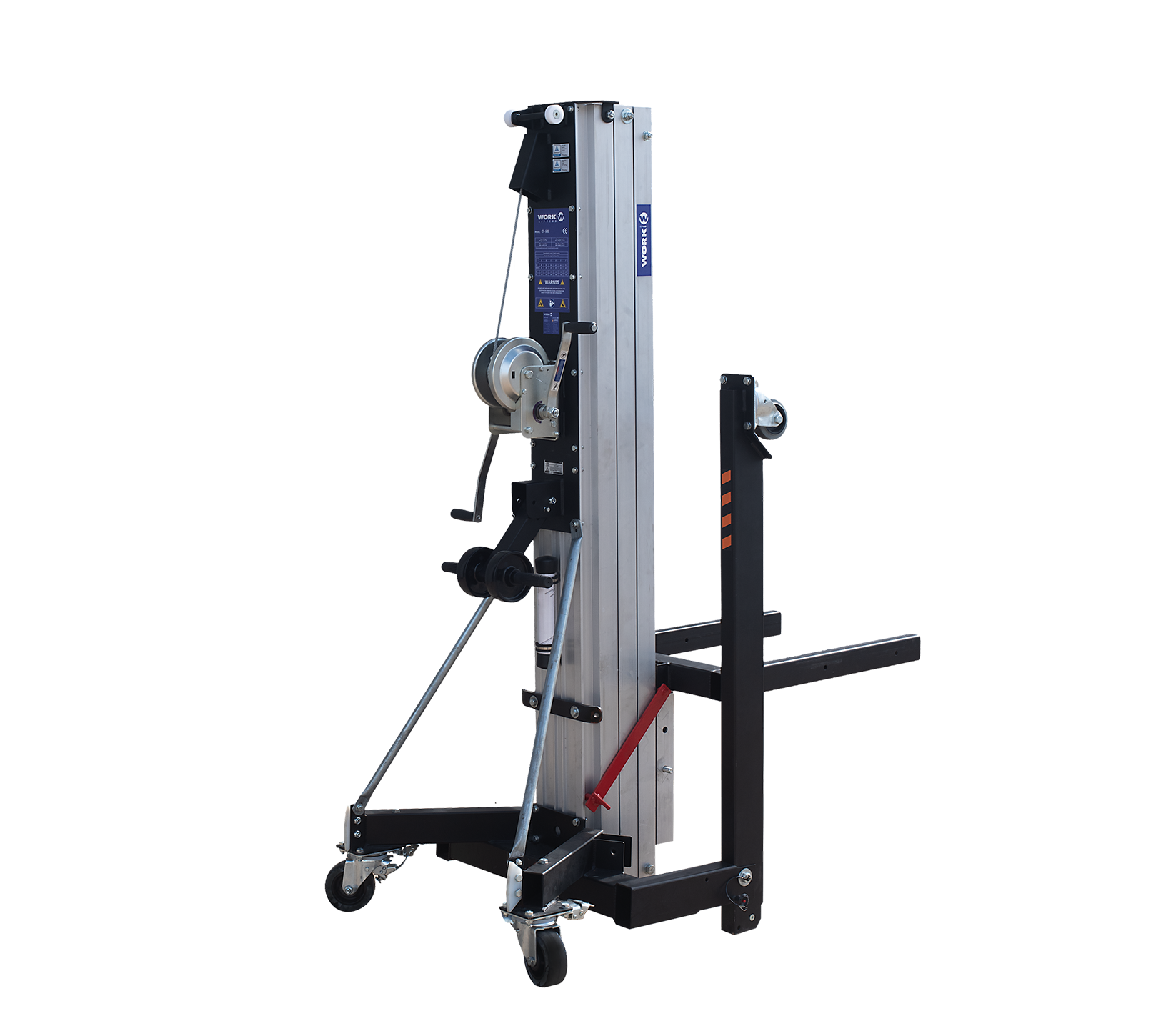

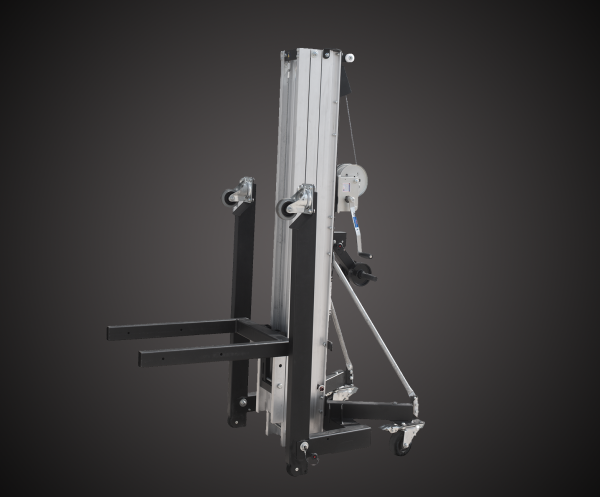

CT-640 (Material Lift)
Introducing the WorkPro CT-640—our latest innovation in material lifts, designed to deliver unmatched versatility and ease of use. As the only dedicated material lift in the WorkPro lineup, the CT-640 is your go-to solution for efficiently raising and positioning equipment in any venue. Equipped with smooth-rolling caster wheels on its sturdy legs, it glides effortlessly from one location to another, ensuring setup is a breeze. With a max load capacity of 800 lbs and a lifting height up to 16.5 feet, this powerhouse is perfect for events, rigging, and lifting equipment with ease. Experience the next level of convenience with the CT-640—where mobility meets strength.
Loading...
Features:
- Modes of operation: Mechanism Mode
- Four extensible profiles made of extruded aluminum.

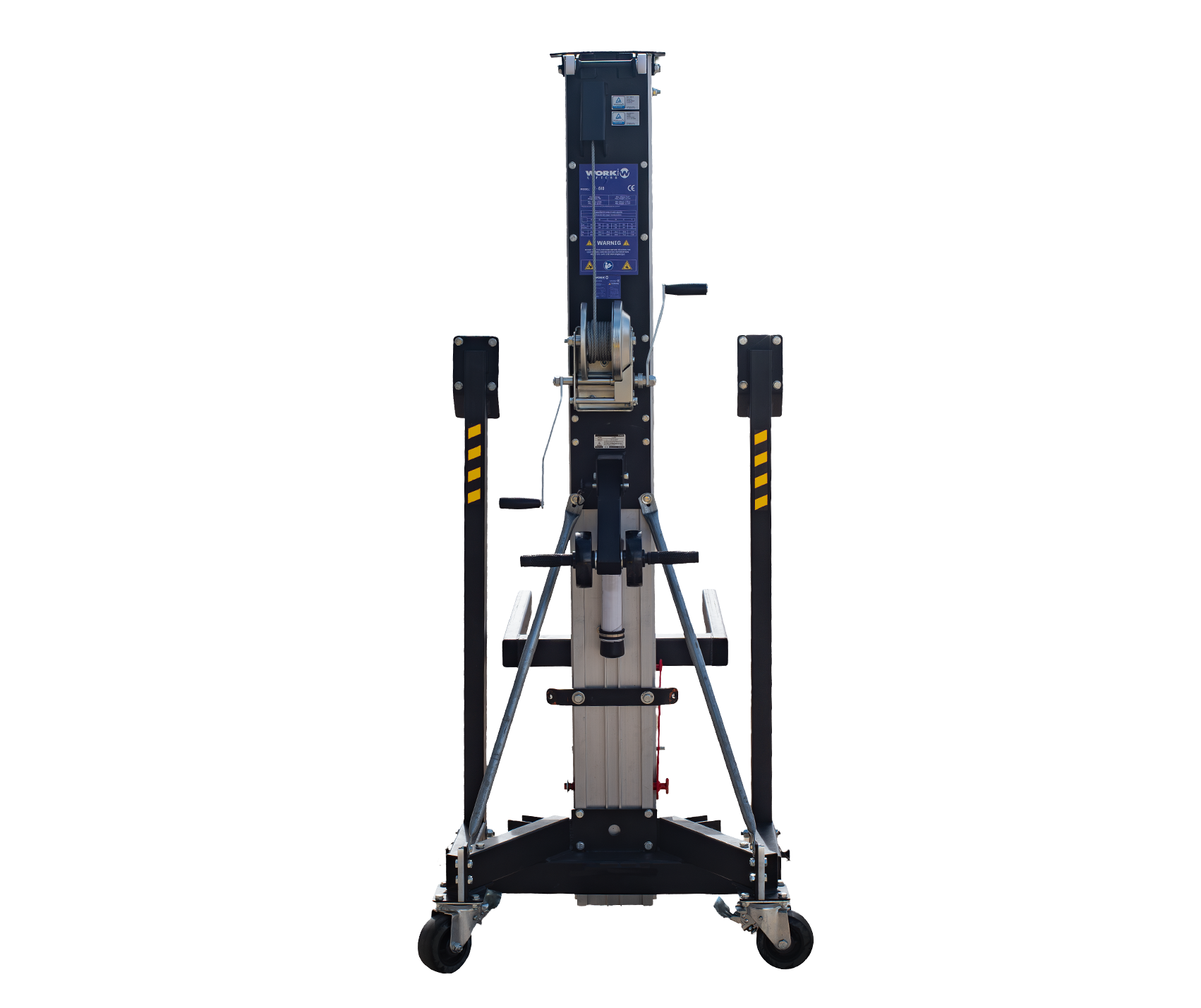

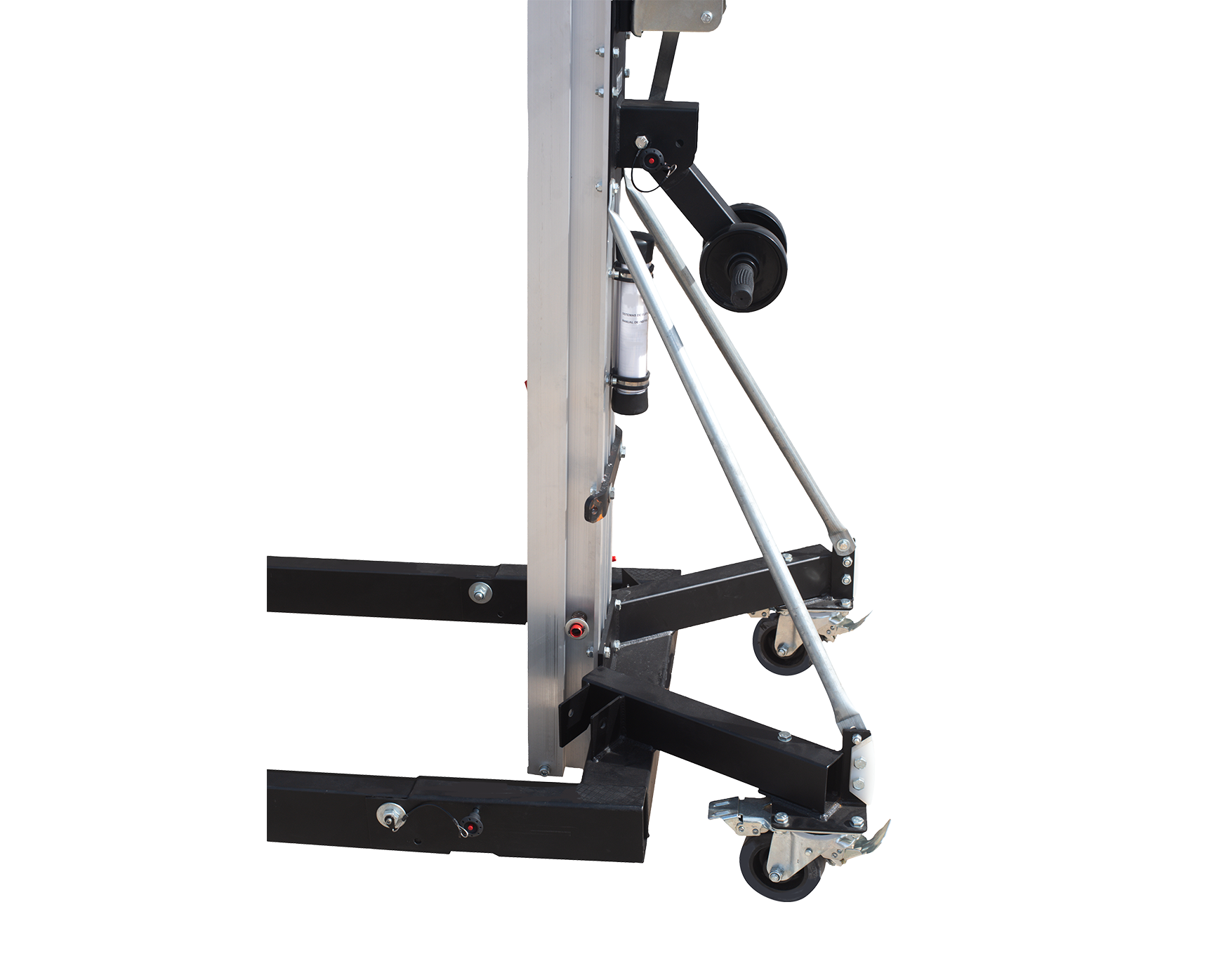

- Stabilizer Legs inserted on the front diagonal angles help with stabilization of the load

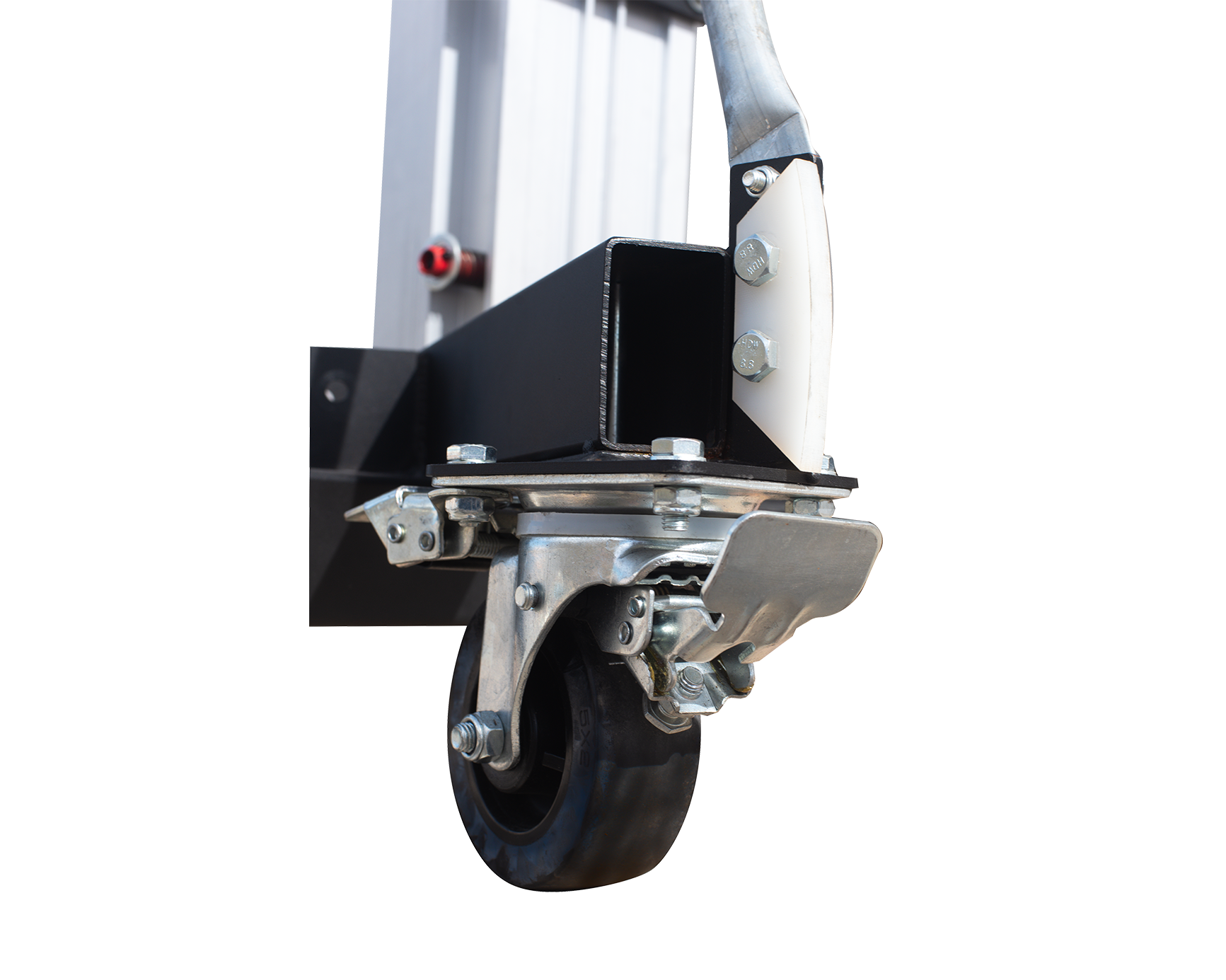

- Castors at the base and legs of the lifter.
- Dynamic Overlap system.
- Available color: Silver
- Compatible accessories: ATF08LF ( Rigging Attachment)/ Side Stabilizing Legs/ Front Fork Extension
Specifications:
| WTS Model | WTS 905 | |
| Folded height | 1.99 | m |
| 6.52 | ft | |
| Base width | 0,77 | m |
| 2.52 | ft | |

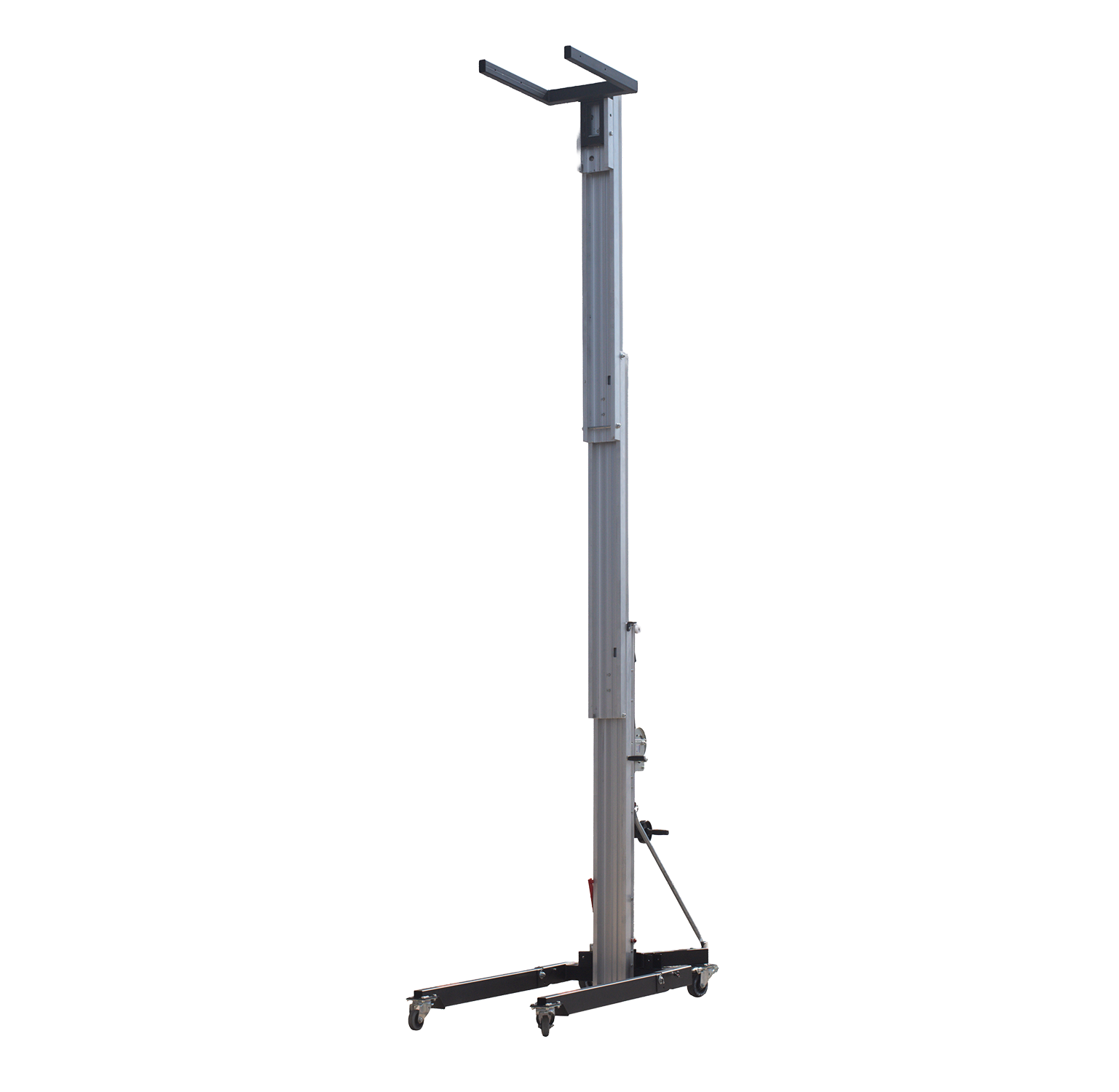

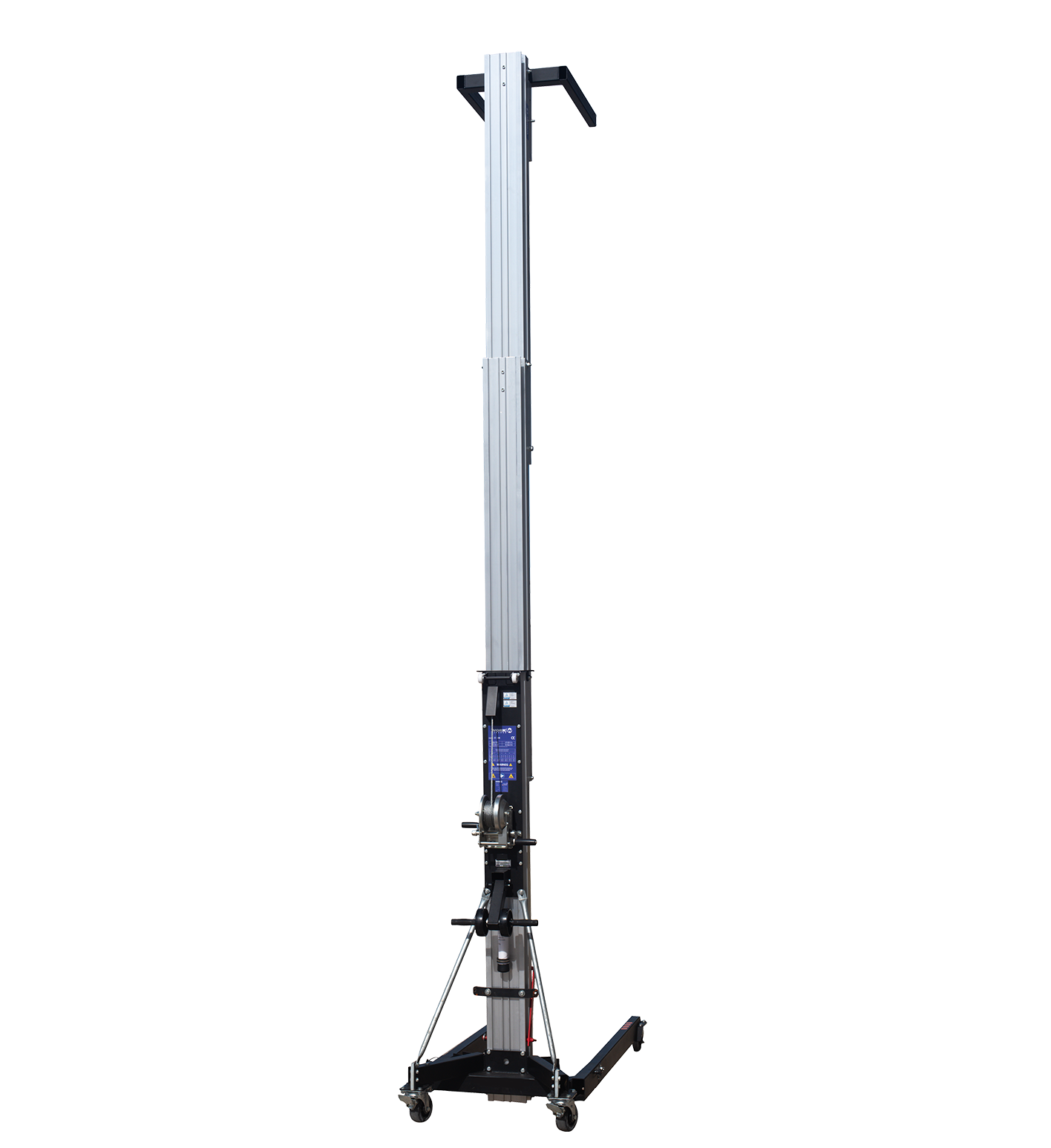

| Maximum height | 5 | m |
| 16.4 | ft | |
| Minimum fork height | m | |
| ft | ||
| Unfolded Legs Length | 1.93 | m |
| 6.33 | ft | |
| Folded Legs Length | 1.48 | m |
| 4.87 | ft | |
| m | ||
| ft | ||
| Fork length | 0,74 | m |
| 29.3 | in | |
| Number of profiles | ||
| Minimum load capacity | 25 | Kg |
| 55,12 | Lb | |
| Max.load as mechanism | 161 | Kg |
| 800 | Lb | |
| Kg | ||
| Lb | ||
| Net weight | 161 | Kg |
| 355 | Lb | |
| Winch | Kg | |
| Lb | ||
| Cable diameter | mm2 | |
| Noise emissions | dB | |
