Features:

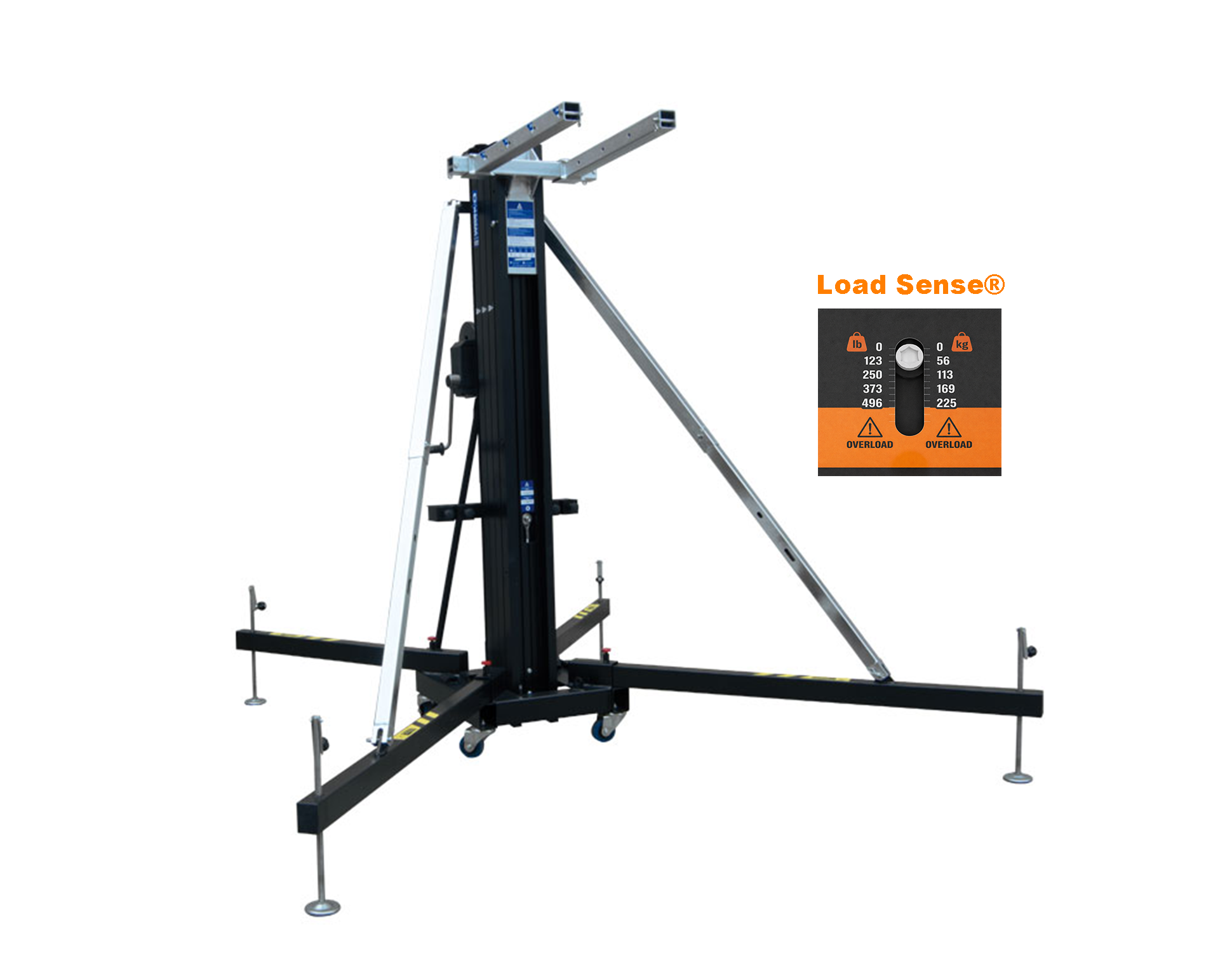

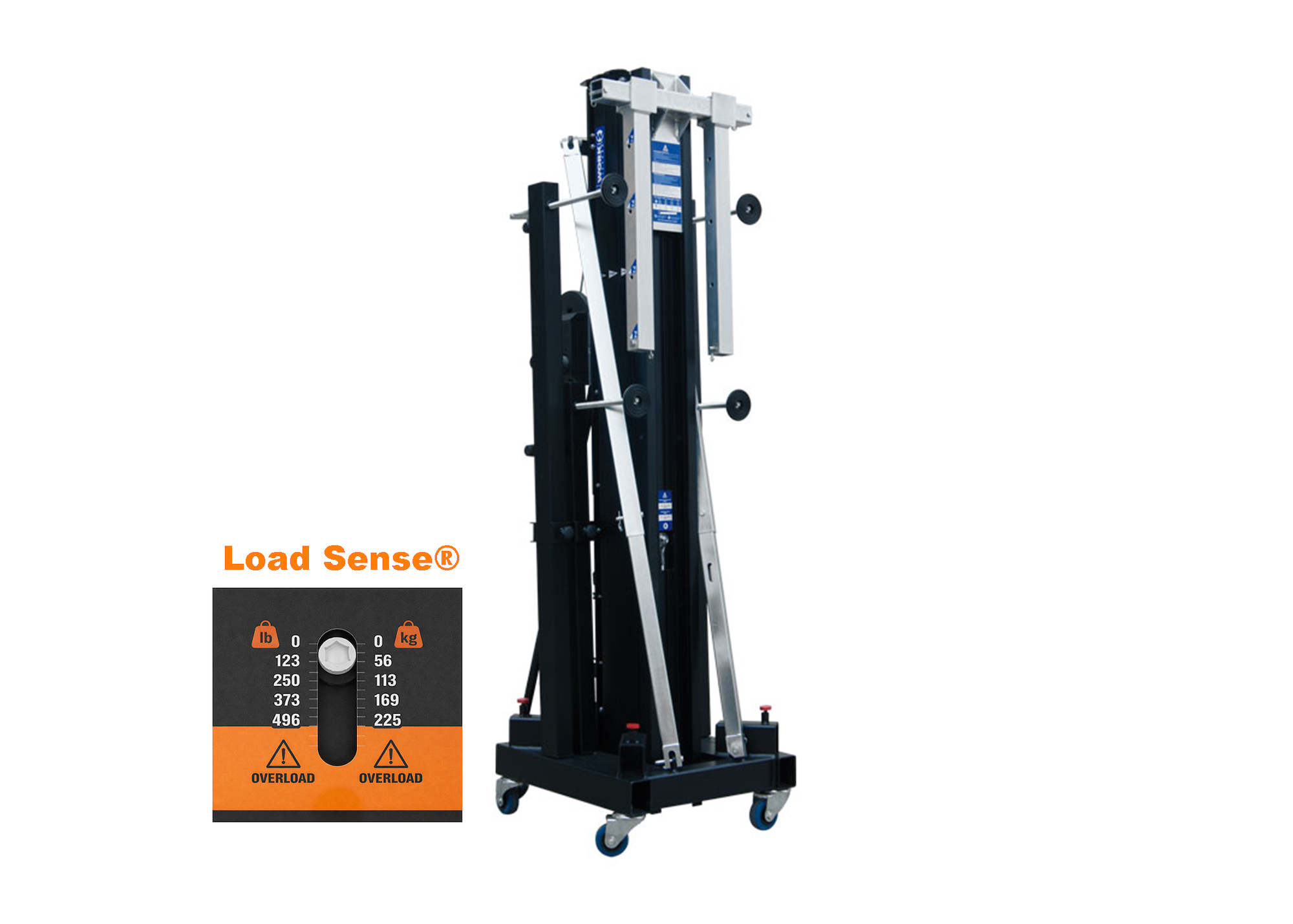

- LoadSense®: Real time load monitoring system
- Overload Zone Detection for each Loading Position on the Fork
- Modes of Operation: Mechanism Mode or Structural Mode
- Four extensible profiles made of extruded aluminum
- 4 Loading Positions on the Forks
- Reinforcing bars on the back and front of the lifter for additional reinforcement.
- Castors at the base of the lifter.
- Available color: Black.
- Compatible accessories: AWS 402, AWS 302, AWS 401.
3 Safety Patents:
- Dynamic Overlap:
is an innovative solution that increases the resistance of the towers and reduces their deflection, making that each tower section overlaps with the previous one at different distances, as with trees in nature. This means that all efforts are concentrated in the same way in all the sections of the tower. Thanks to this, the tower can withstand greater efforts with less deflection.
- Dynsys:
is a Load limitation system designed to limit the max load that the machine can lift and, at the same time, guarantee the “health” and good operation of the tower, since it accomplishes many functions, all focused on maximizing user safety. Each Dynsys system is adjusted to control the torque that is applied on the winch and, when this is exceeded (for ex. due to an excess of load, problem of friction of some piece in bad condition, etc) the system acts and does not allow to continue the lifting process. Dynsys has been designed to comply with the DIN 56950 standard.
- Wire Drive:
is a new and important feature developed to help prevent undesired and dangerous cable crosses in the drum of the winch, making easier the roll up/unroll process. The WireDrive system is responsable for directing the cable across the winch drum, increasing the useful life of the cable. Furthermore, WireDrive is a multidirectional grooved pulley that reduces the wire fleet angle between the winch drum and its entry to the first mast. The DIN 56950 standard states that the fleet angle has to be less than 4 degrees, which is achieved with WireDrive.
Specifications:
| WTS Model | WTS 506 | |
| Folded height | 1,93 | m |
| 6,33 | ft | |
| Base width | 0,58 | m |
| 1,90 | ft | |
| Base length | 0,52 | m |
| 1,71 | ft | |
| Maximum height | 6,08 | m |
| 19,95 | ft | |
| Minimum fork height | 0,70 | m |
| 2,29 | ft | |
| Unfolded diameter | 2,71 | m |
| 8,89 | ft | |
| Frontal side width | 2,11 | m |
| 6,92 | ft | |
| Rear side width | 1,55 | m |
| 5,09 | ft | |
| Fork length | 0,61 | m |
| 2,00 | ft | |
| Number of profiles | 4 | |
| Minimum load capacity | 25 | Kg |
| 55,12 | Lb | |
| Max.load as mechanism | 510 | Kg |
| 1124,36 | Lb | |
| Max. load as structure | 510 | Kg |
| 1124,36 | Lb | |
| Net weight | 150 | Kg |
| 330,7 | Lb | |
| Winch | 900 | Kg |
| 1984,2 | Lb | |
| Cable diameter | 6 | mm2 |
| Noise emissions | 71 | dB |
