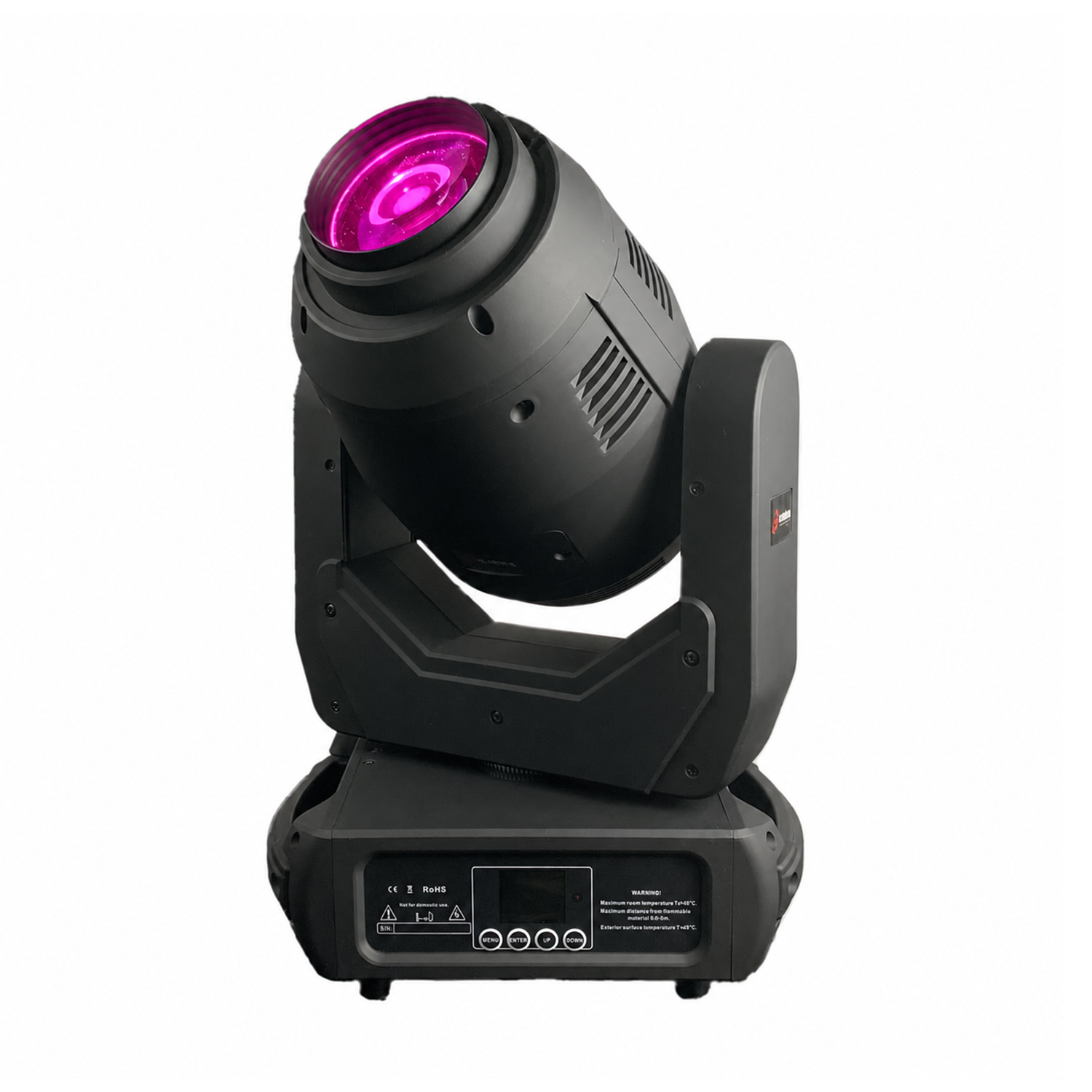

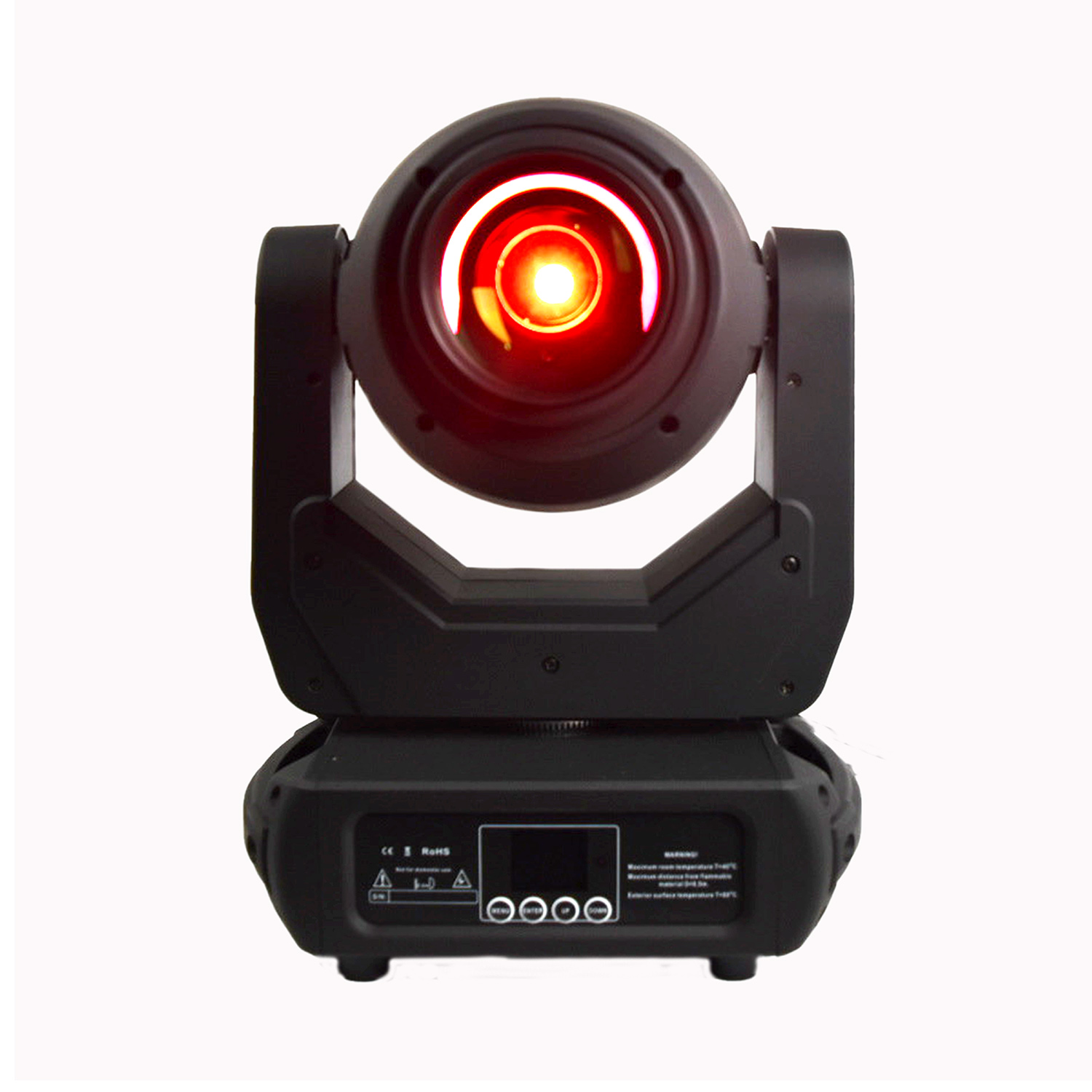

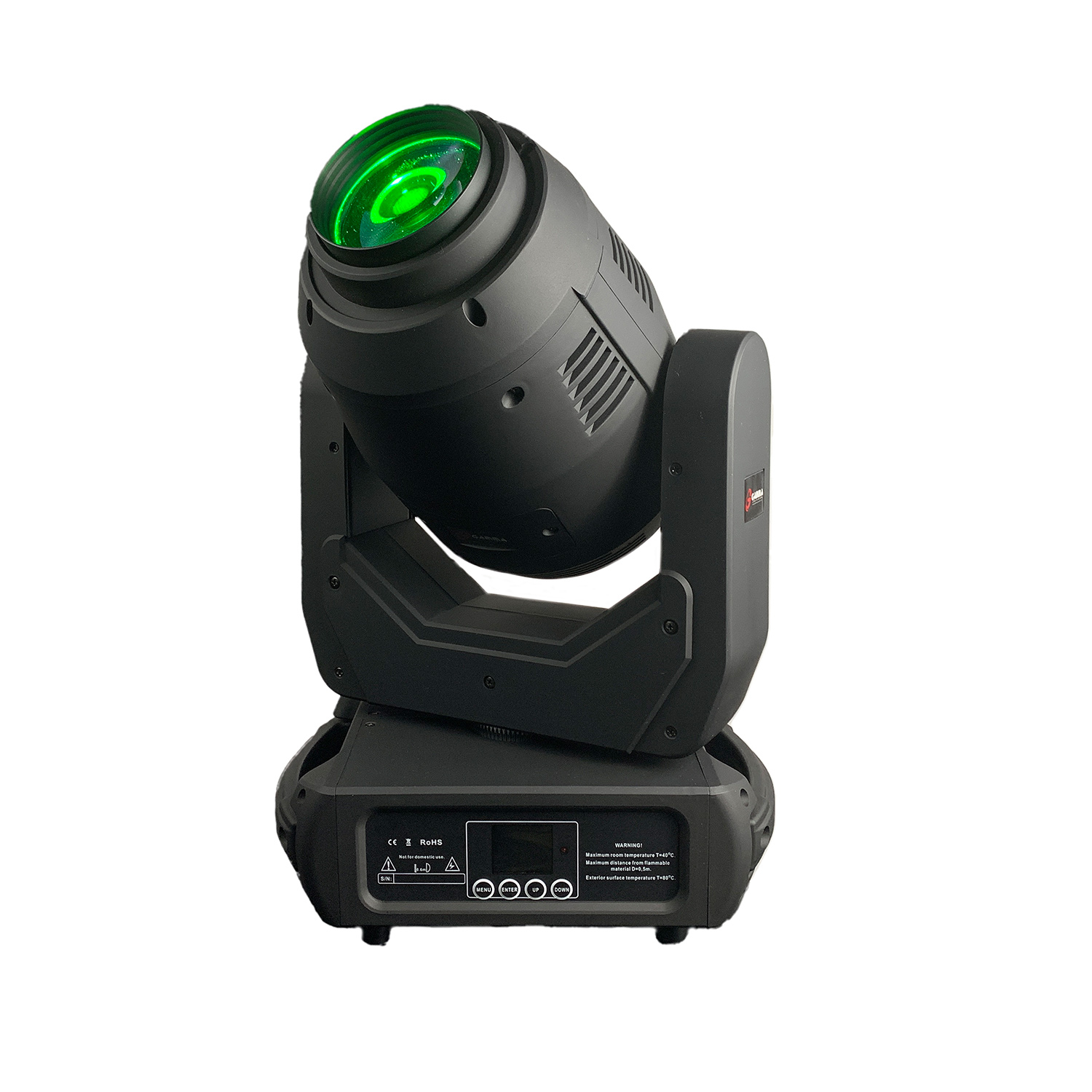

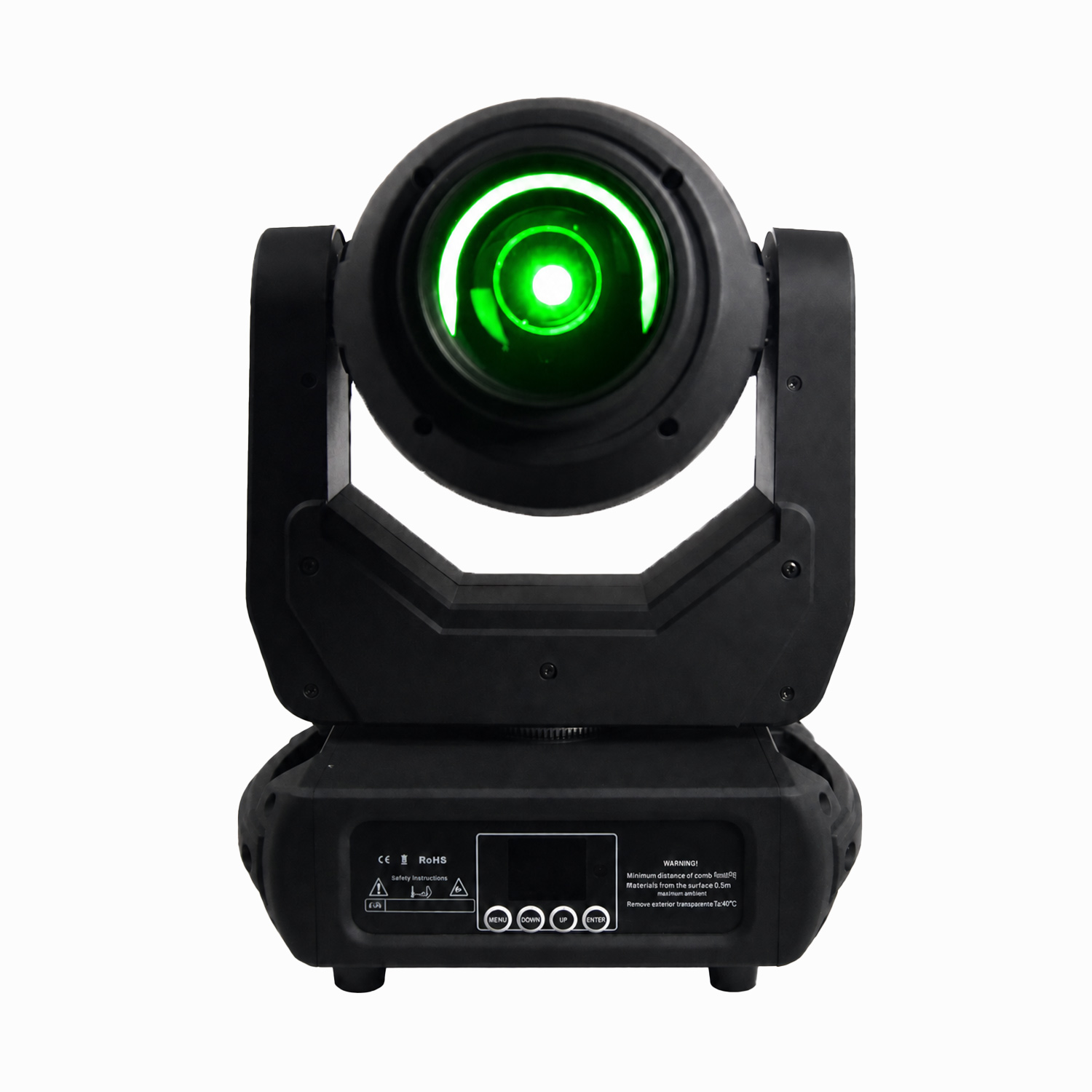

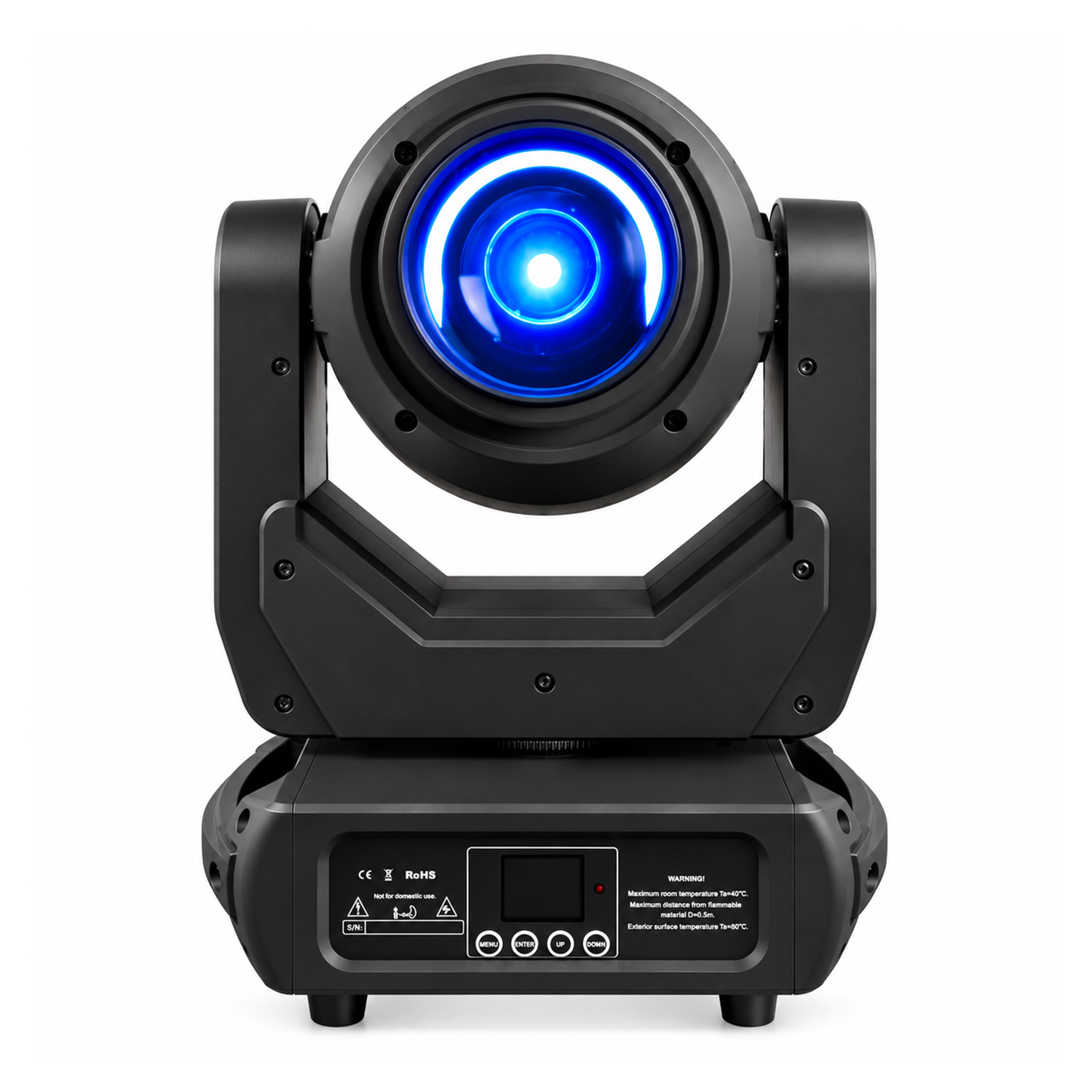

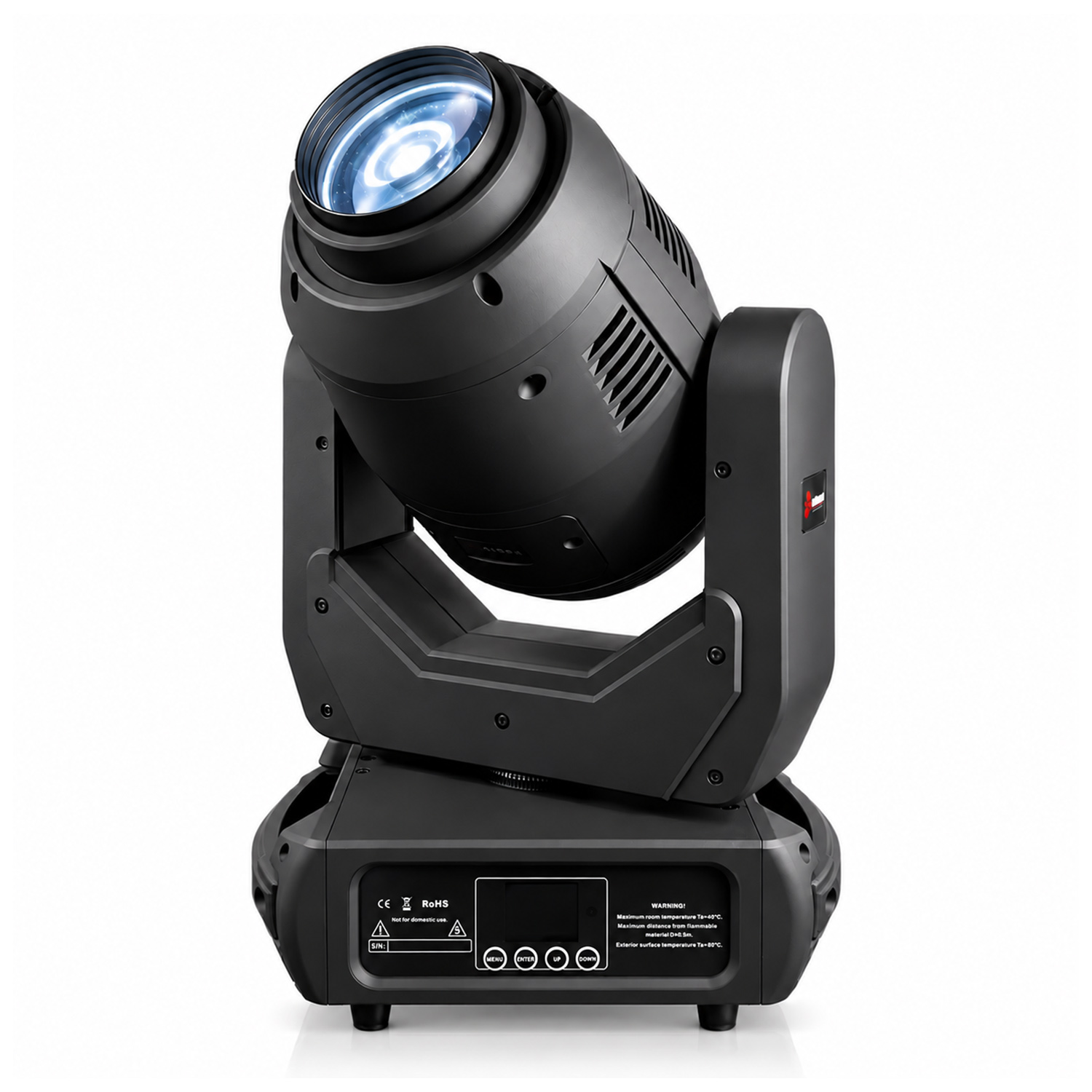

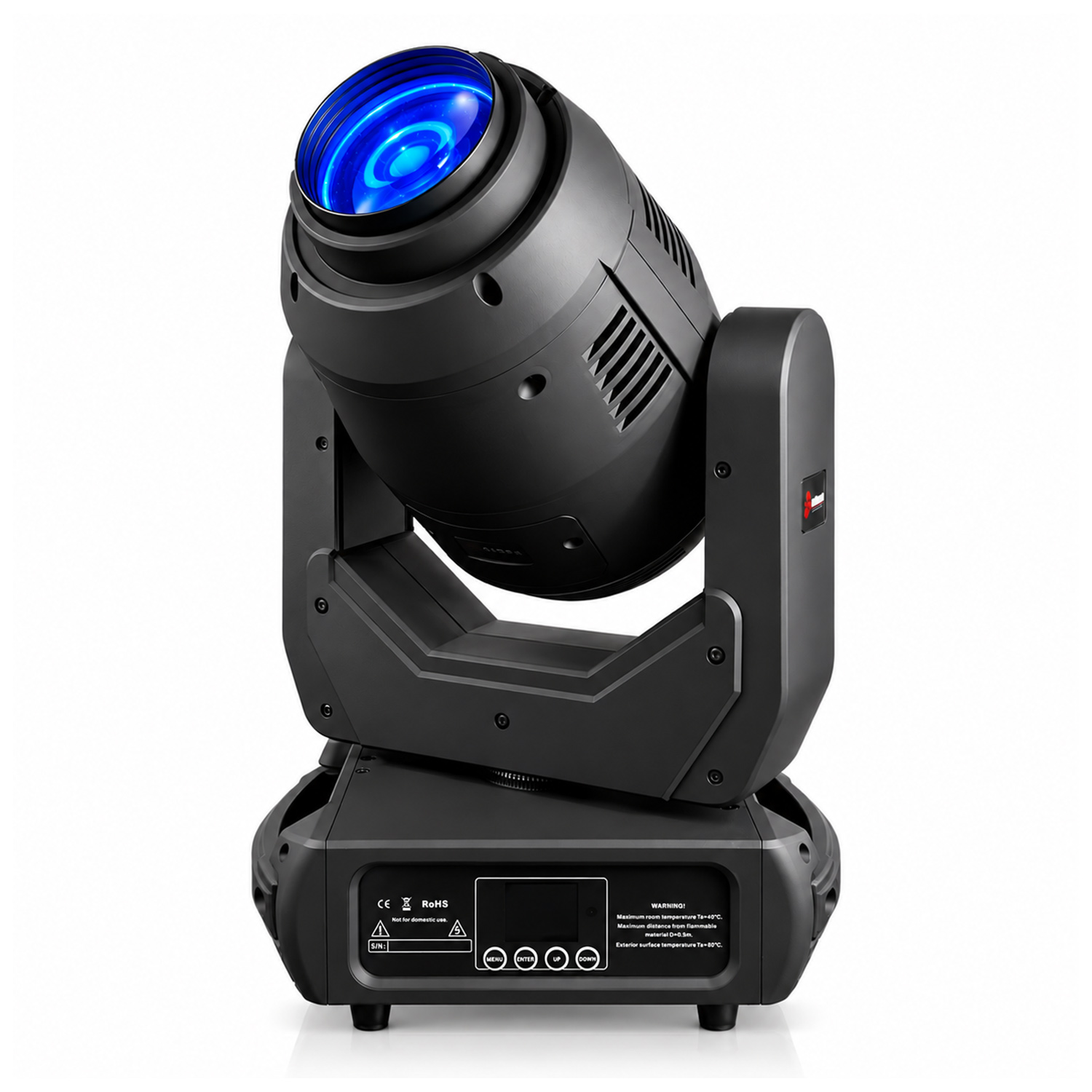

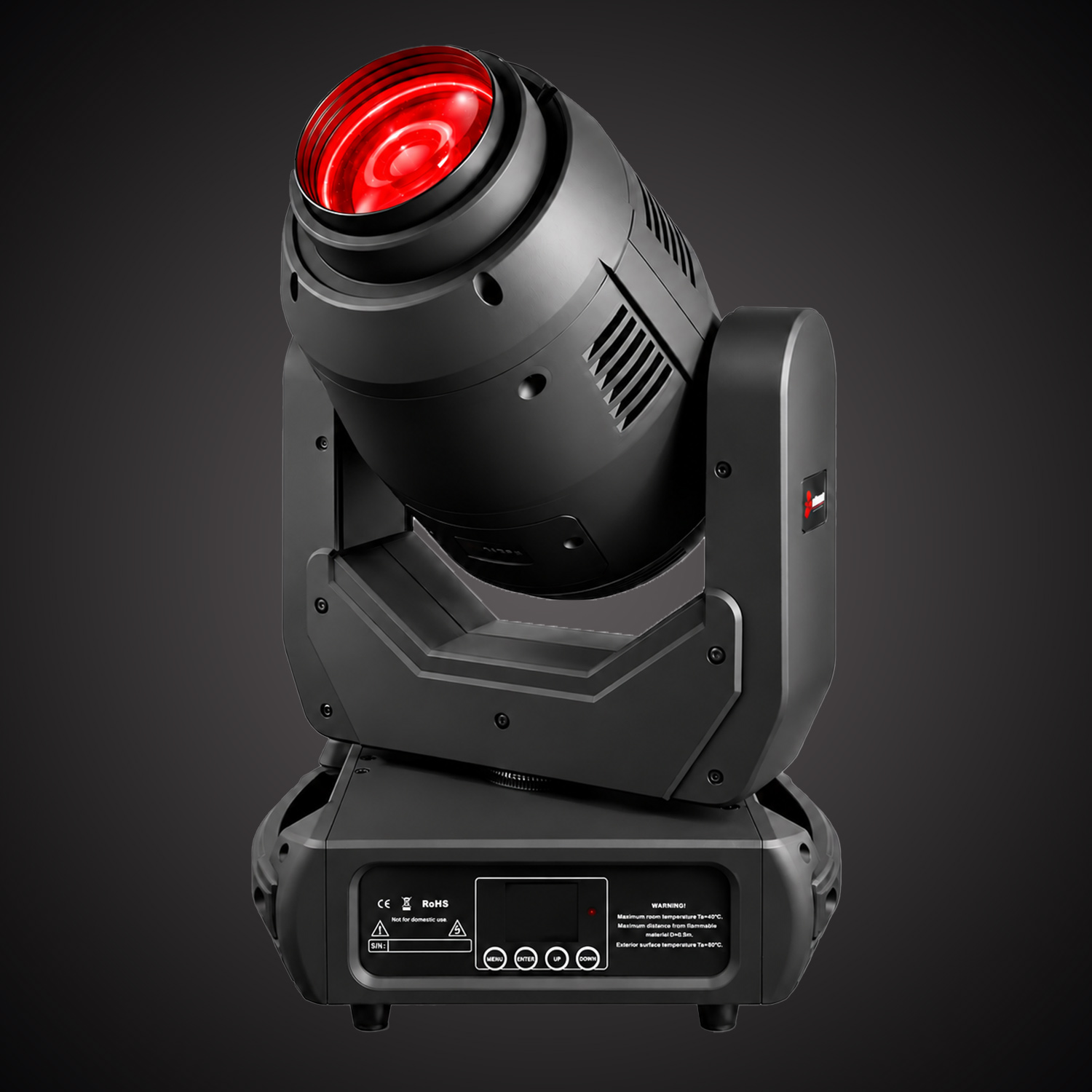

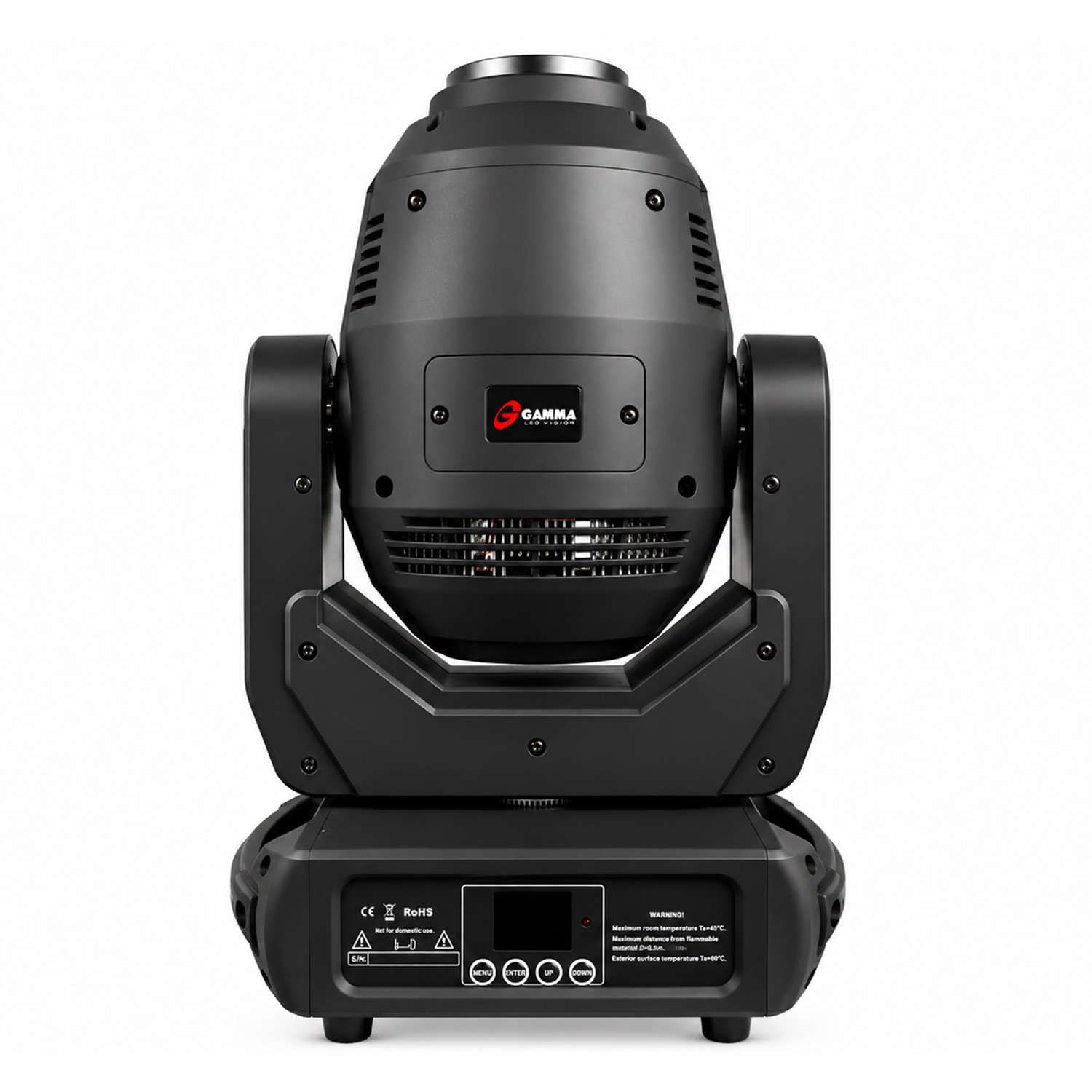

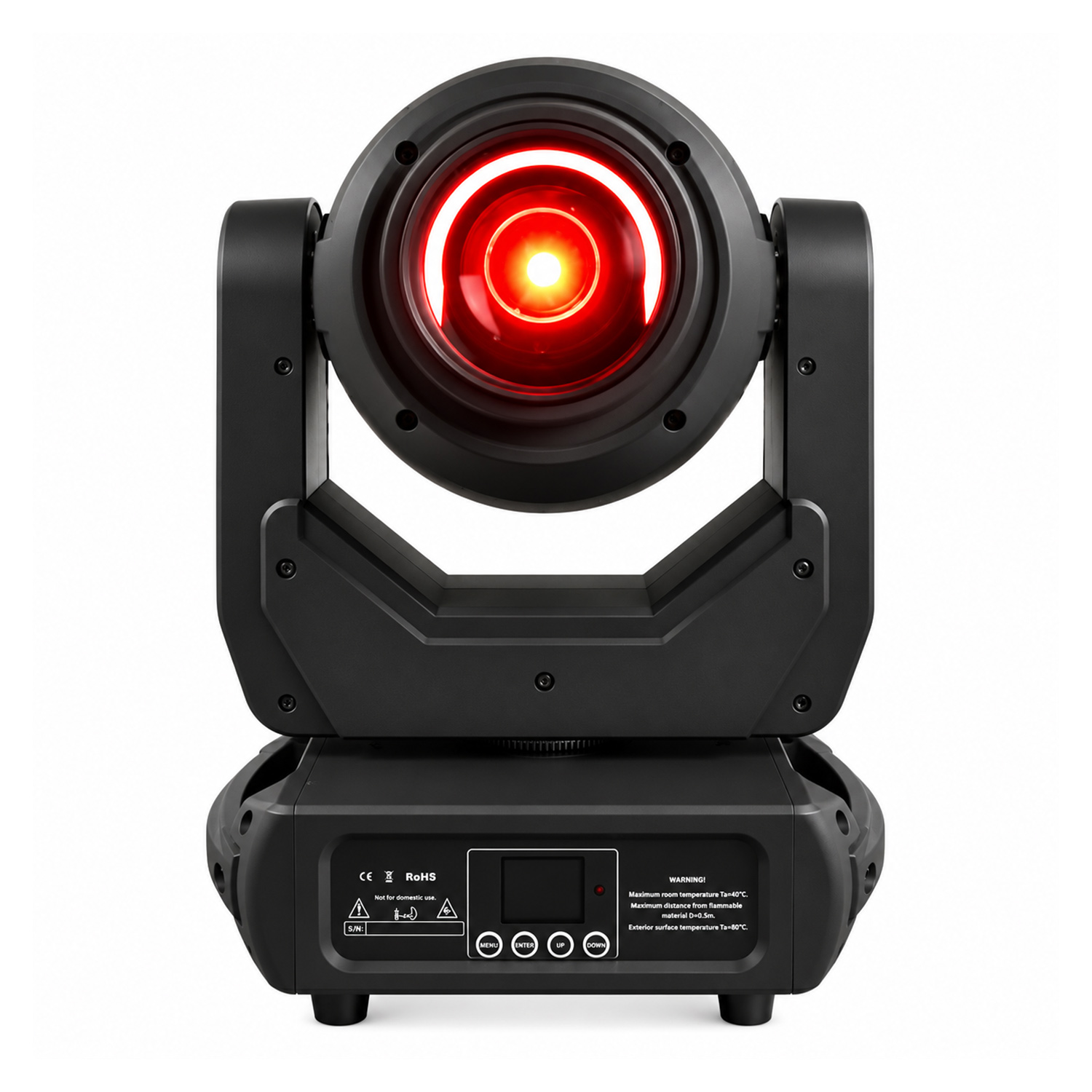

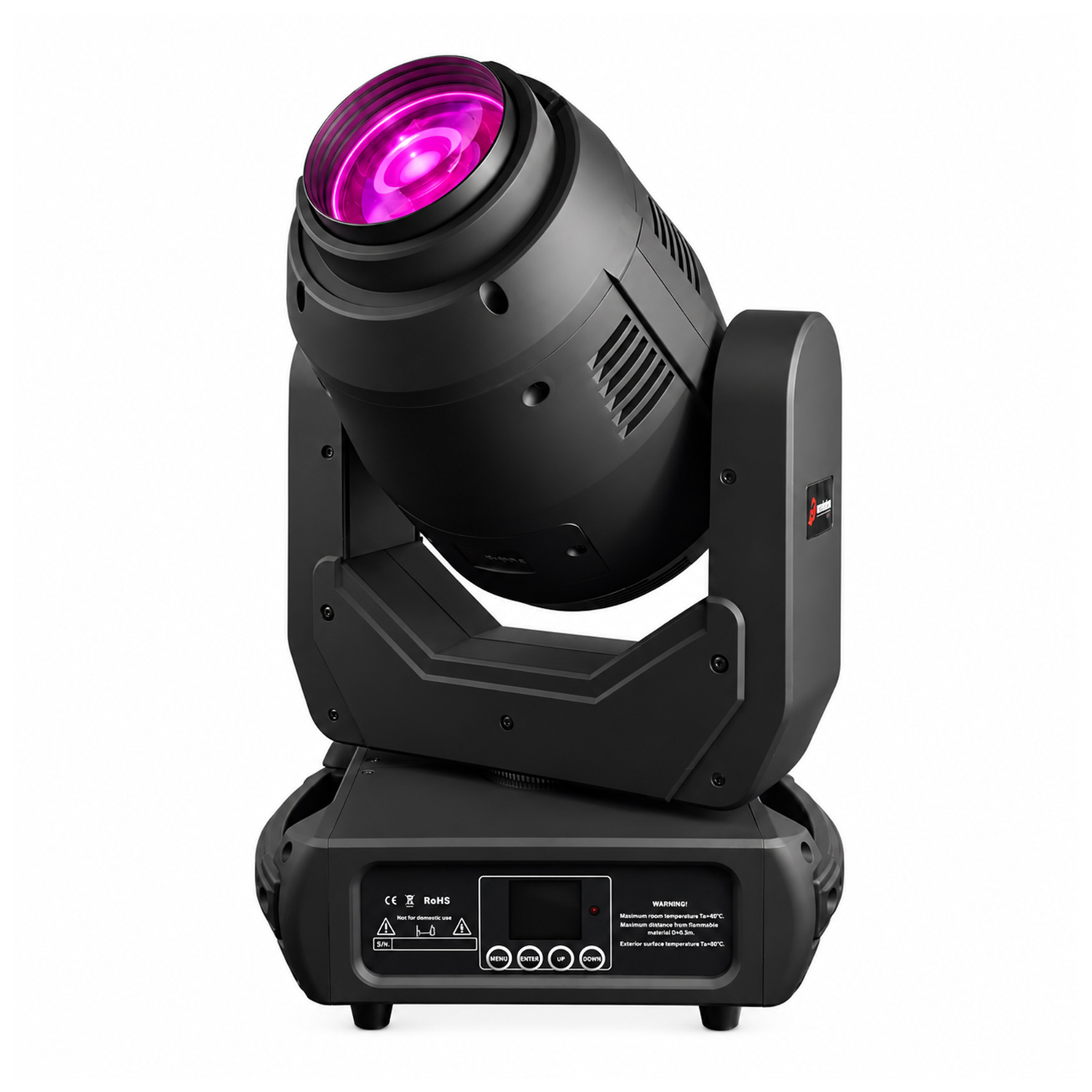

TX-5 250 Z (Spot)
The TX-5 250 Z is a blend of power & versatility. Integrated with a 250 watt high output white LED, a motorized zoom range from 5º – 30º, and a color wheel that contains 7 colors + white. Create a variety of looks as this fixture allows for a narrow 5º to a wider 30º beam angle. Additionally it is equipped with 1 static wheel (8 gobos + rotation) and 1 rotational gobo wheel (7 gobos + wheel rotation) along with a 8-facet prism. All of these features can allow a user to create a variety of dynamic effects which make it ideal for any size venue.
Loading...
Light Source:
- LED Power: 250w High Output LED
- LED Color Wheel: 7 colors + white
- Beam Angle: 5.5º – 30º
- Dimming: 0-100% 16 bit
- Flicker Free Technology: No flickering during filming or video
- 50,000 hours LED lifetime
- 13,300 LUX@5m White light zoomed in
- 950 LUX@5m White light zoomed out
- Strobe: 1-20 times/sec
Effects:
- 1 Static Gobo Wheel: 8 Gobos + white, Wheel Rotation & Shake
- 1 Rotational Gobo Wheel: 7 Gobos + white, Wheel Rotation & Shake
- Prism: 8-Facet Prism, Bi-Directionally Rotatable at variable speeds, Frost effect
- Strobe: High Speed Strobe Effect 1-25 flashes per second
- Color Output: Linear Color System
- Pan & Tilt: 540º/ 250º
- Focus: Motorized
Housing:
- Internal Housing: Die-casting Aluminum
- External Housing: High Temperature Strength Plastic
- Display: 4 Button Menu
- DMX: 3-Pin DMX input & output
- PowerCon™: Input & output
Electrical:
- Voltage: AC100-240V
- Max Power: 350w
Control:
- Control Protocol: DMX 512/ 3-pin interfaces
- Control Modes: DMX, Auto run, Master/Slave, and Sound
- DMX Channels: 16 CH, 18 CH
Working Environment:
- Cooling System: Efficient Low Fan Cooling System
- IP Grade: IP-20
Dimensions:
- Dimensions: 12.6 x 8.6 x 18.8” in/ 36 lbs
User Manual
Photometrics
Controller Profiles
- Lightshark: “TX_5Spt” (16/18 Channels)
- Onyx: “TX5 Hybrid” (16/18 Channels)
- Grand MA: “gamma@tx5_hybrid” (16/18 Channels)
- Hog 4: “Tx5 Hybrid” (16/18 Channels)
- Chamsys: “TX5 Hybrid Zoom” (16/18 Channels)
- Jands Vista: “TX5 Hybrid” (16/18 Channels)
- LightKey: “TX5 HYBRID” (16/18 Channels)
