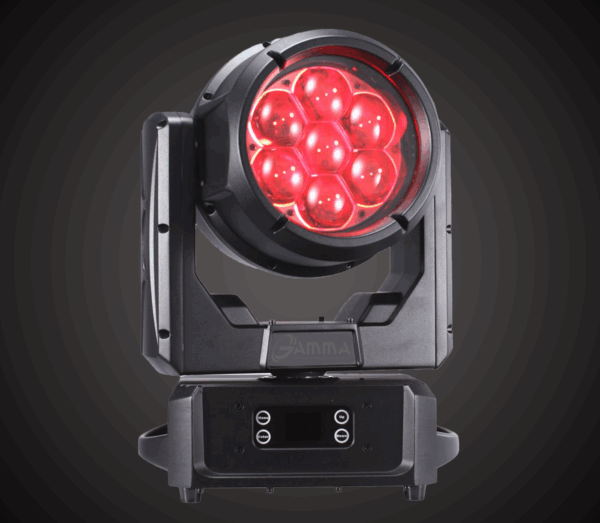

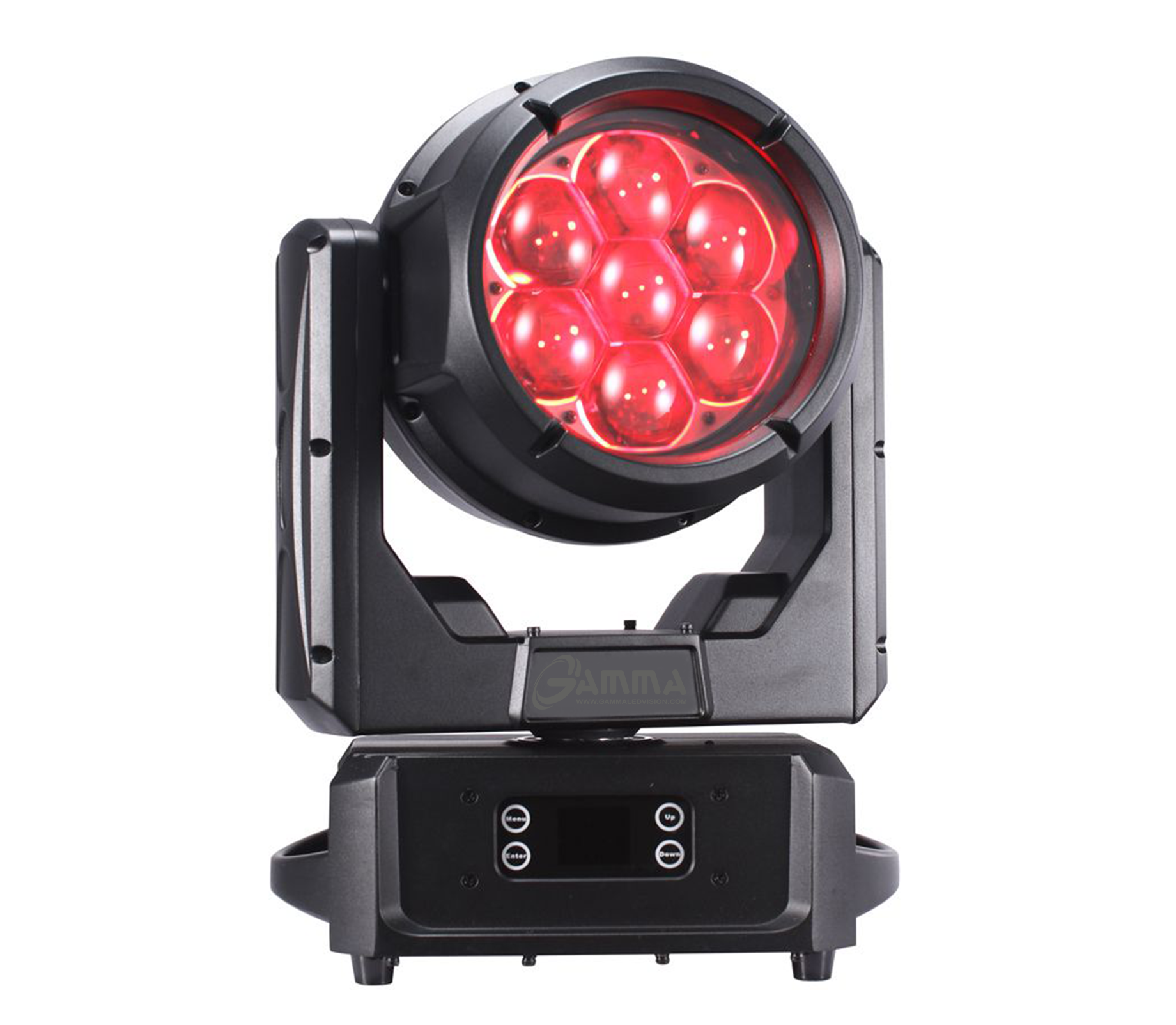

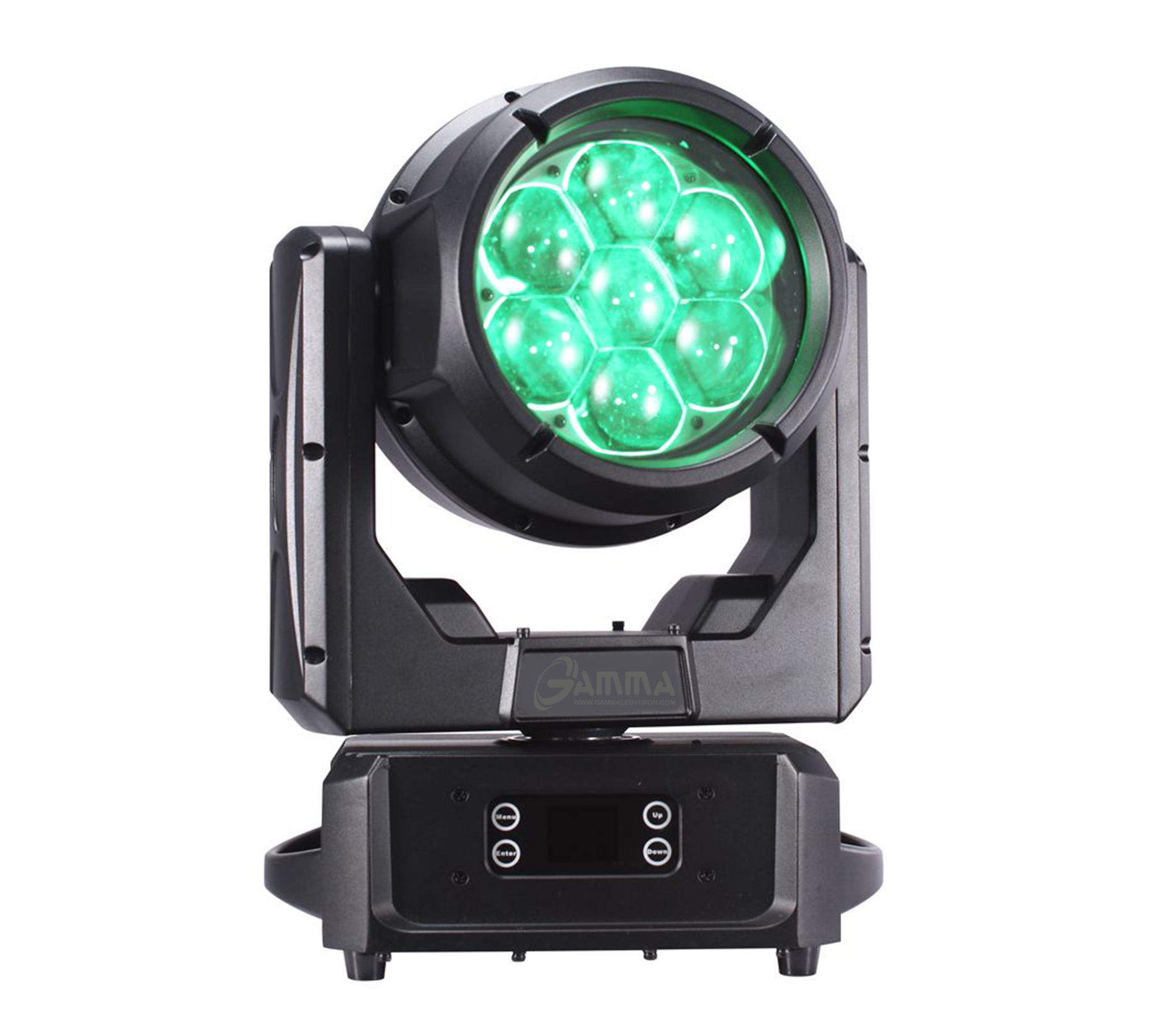

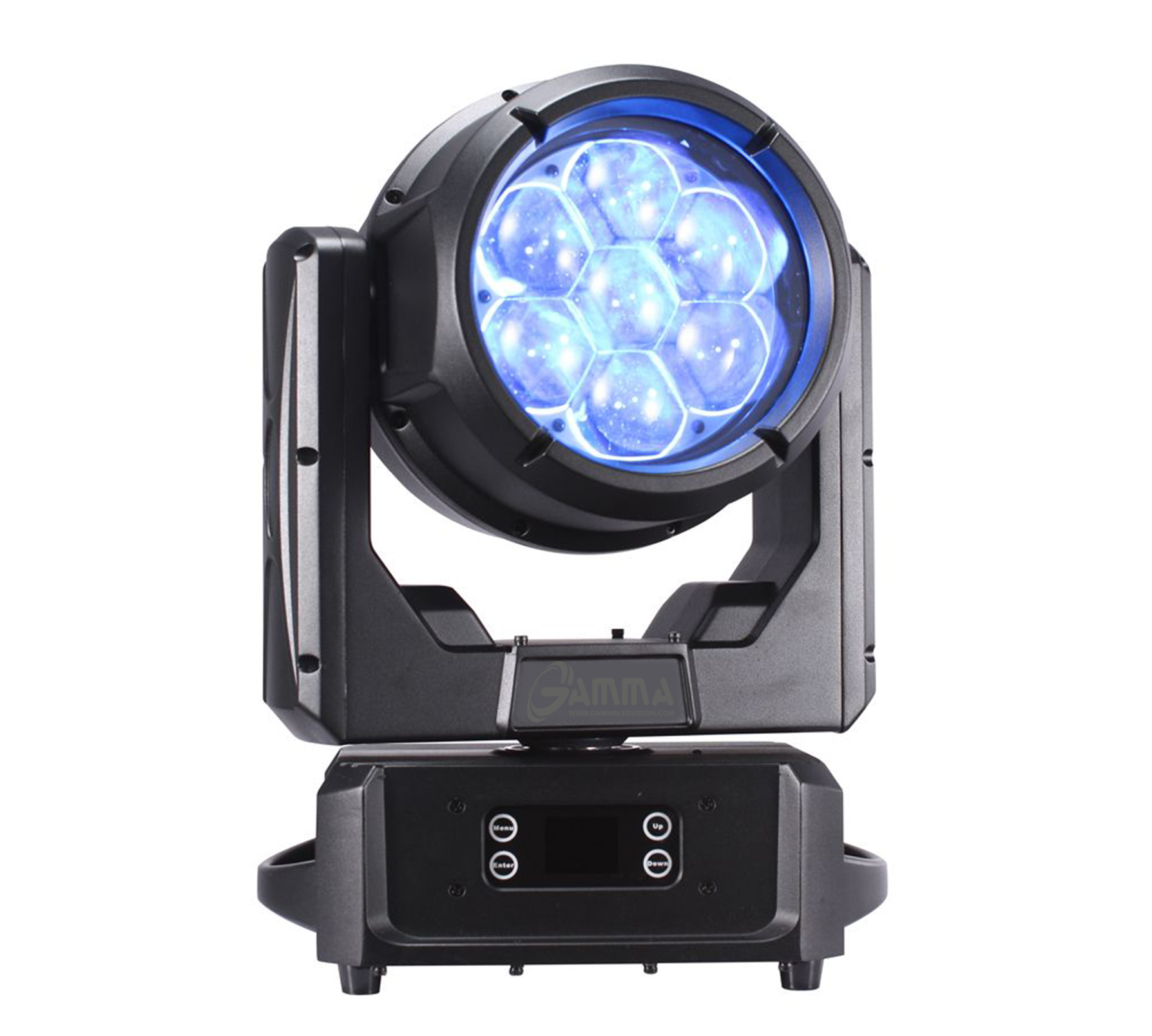

Tidal Wash Z IP

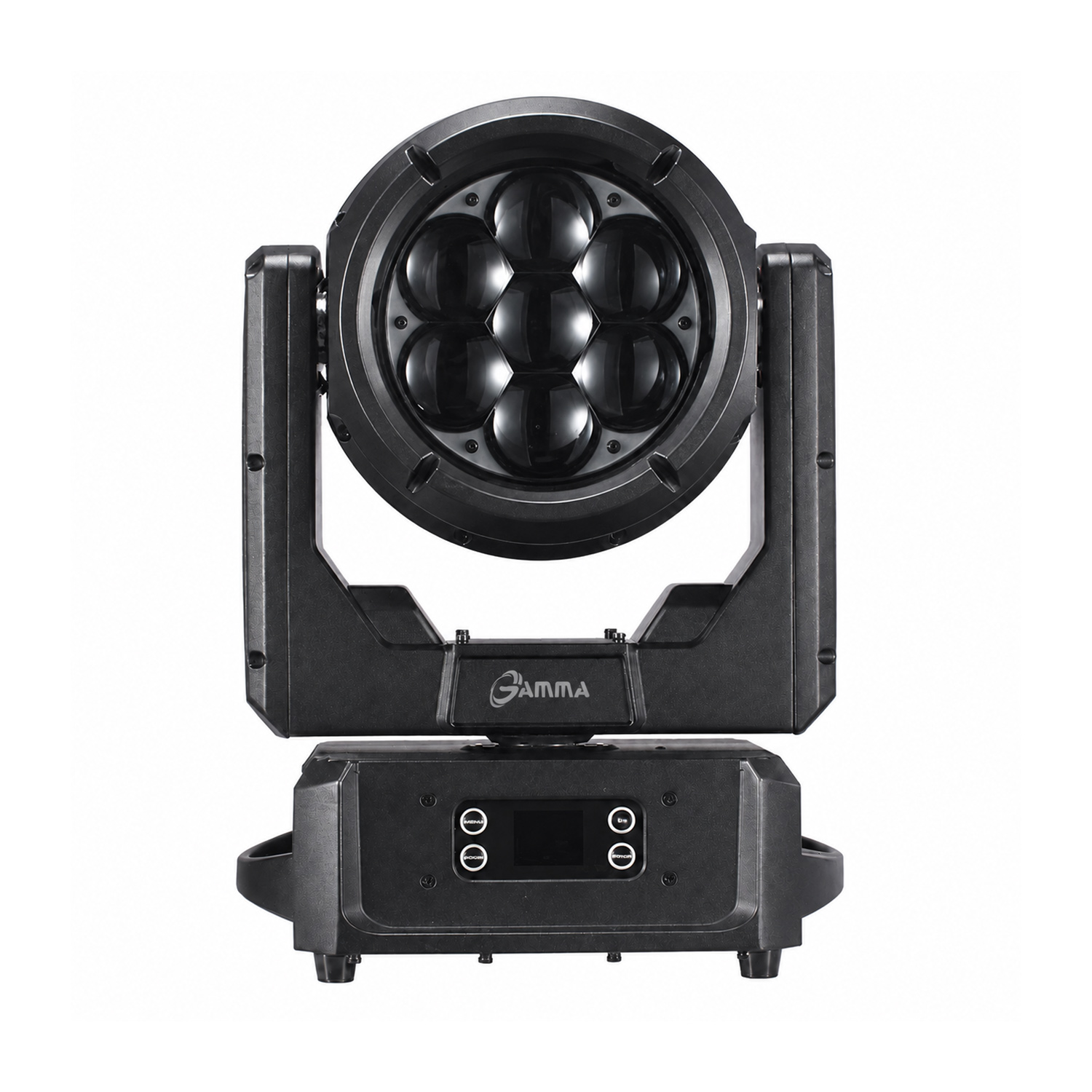

The Tidal Wash Z IP is an exciting addition to the Gamma LED Vision line. This is an IP-65 (Outdoor Rated) 7 x 60 watt LED moving head that is meant to withstand the environmental factors due to its rugged and durable housing. What makes this fixture unique is it’s zoom range of 3º – 45º  combined with its powerful 500w max powered LED engine. This means no lamp changes due to its 20,000 hour LED lifespan. Unlike other IP-65 moving heads which can be big and heavy, the Tidal Wash Z IP is compact in size and weighs only about 26.5 lbs. Equipped with an array of features such as pixel mapping capabilities, this will enhance any outdoor events even further while never having to worry about adding a dome or covering to protect it. This is a must have for any production/integration company that work with many outdoor venue’s.

Loading...

Features:

  • LED: 7X60 watt LED’s

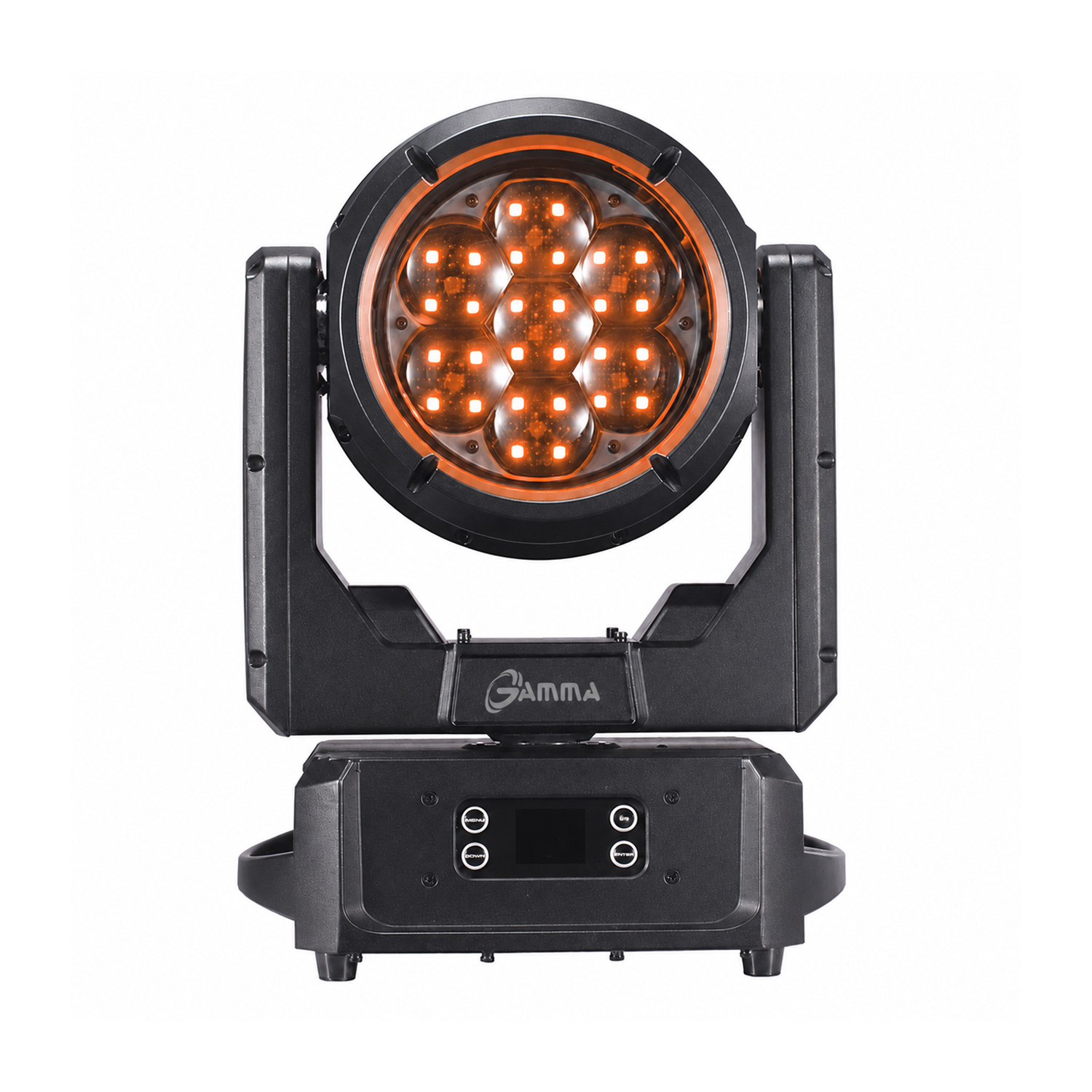

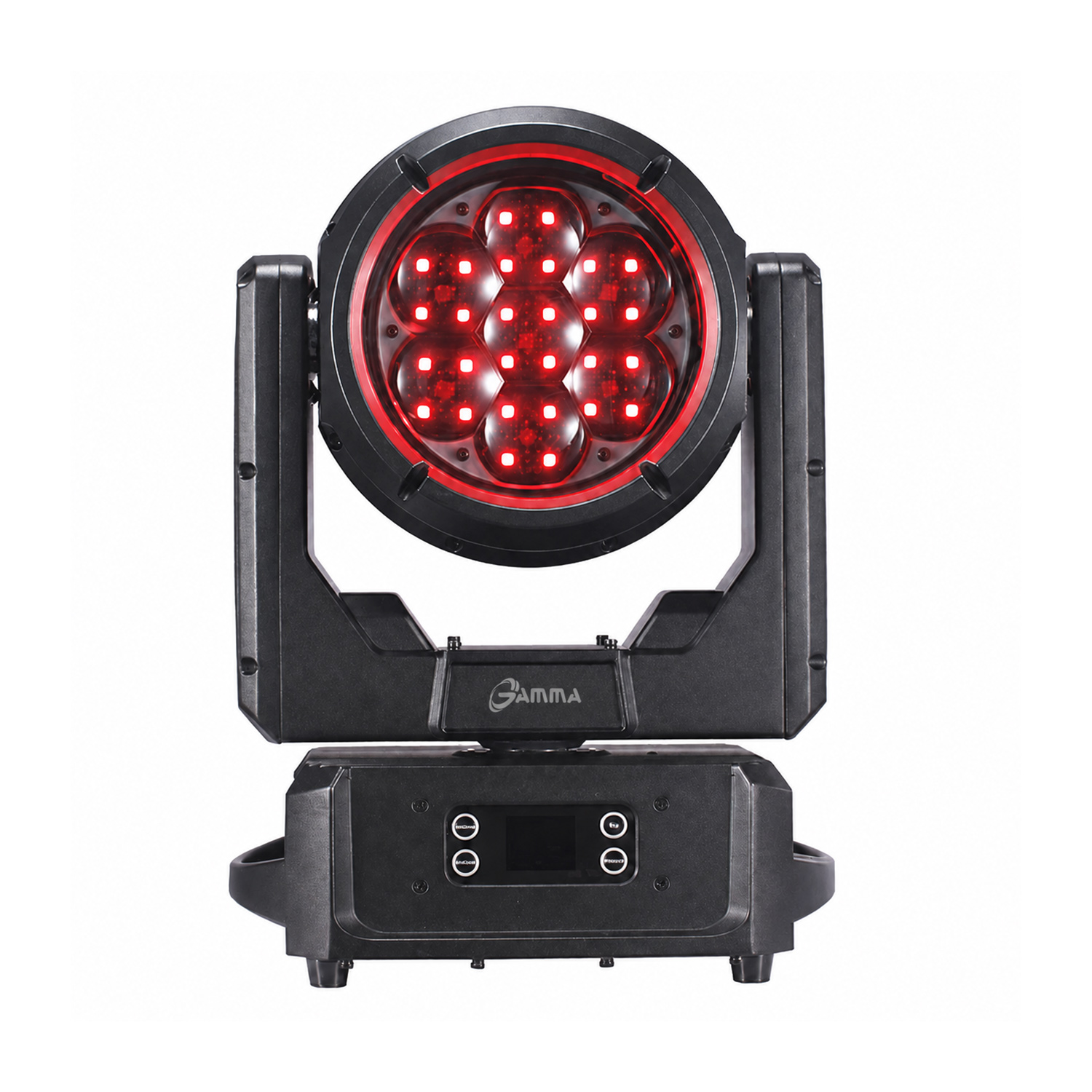

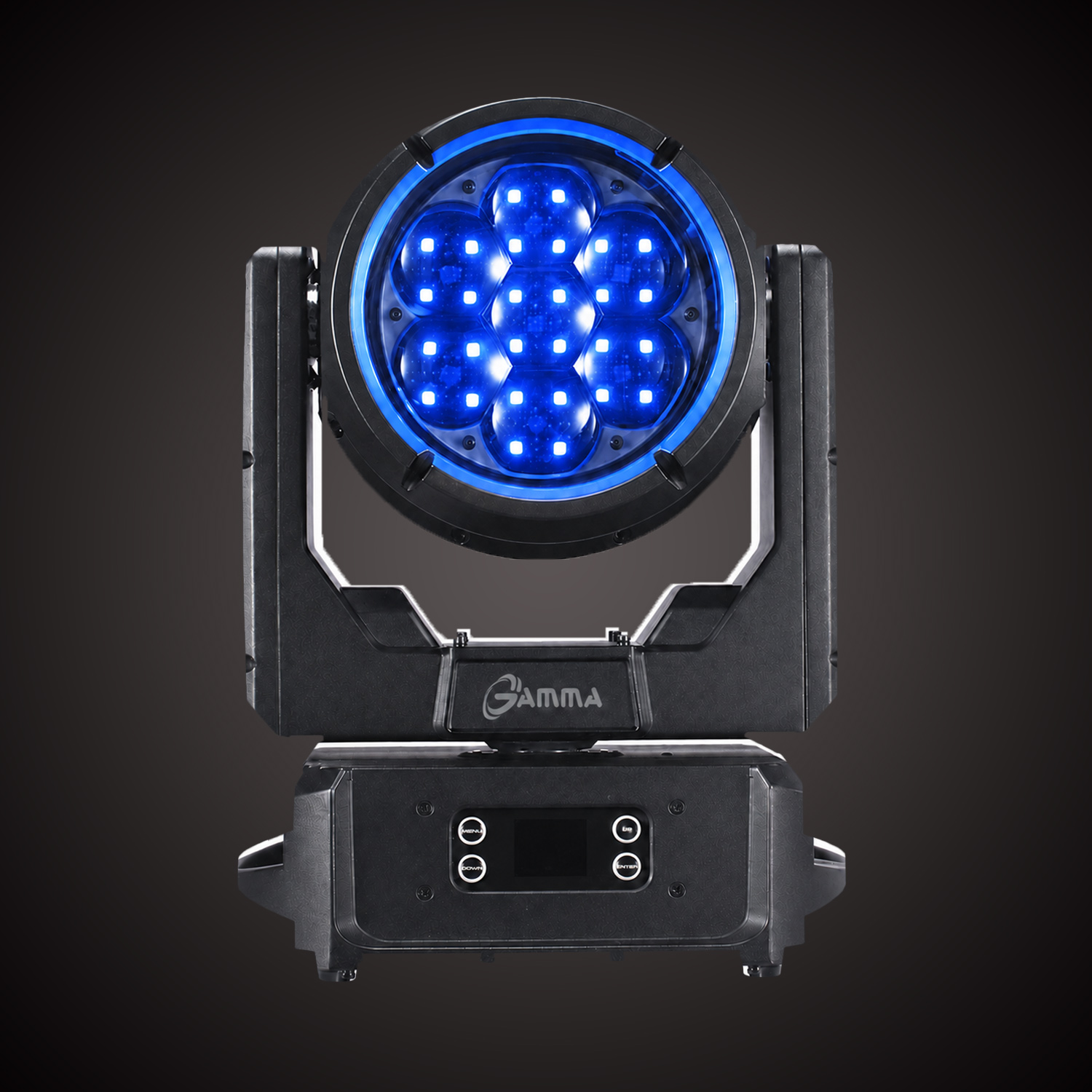

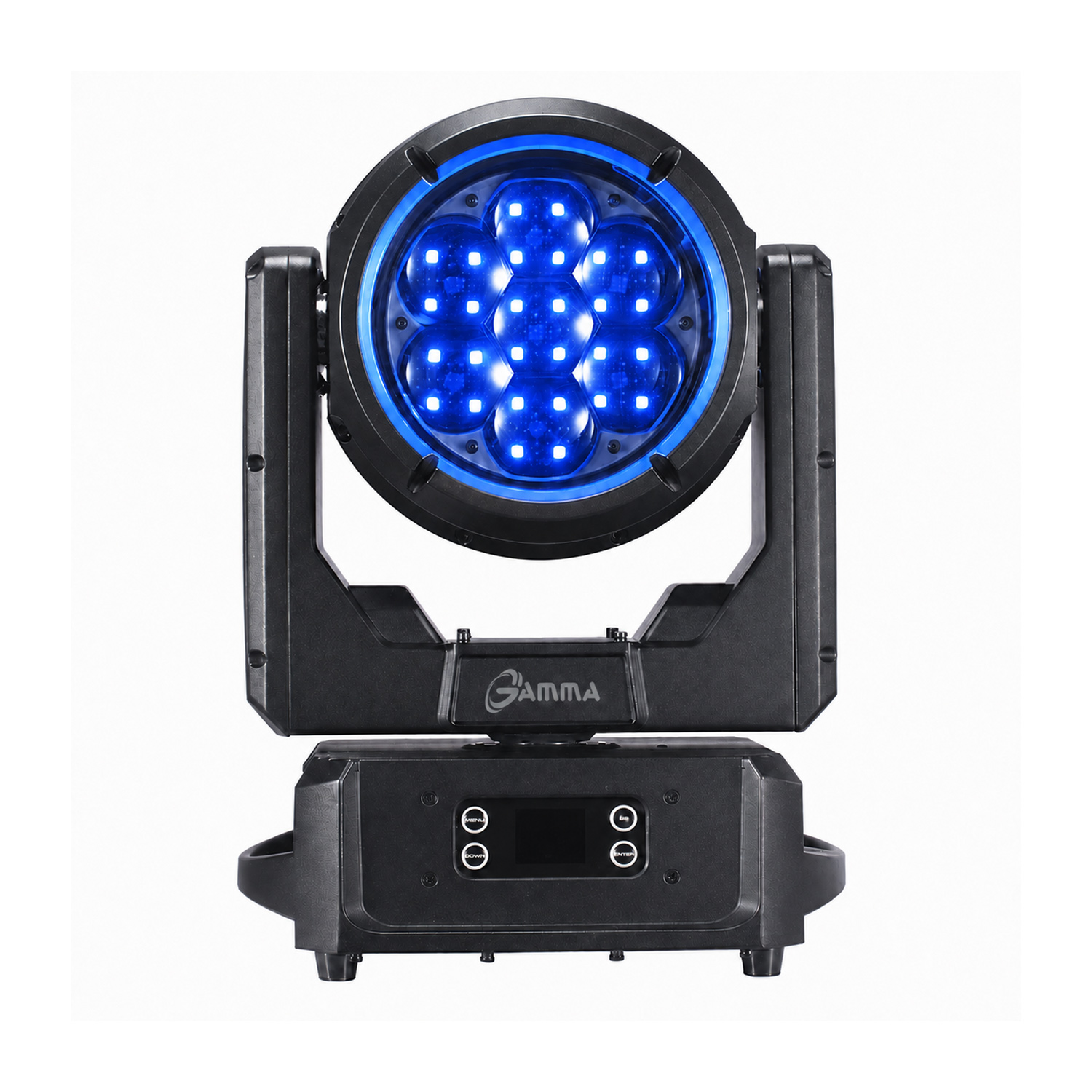

  • Color Mixing: RGBW color mixing
  • (28) 0.5w Backlight RGB LED’s
  • Pixel Mapping: Individual control of each LED
  • 2,700 – 8,000k
  • 540 Degree Pan, 220 Degree Tilt
  • Variable Speed Temperature Controlled Fan Cooling
  • LED Lifetime: 20,000 Hour average

Power supply:

  • Voltage: AC100-240V
  • Max Power: 700w High Output LED

Optics:

  • Zoom Range: 3º – 45º
  • Lens Rotation: Variable speed control
  • Dimming: 0-100% 16 bit
  • Strobe: Variable speed strobe

Physical Features:

  • External Housing: IP-65 Outdoor Rated

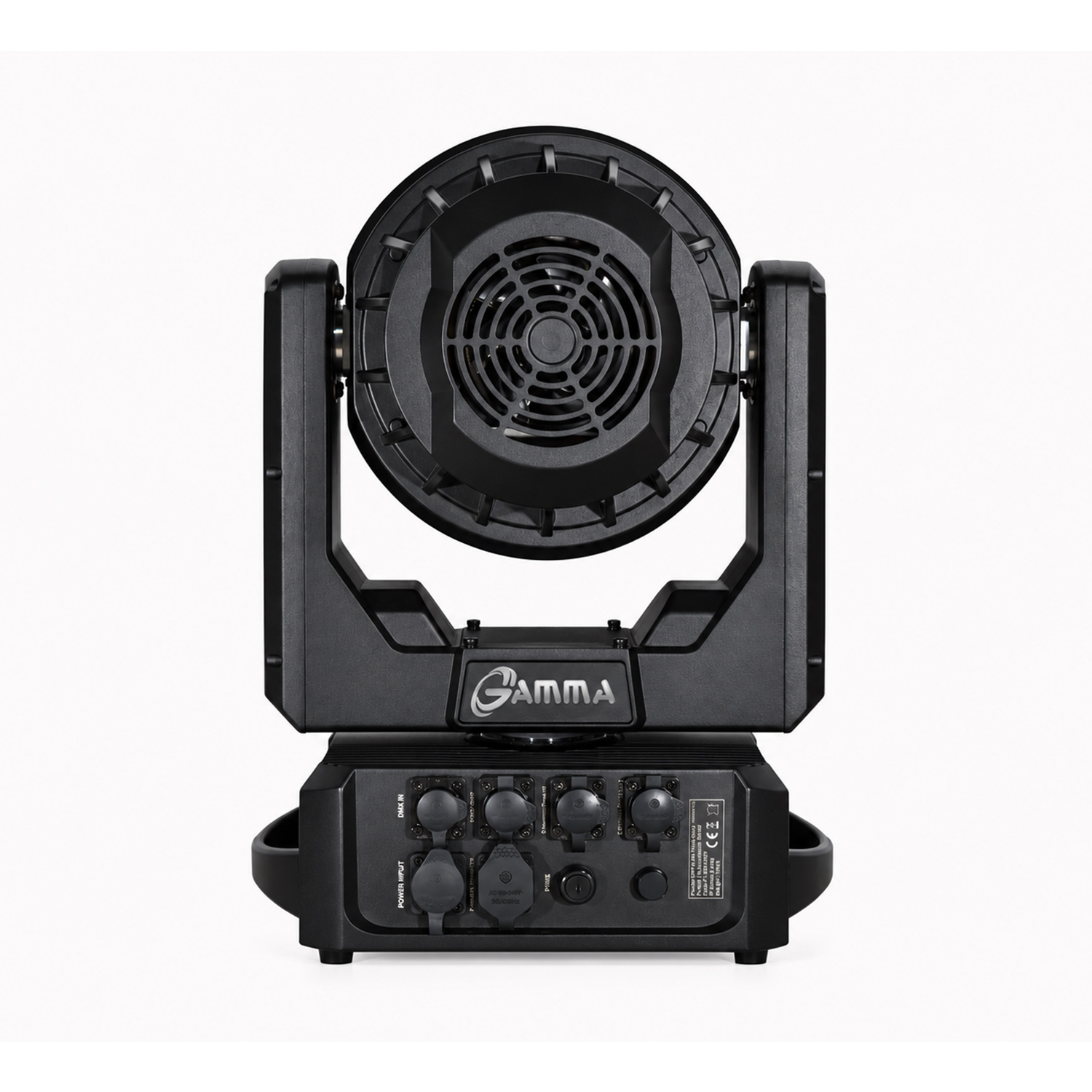

  • DMX in & out: IP-Rated 3-Pin DMX input & output
  • Power in & out: IP-Rated PowerCon™  input

Control:

  • Control Protocol: DMX 512/ 3-pin interfaces
  • Control System: DMX/ RDM/Test Mode
  • DMX Channels: 26CH & 47CH & 105CH & 125CH

Working Environment:

  • Cooling System: Variable Speed Temperature Controlled Fan Cooling
  • IP Grade: IP-65

Package:

  • Net Weight: 26.5 lbs
  • Dimensions: 12 x 14 x 19″ in
