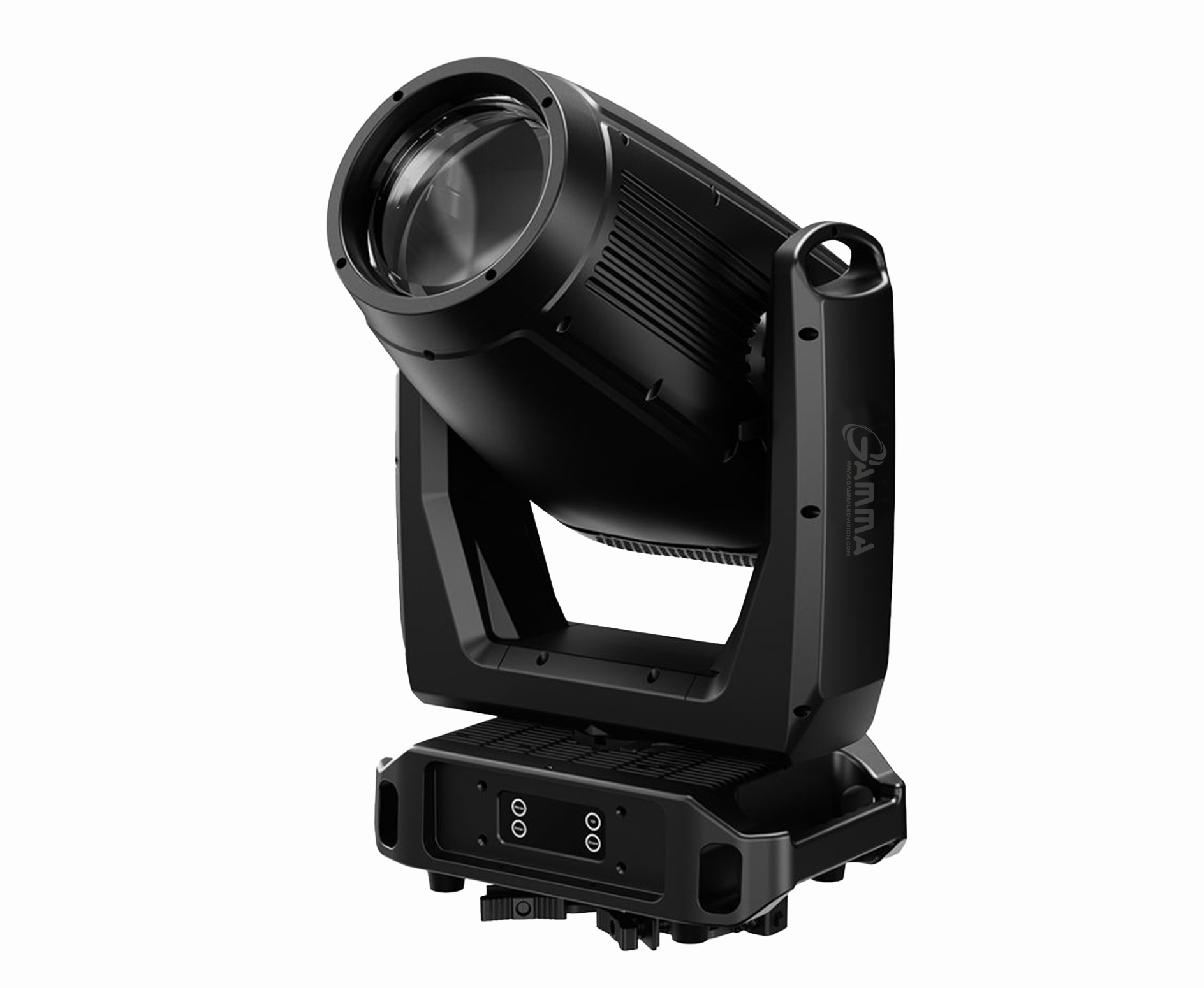

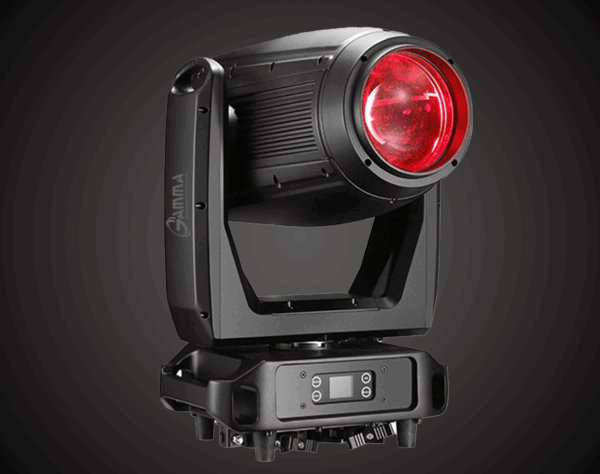

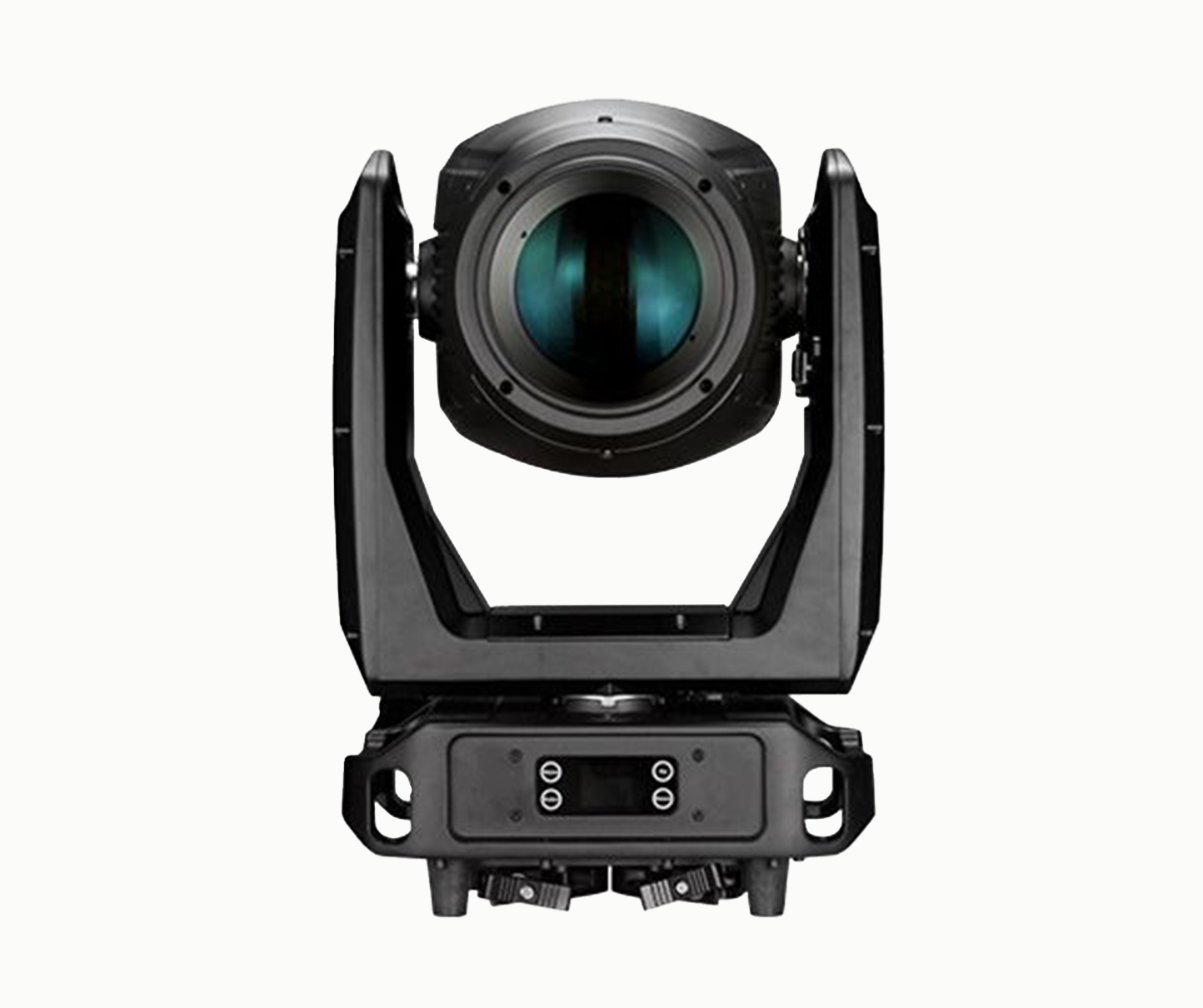

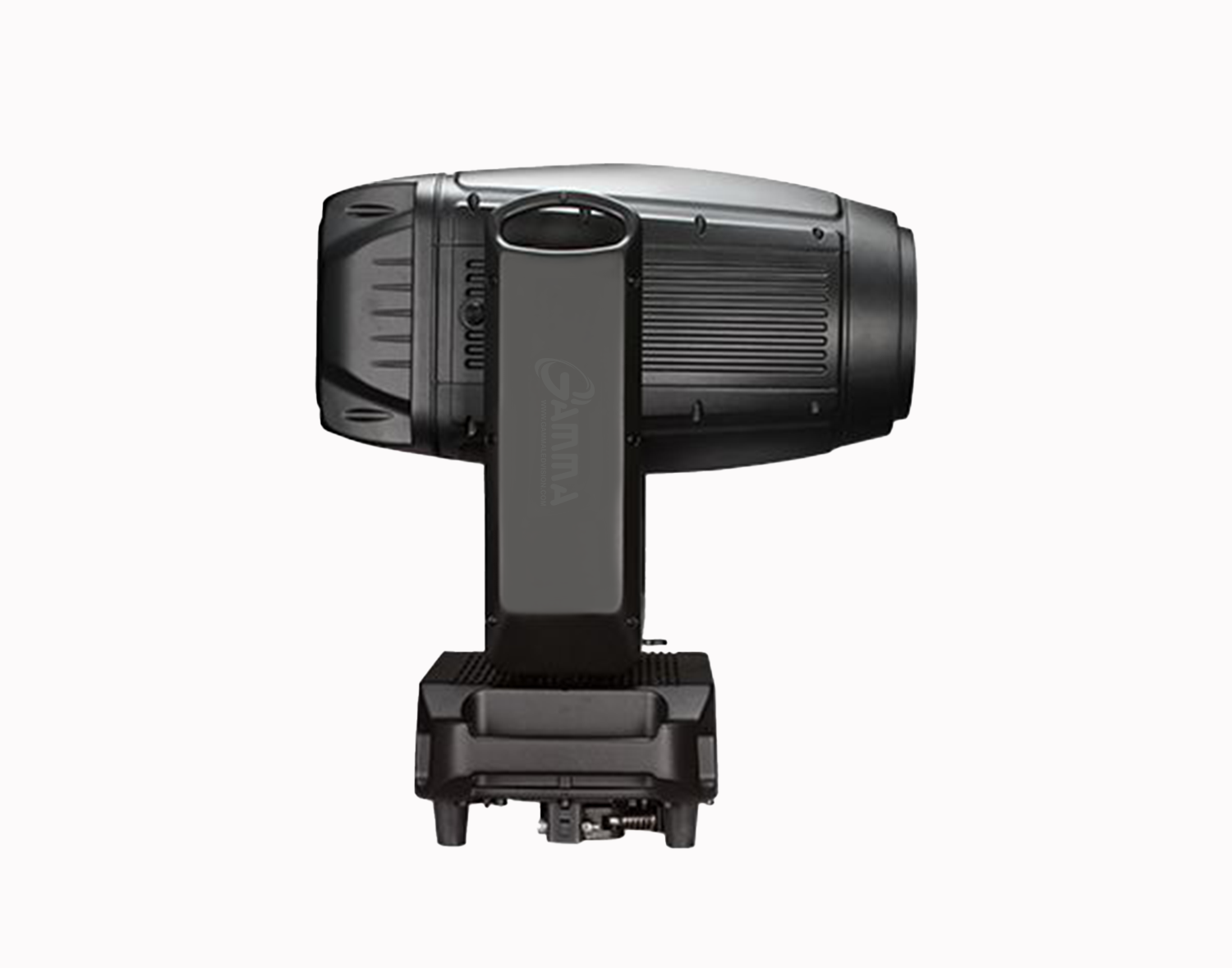

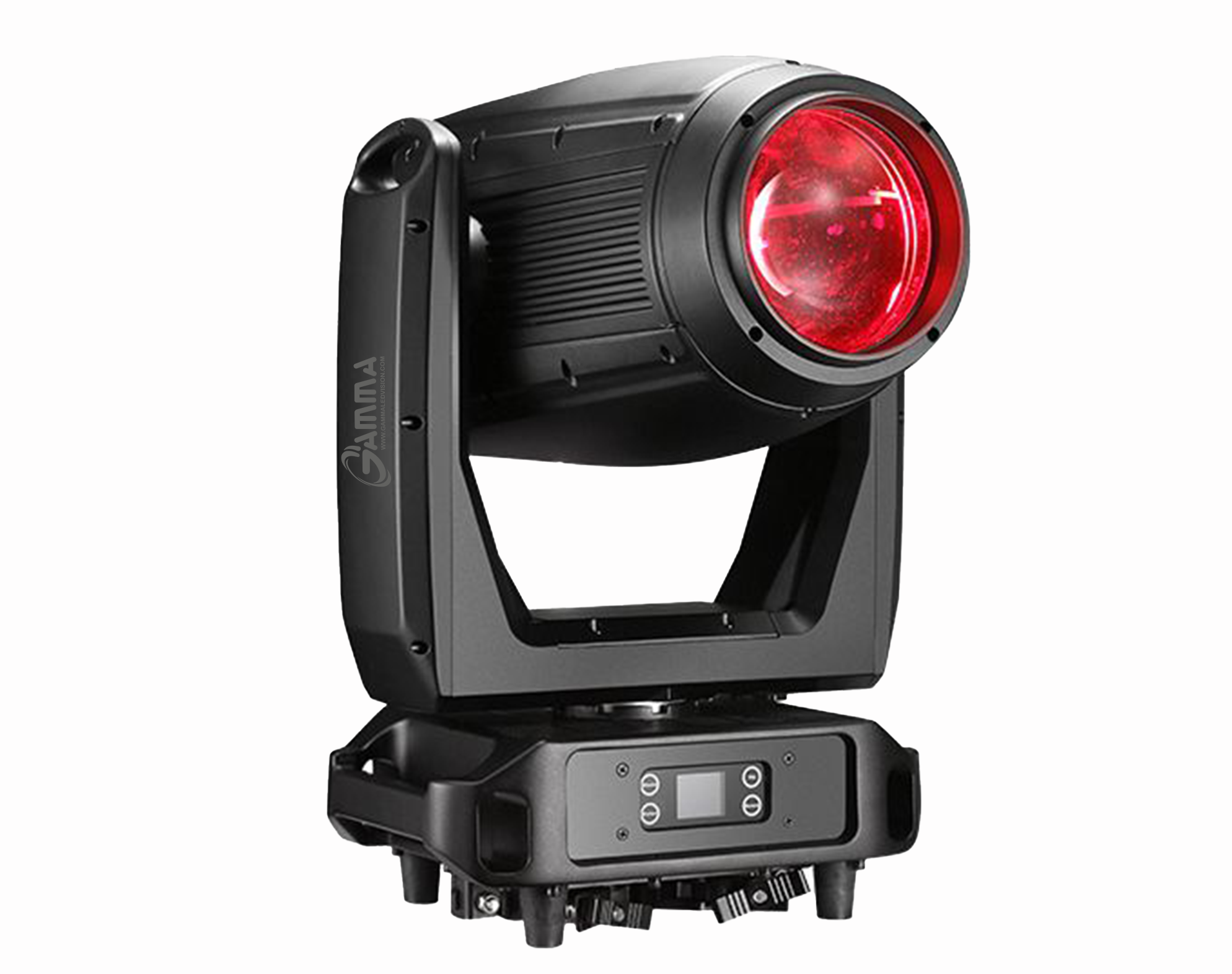

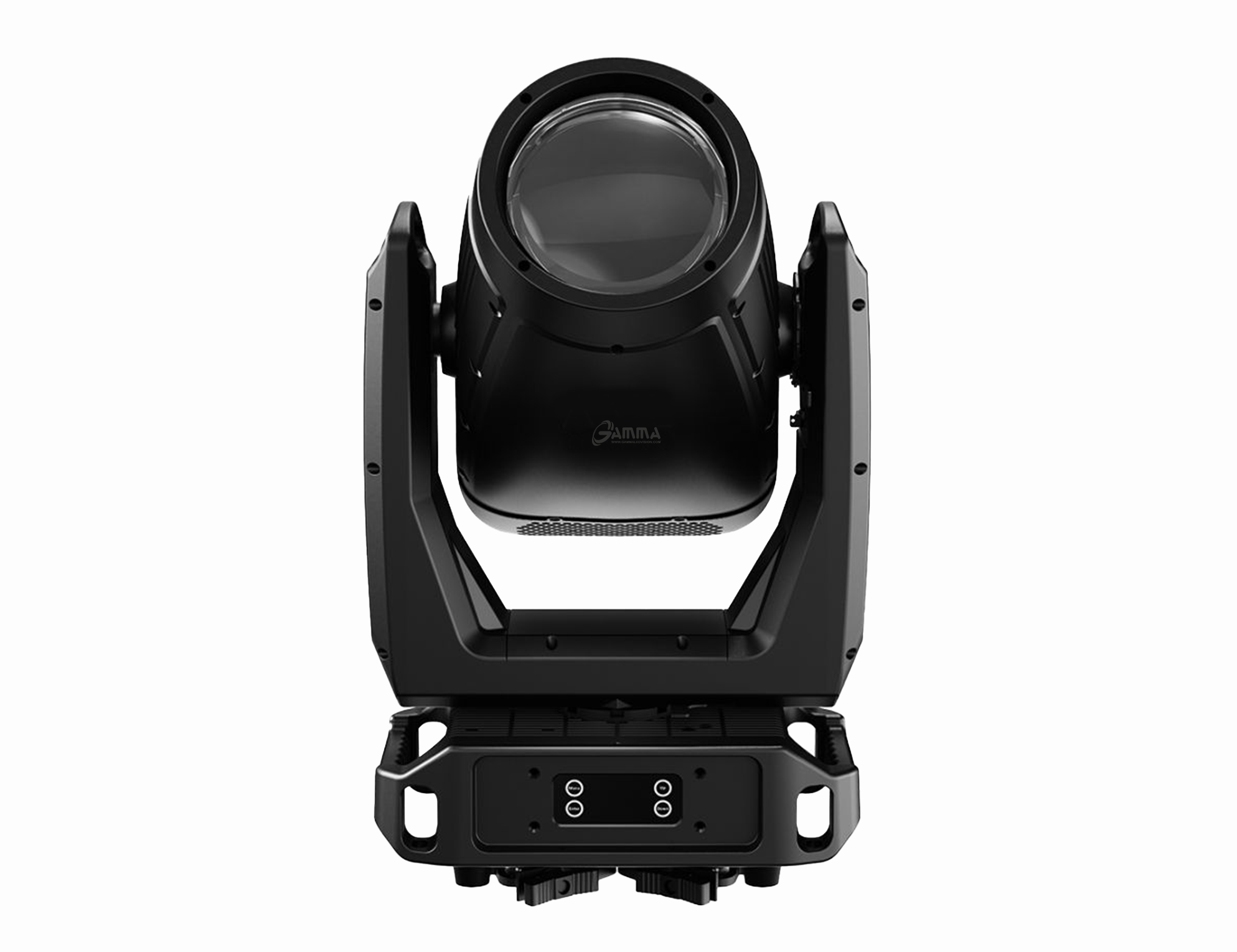

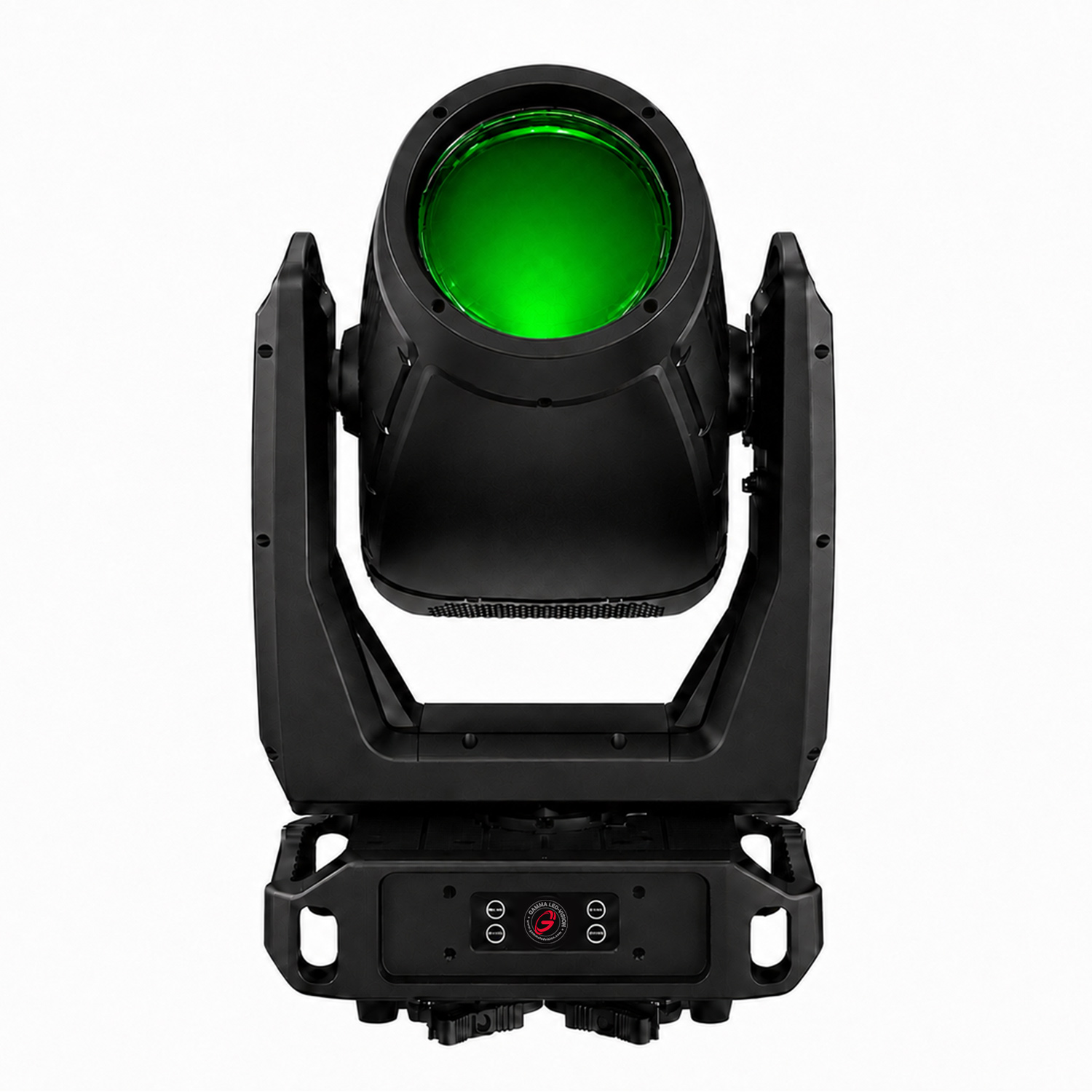

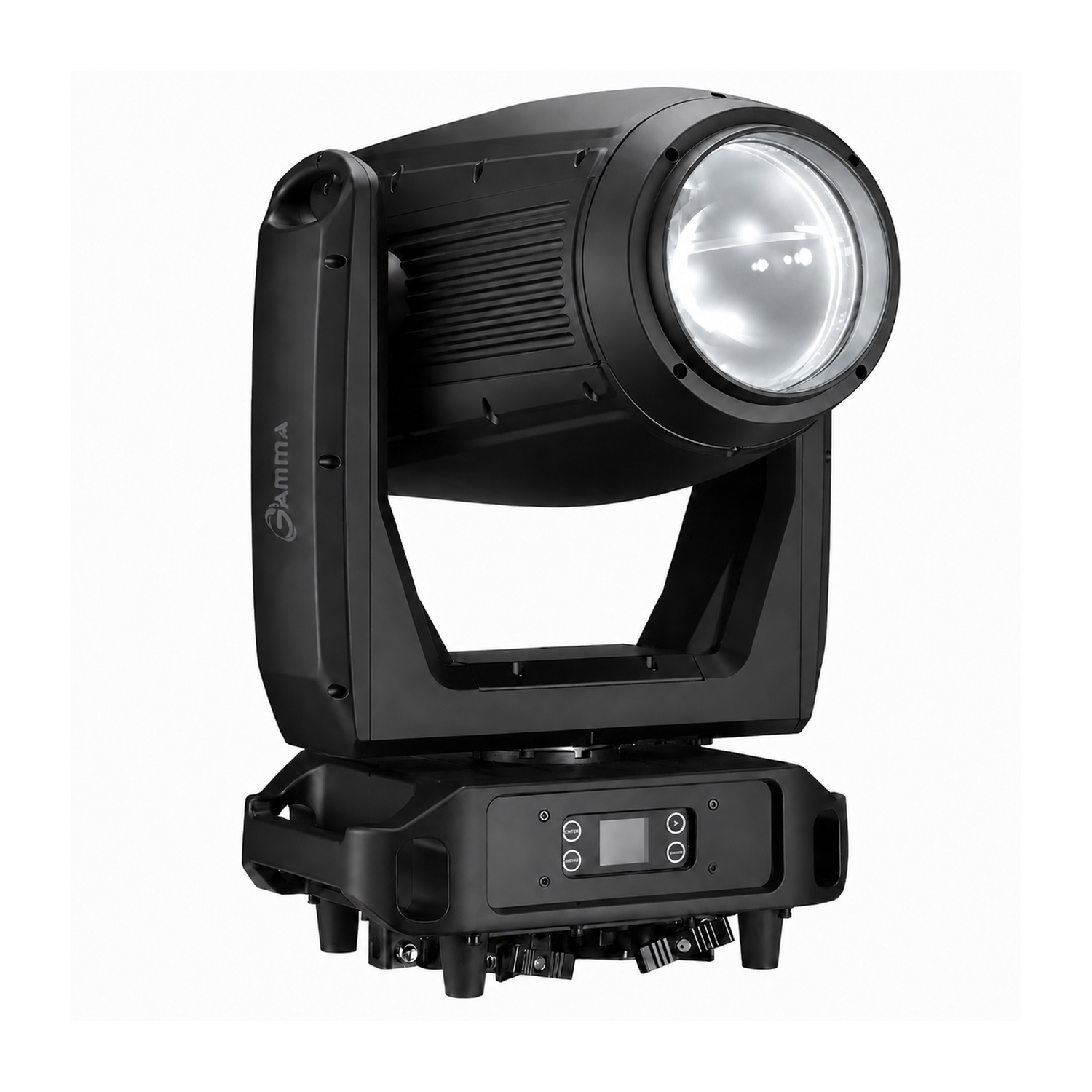

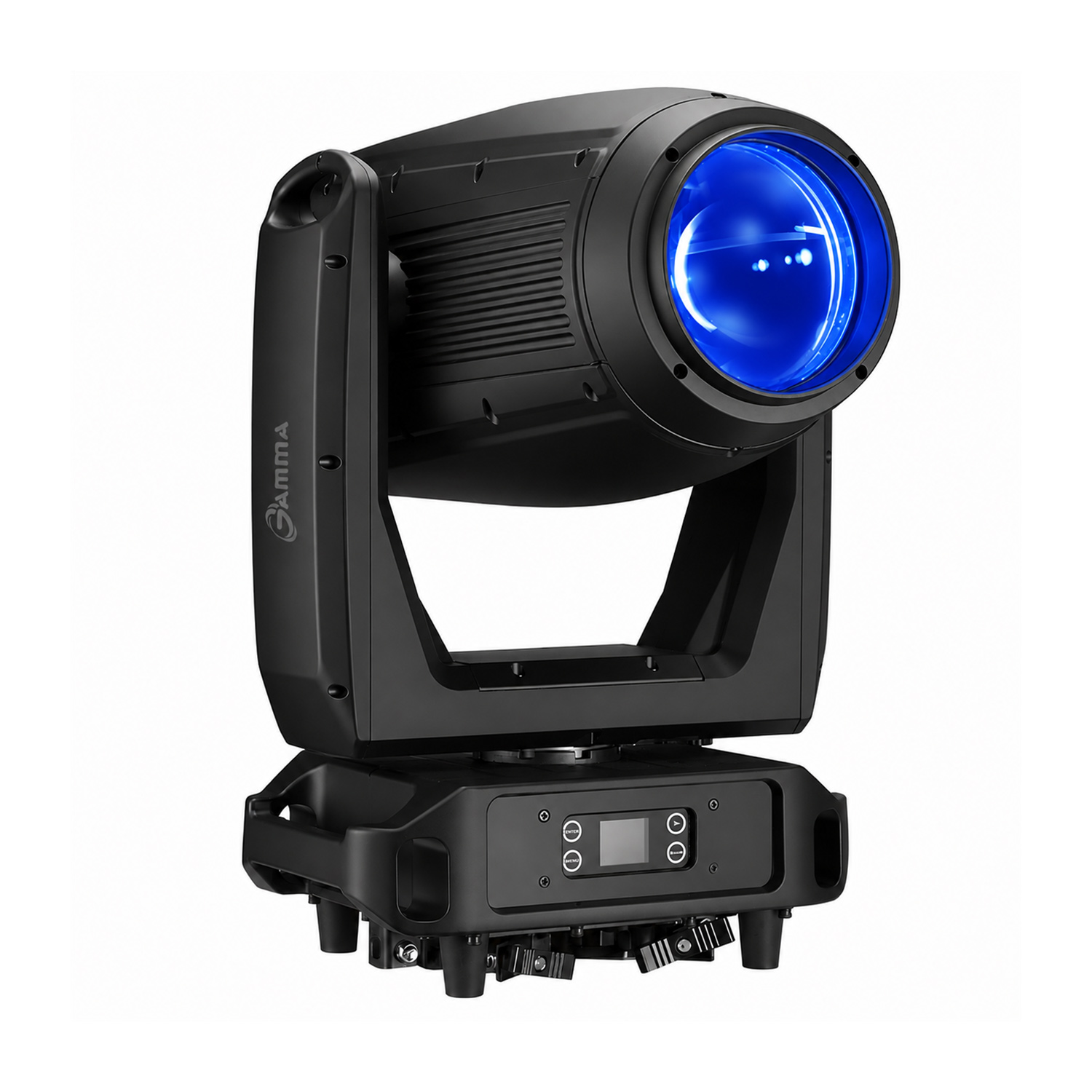

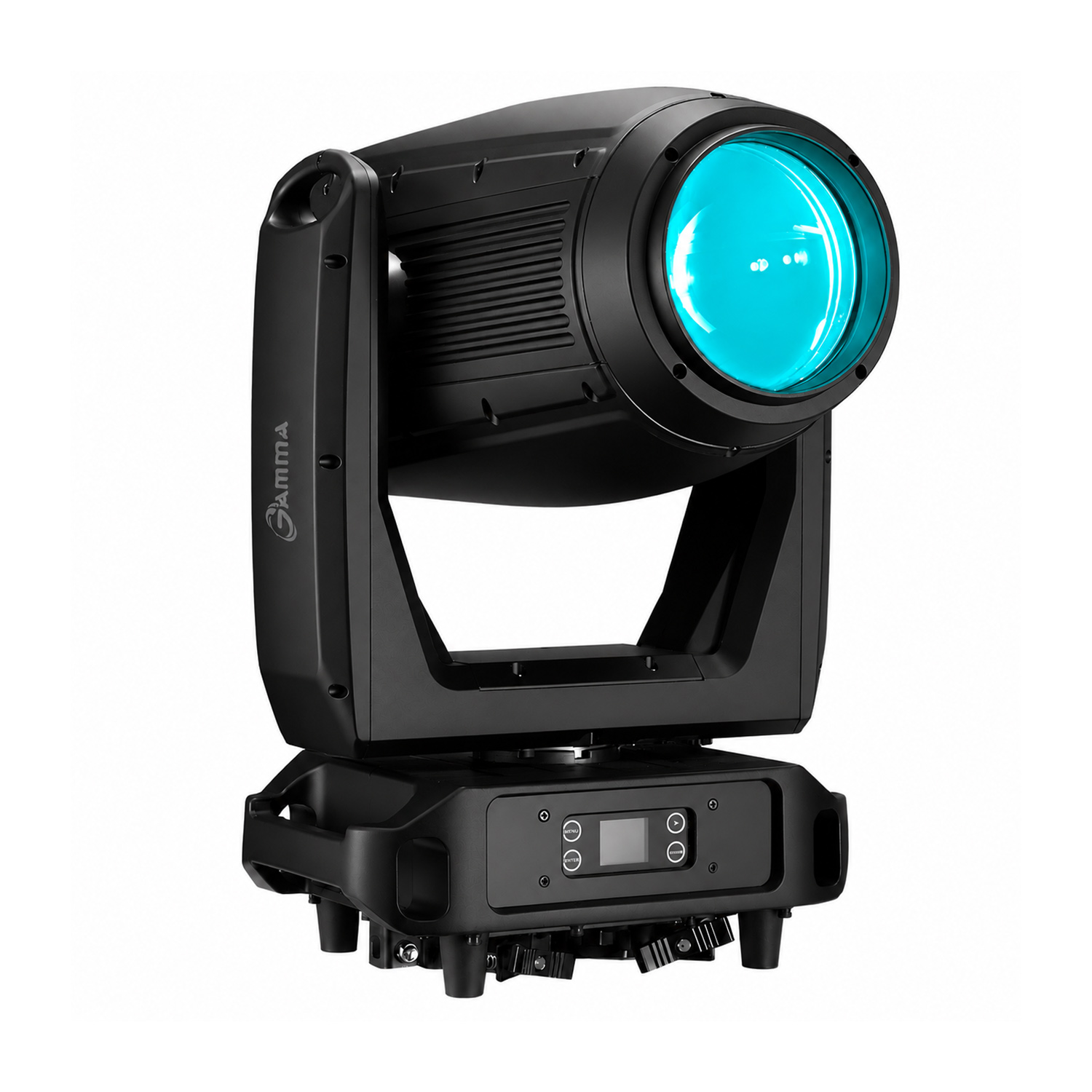

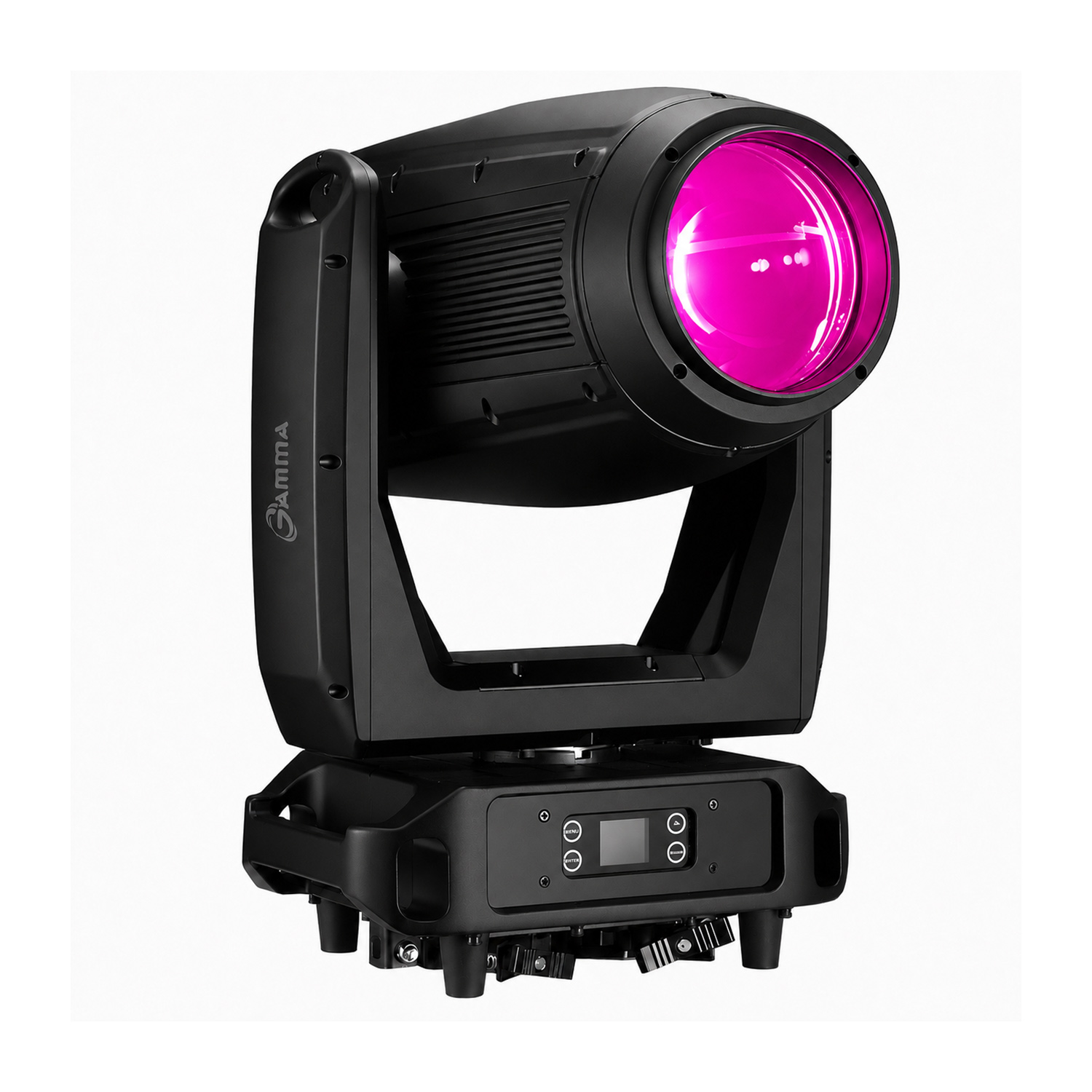

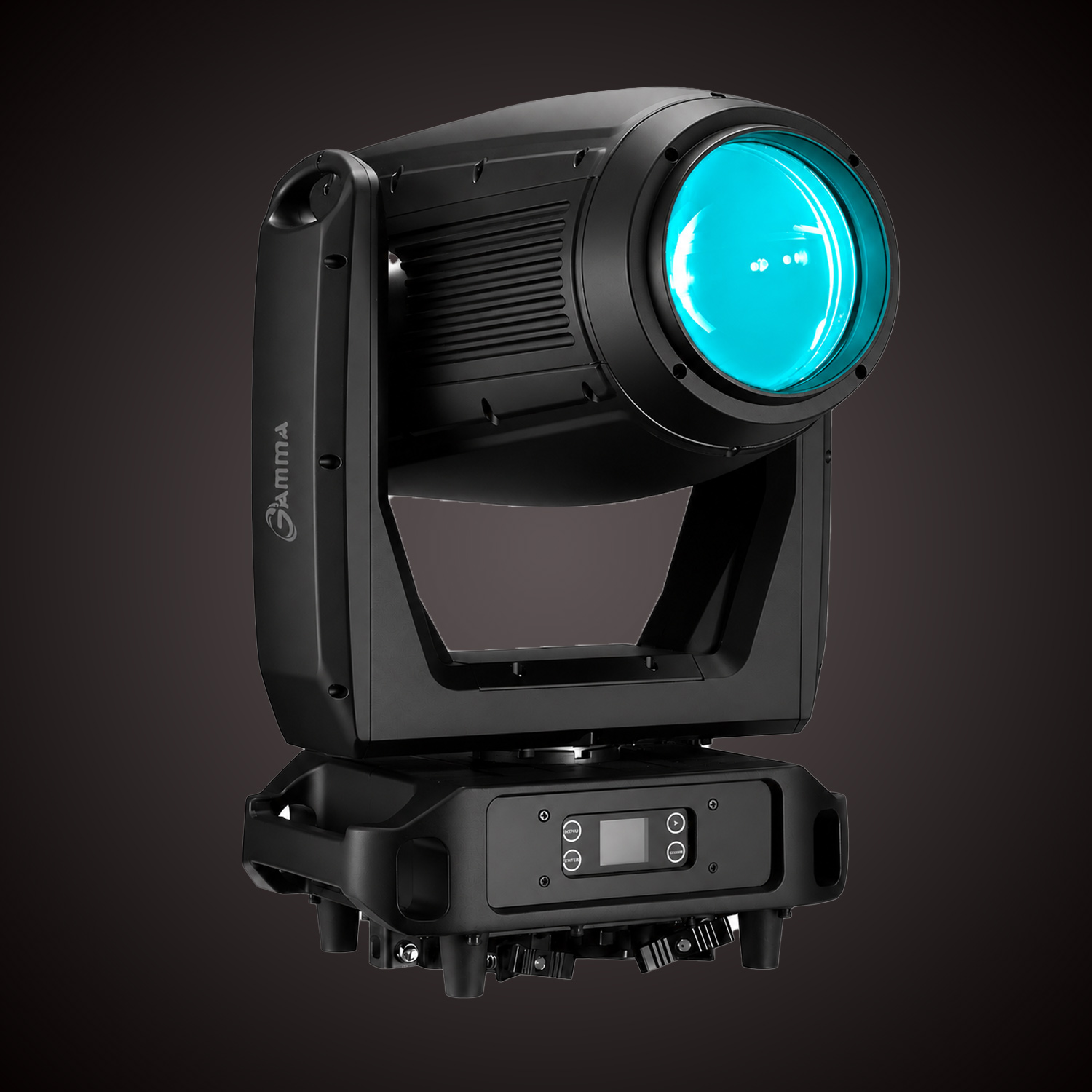

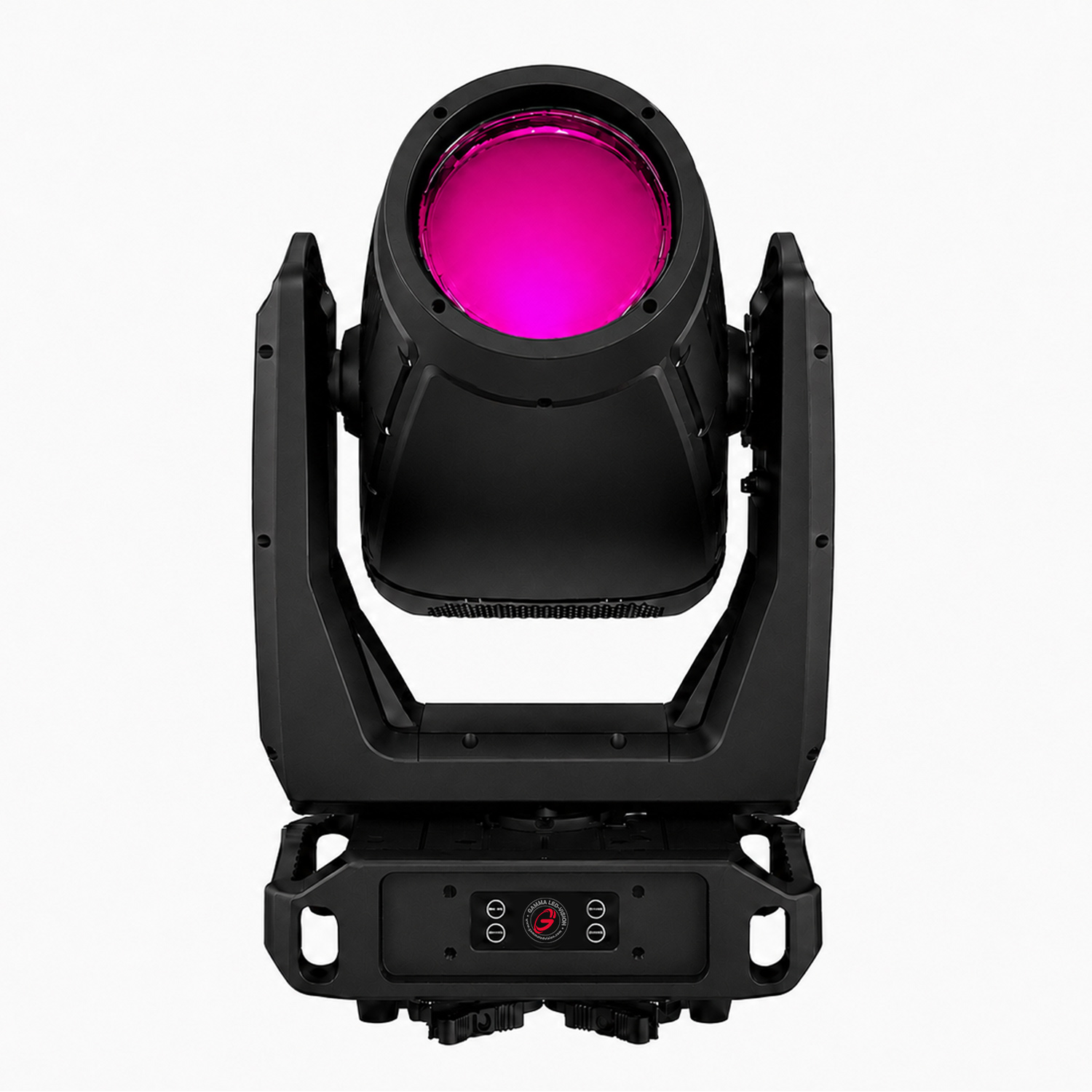

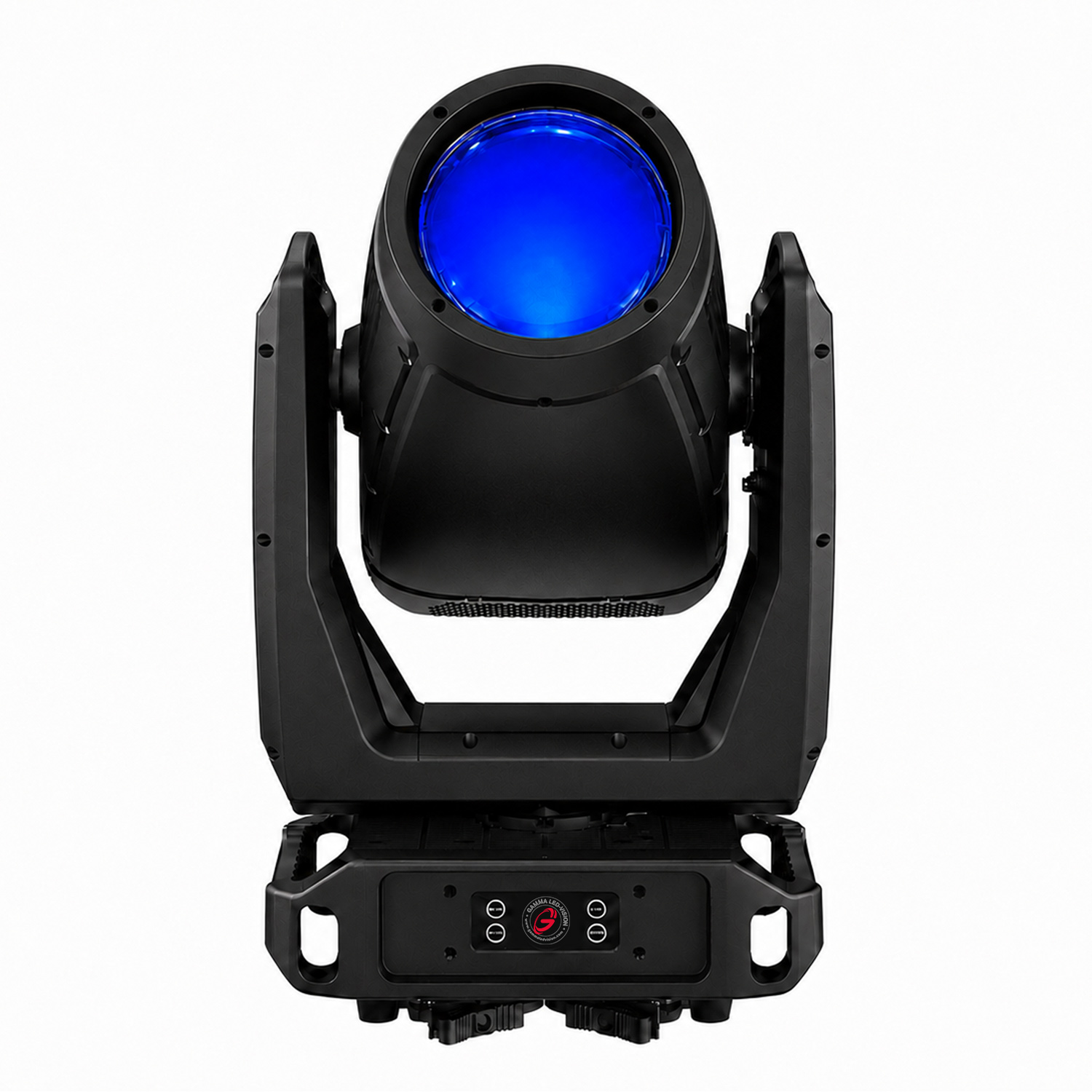

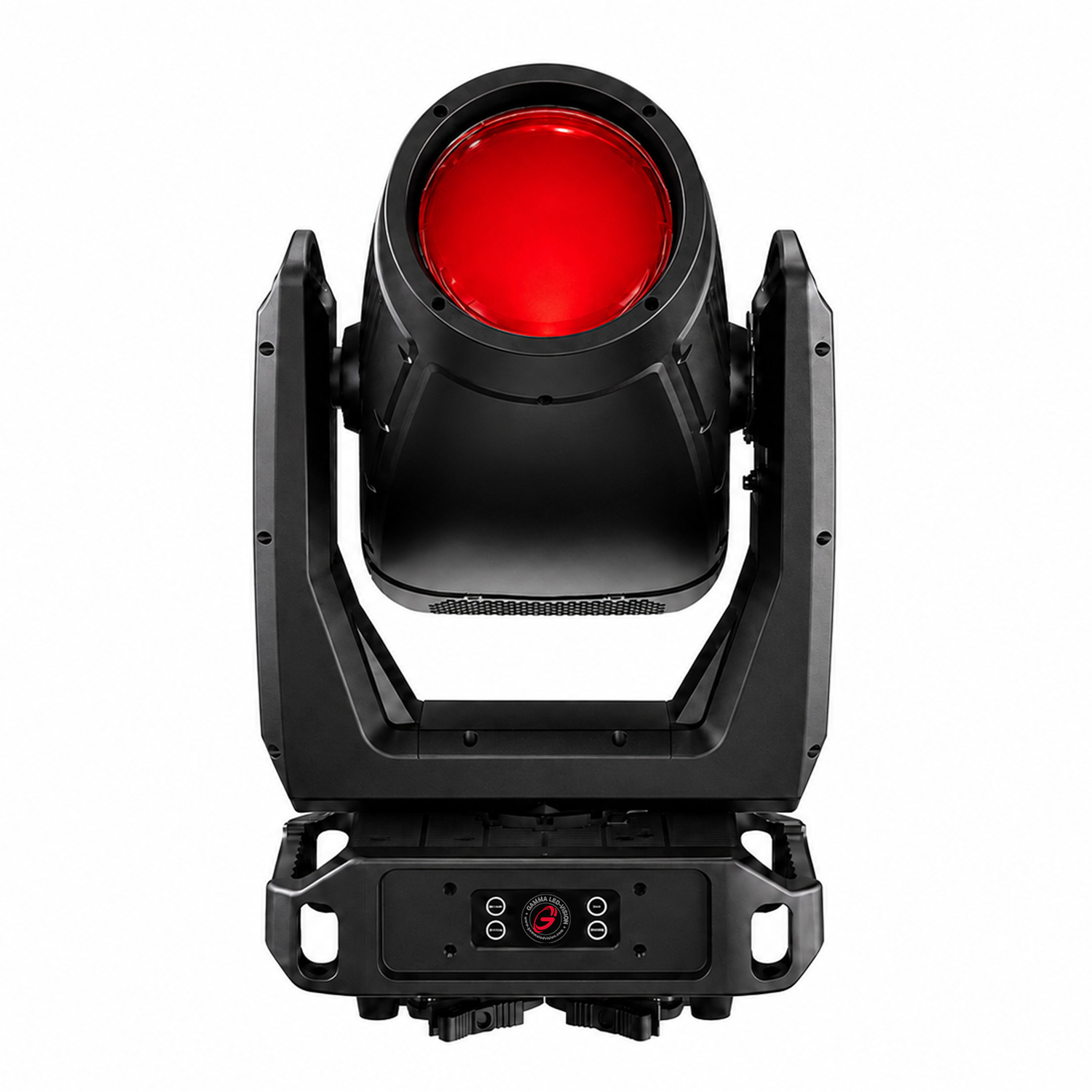

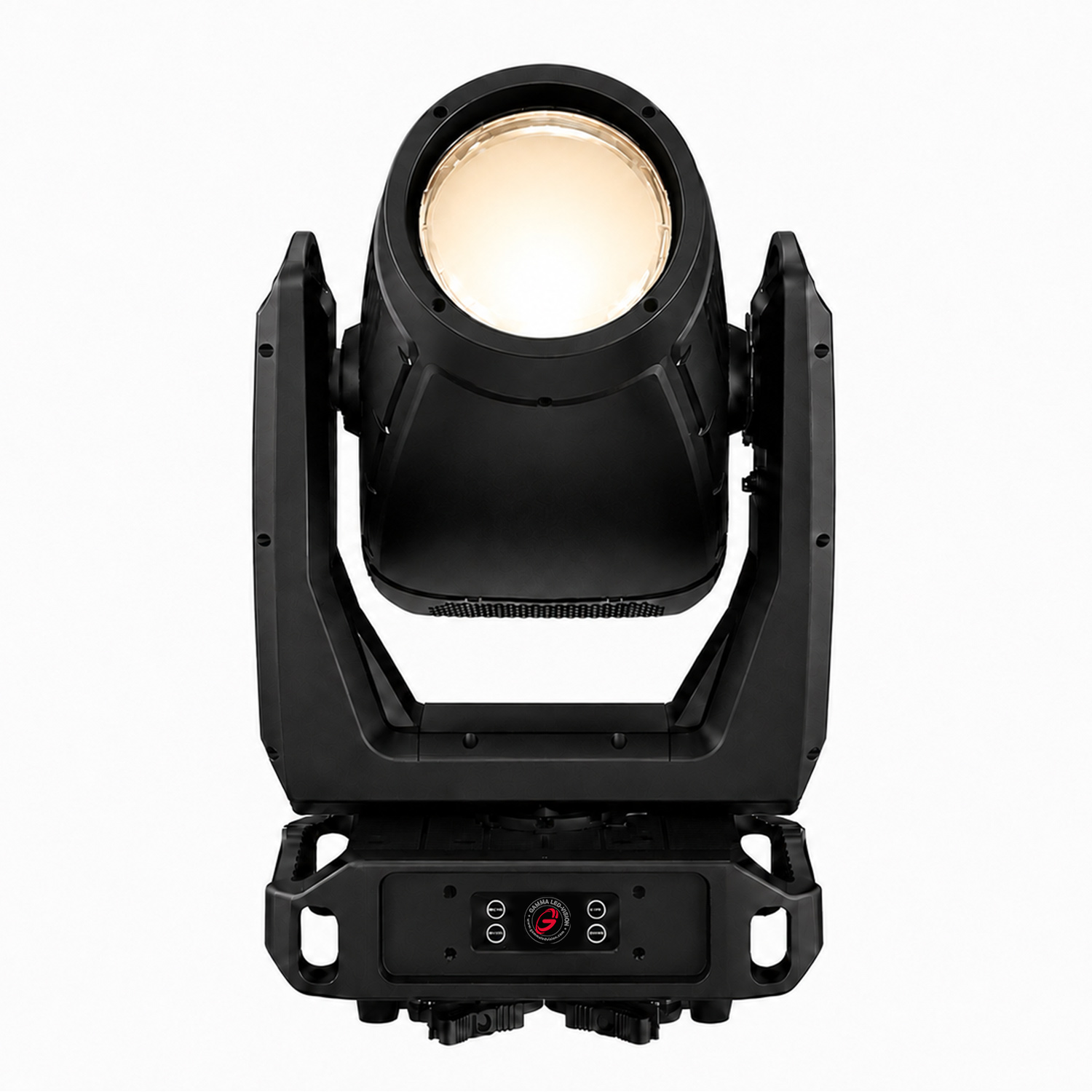

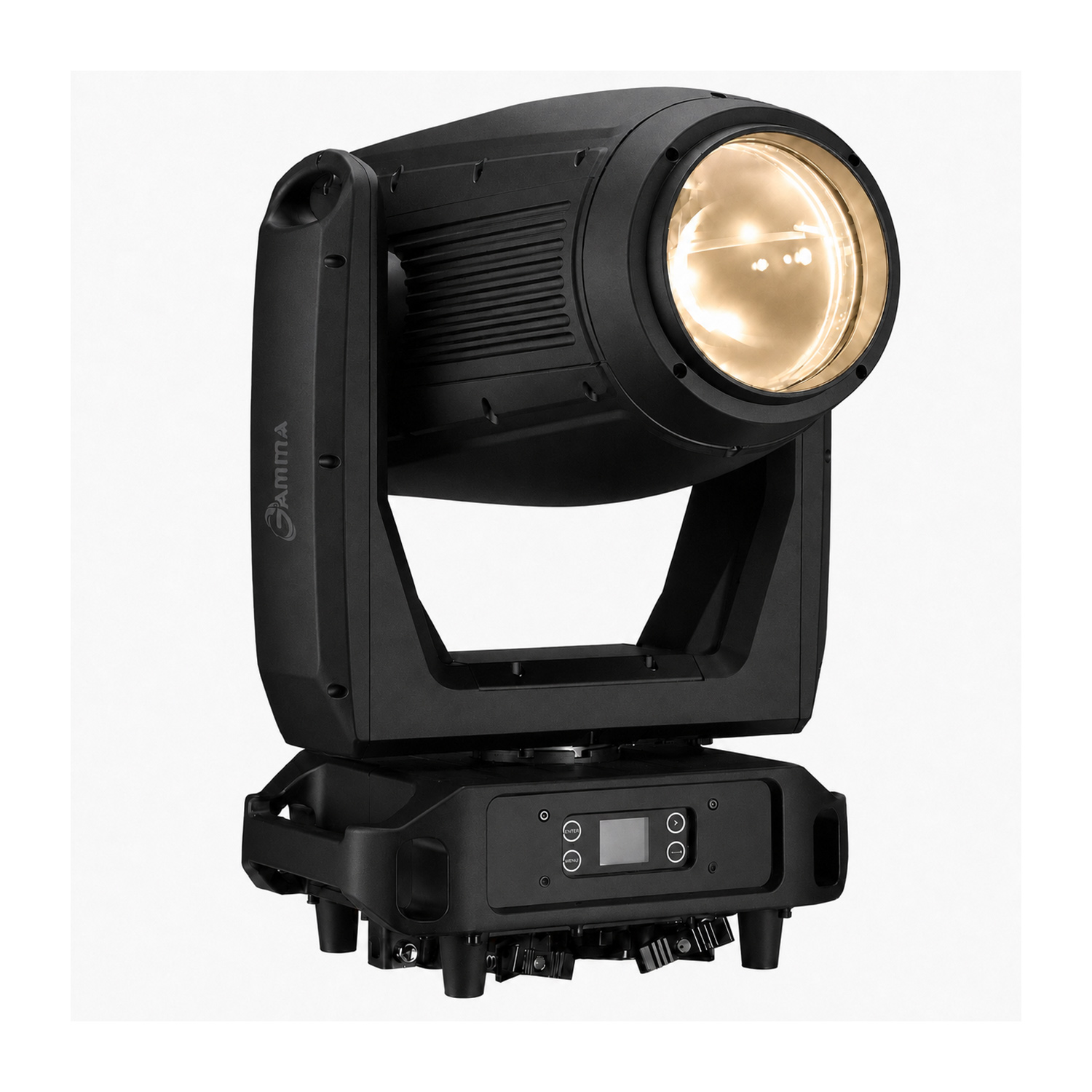

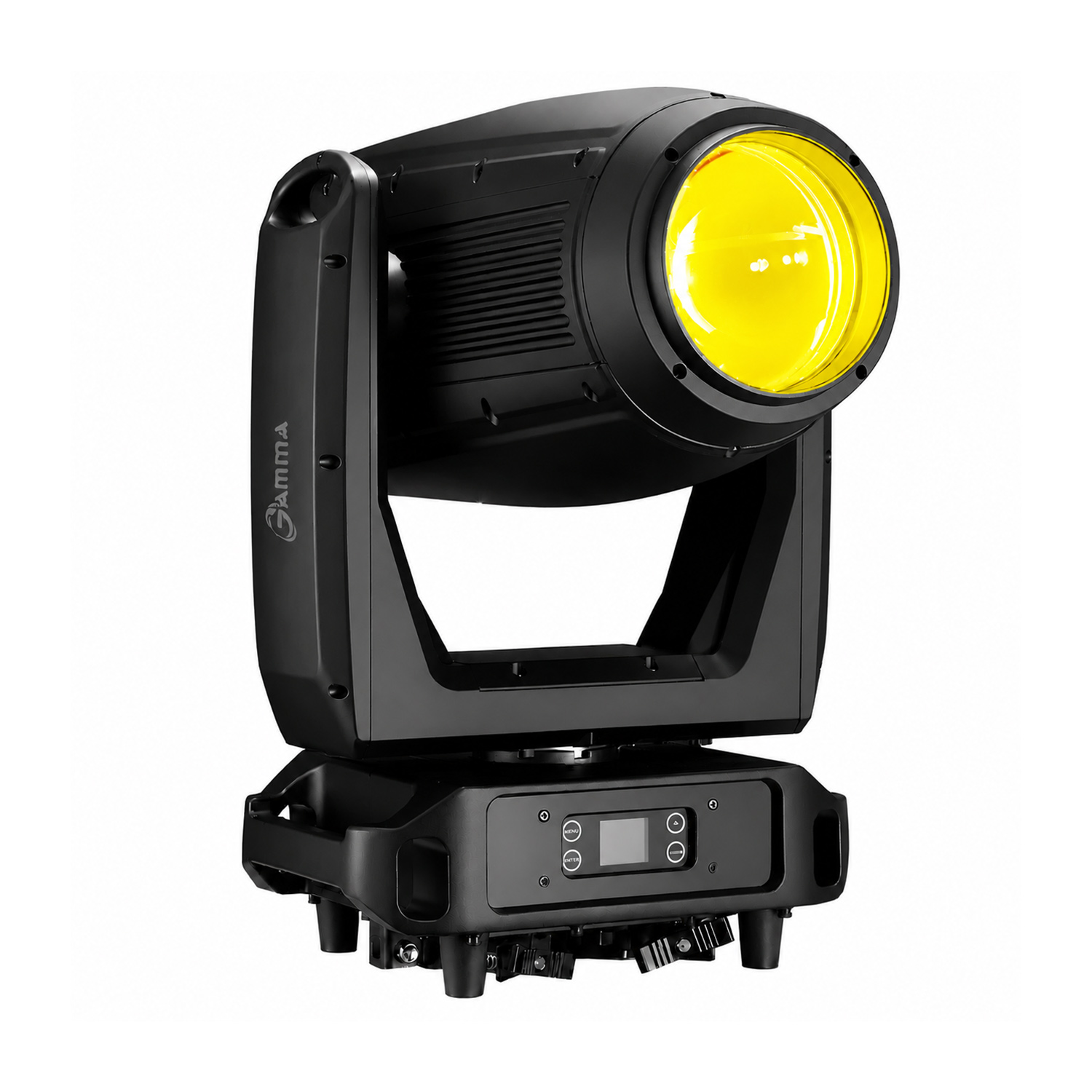

Tidal Spot 800 IP
The Tidal Spot 800 IP brings high-output versatility to the outdoors with a commanding 800W LED engine and an IP-65 rated housing built for any environment. Delivering crisp projection and rich color mixing, this fixture is engineered to perform flawlessly on large-scale productions, architectural displays, and touring events.
Its motorized zoom (4.5°–50°) and motorized focus provide smooth flexibility from tight beams to wide washes, while dual gobo wheels, animation effects, and combinable prisms open the door to endless creative possibilities. Whether you need vibrant color through CMY + CTO mixing, subtle diffusion with the frost filter, or pinpoint accuracy with its motorized framing system, the Tidal Spot 800 IP ensures uncompromised performance every time.
Designed with durability in mind, the fixture’s IP-65 rated body, variable-speed fan cooling, and high output LED source make it as reliable as it is powerful—ready to thrive in any environment, rain or shine.
Loading...
Light Source:
- LED Power: 800w LED
- Light Source Color: 7,000k
- LED Lifetime: 20,000 Hour average
Effects:
- 1 Color Wheel: 5 colors + white
- CMY + CTO Filters
- Motorized Zoom: 4.5º – 50º
- Static Gobo Wheel: 13 Gobos + Open
- Rotational Gobo Wheel: 8 Gobos + Open
- Prism- 2 Combinable and Indexable Prisms (4 Facet)
- Animation Wheel: Continuous rotation in both directions
- Frost Filter
- 540 Degree Pan, 220 Degree Tilt
- Motorized Focus
- Strobe: Variable speed strobe
- Dimming: 0-100% 16 bit
- Standard Mode: Ra≥70
- HCRI Mode: Ra≥95
Housing:
- External Housing: IP-66 Outdoor Rated
- Display: 4 Button Menu
- DMX in & out: IP-Rated 3-Pin DMX input & output
- Power: True One Powercon in/out
- RJ45 Connector
Electrical:
- Voltage: AC100-240V
- Max Power: 910w
Control:
- Control Protocol: DMX 512/ 3-pin interfaces
- Control System: DMX/ RDM/Manual Mode
- DMX Channels: 29CH
Working Environment:
- Cooling System: Variable Speed Temperature Controlled Fan Cooling
- IP Grade: IP-65
Dimensions:
- Net Weight: 63.8 lbs/ 29 kgs
- Dimensions: 14 x 9.44 x 25.9” in/ 358.2 x 239.8 x 658mm
User Manual
