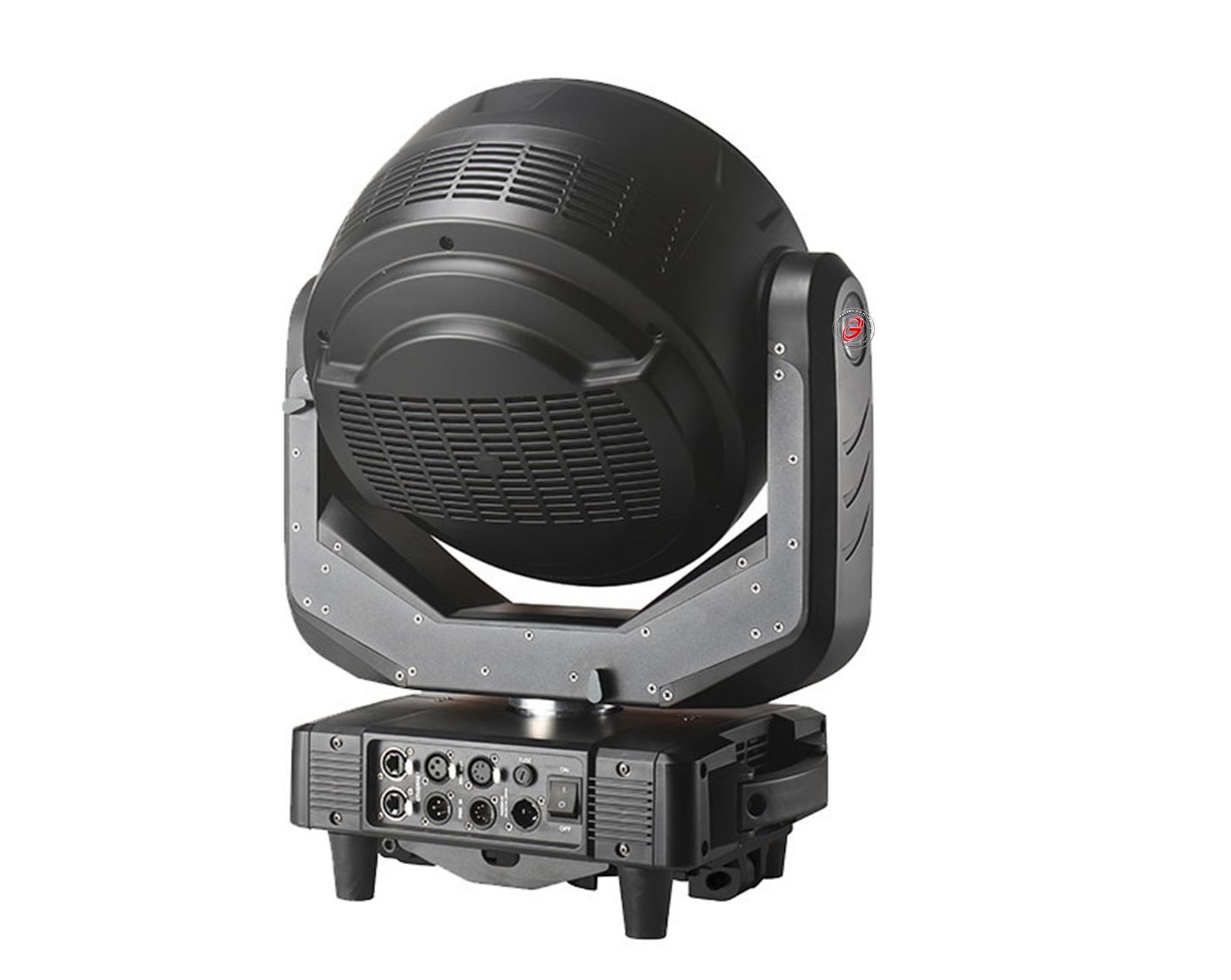

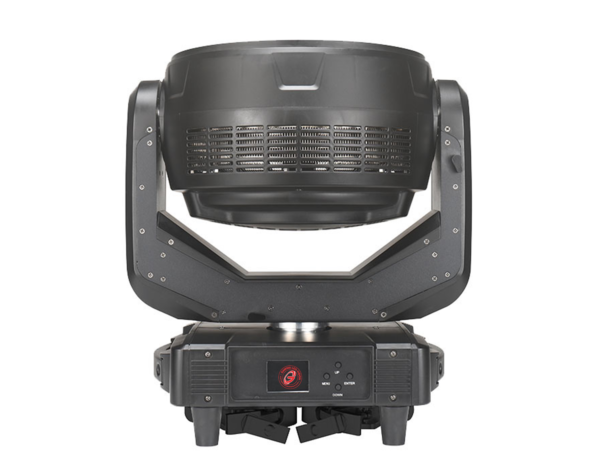

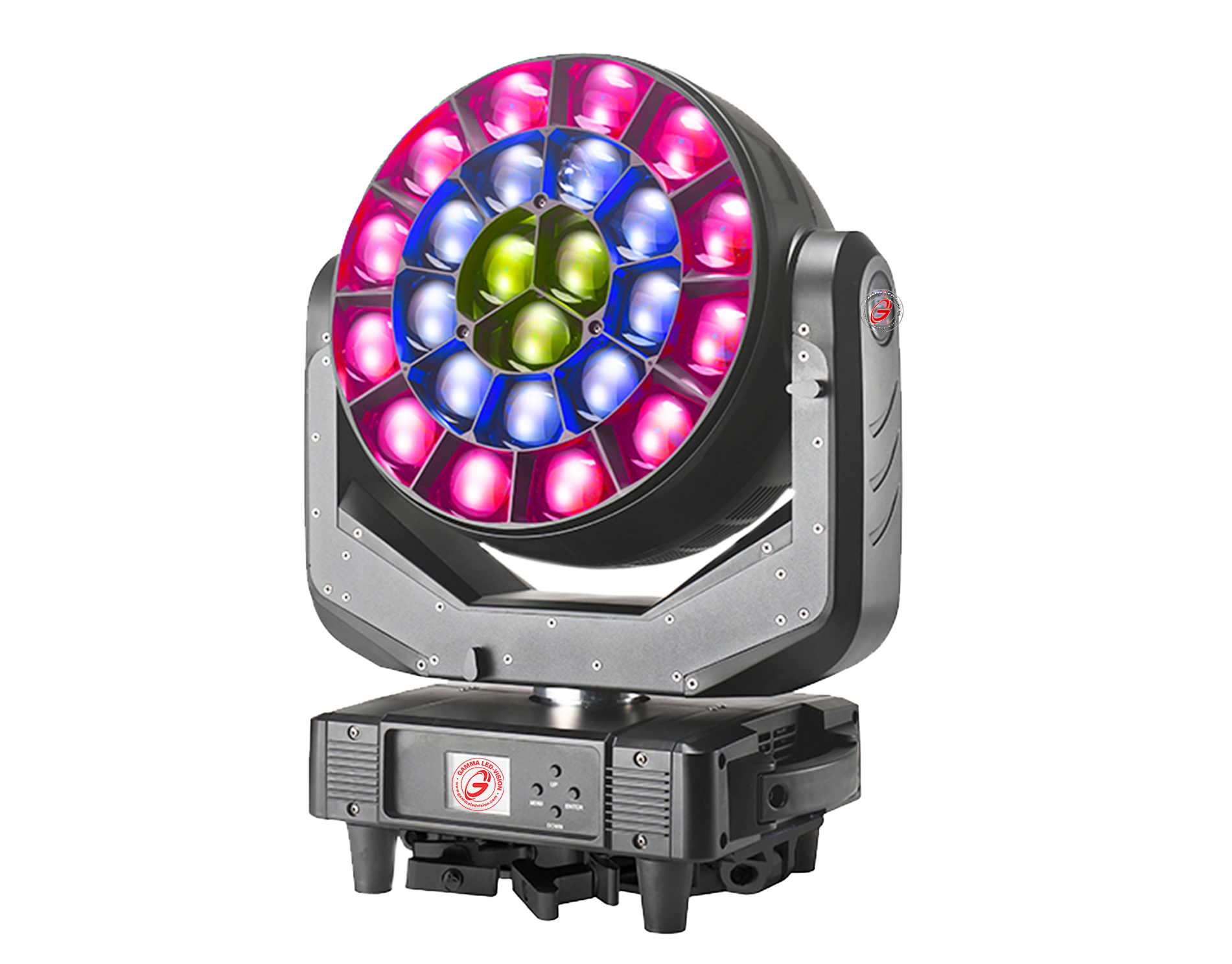

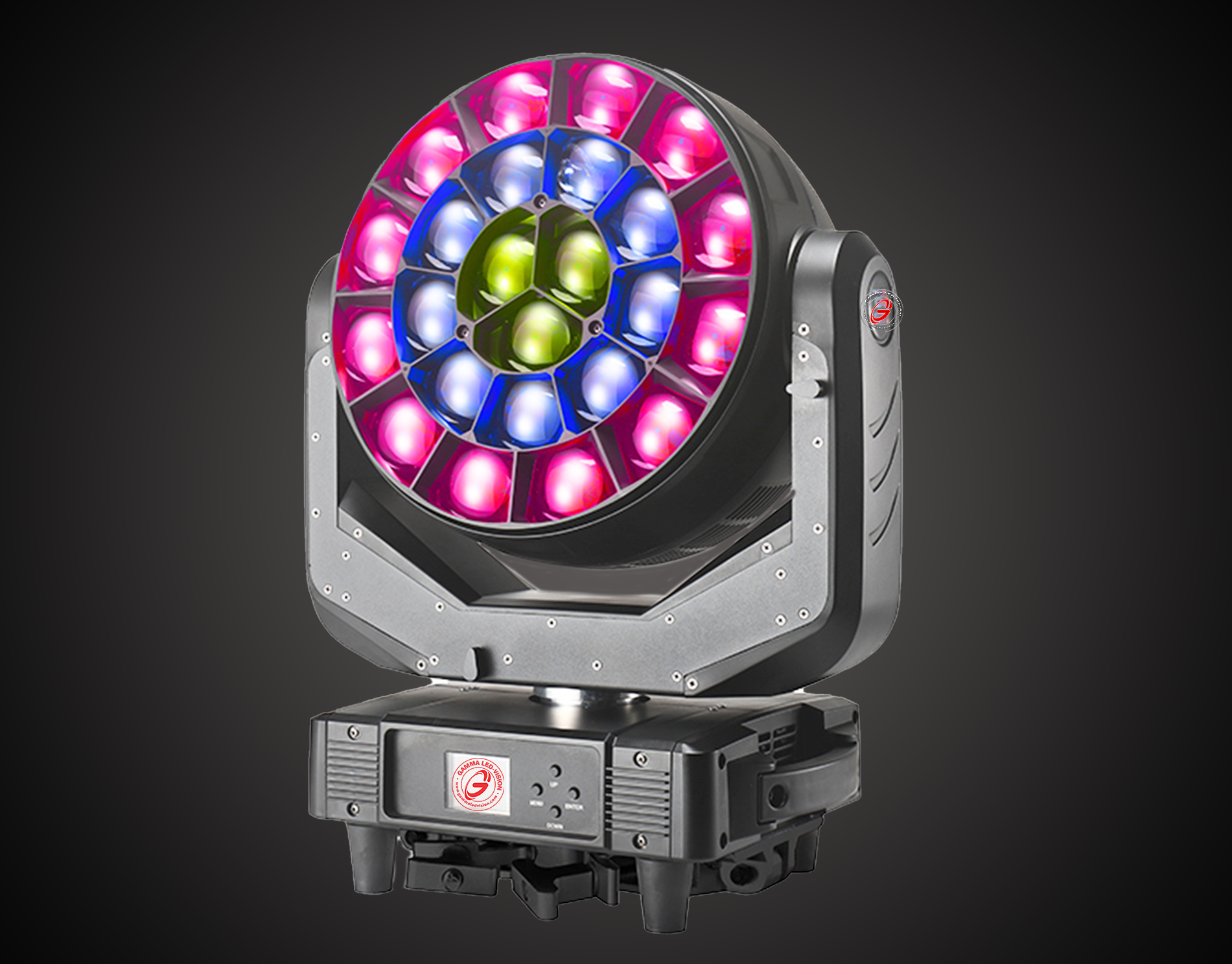

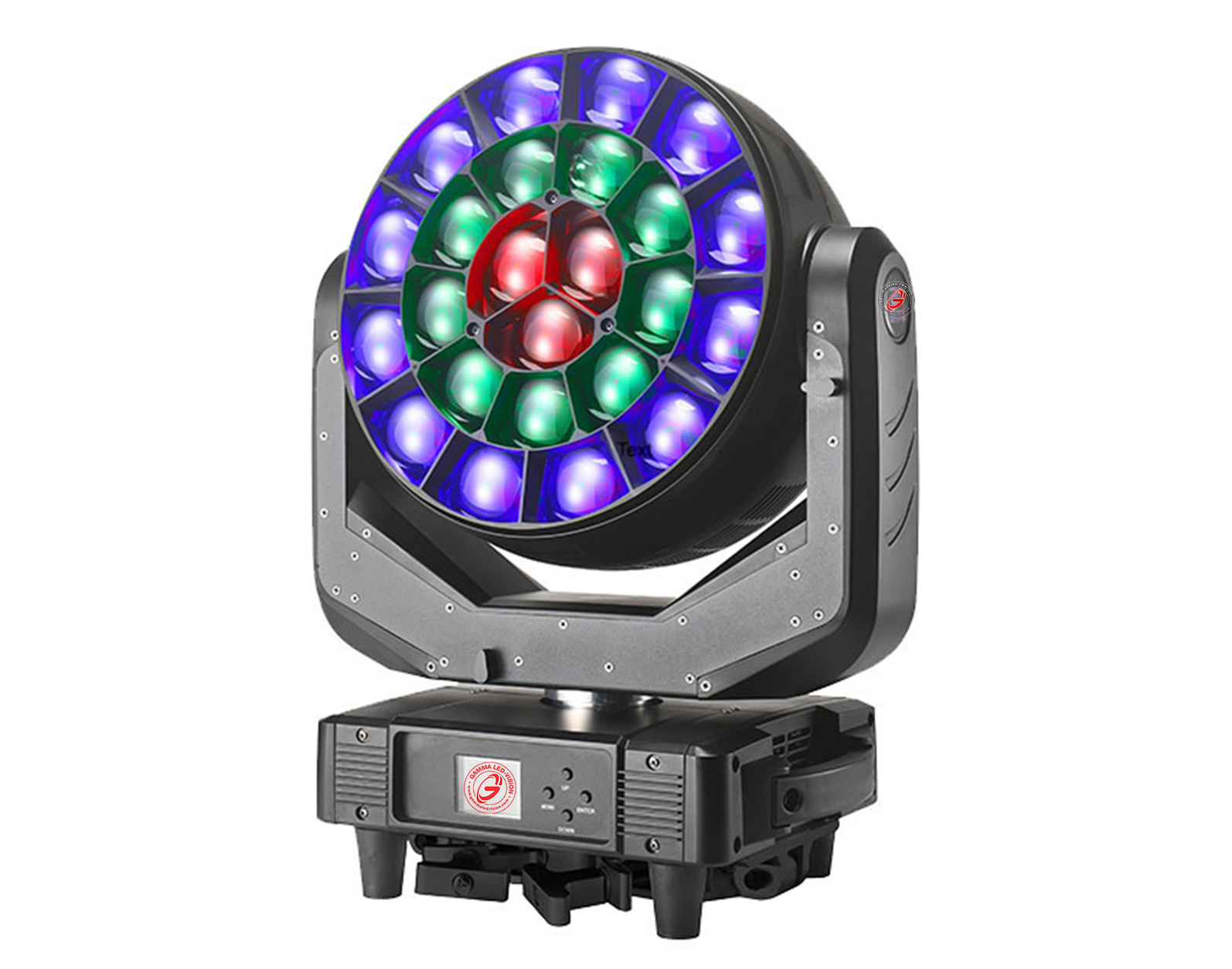

Silhouette Oculus XL (Wash)
The Oculus XL is our most powerful wash lighting fixture available. Equipped with (24) 60 watt LED’s, and a wide zoom range, lens rotation, and pixel mapping capabilities, it gives the user a variety of options to cover a broad area. Ideal fixture for production houses or bigger sized venues, you can combine color mixing with the beam scatter effect to create a variety of looks.
Loading...
Light Source:
- LED Power: (24)x60w LED’s
- LED Color Mixing: 4in1 (RGBW)
- Beam Angle: 3.5º – 45º
- Dimming: 0-100% 16 bit
- Strobe: 1-20 times/sec
- Color Output: Linear Color System
- 50,000 hours LED lifetime
Effects:
- Pixel Mapping: 24 Individual Pixel Mapped LED’s
- Lens Rotation: Beam Scatter and Rotation
- Macros: 44 Color Macros & Effects
Housing:
- Internal Housing: Die-casting Aluminum
- Display: 4 Button Menu
- DMX in & out: 3-Pin & 5- Pin DMX input & output
- Power: True One PowerCon™ Input
Electrical:
- Voltage: AC100-240V
- Max Power: 1550w
Control:
- Control Protocol: DMX 512/ 3-pin or 5-pin interfaces/ ArtNet control with RDM
- Control System: DMX, Auto run, Master/Slave, and Sound
- DMX Channels: 21 CH, 25 CH, 33 CH, 129 CH
Working Environment:
- Cooling System: Efficient Low Fan Cooling System
- IP Grade: IP-20
Dimensions:
- Net Weight: 57 lbs/ 25.9 kgs
- Dimensions: 13.94”x17.48”x18.78”354x444x477mm
User Manual
Controller Profiles
- Lightshark– “OculusXL”
- Onyx– “Oculus XL Z”
- Grand MA– gamma@wash24x60
- Hog 4- “Silhouette Oculus XL Z”
- Chamsys- “Oculus XLZ”
- Jands Vista– “Silhouette Oculus xl”
- Avolites- “Silhouette Oculus XL Z”
