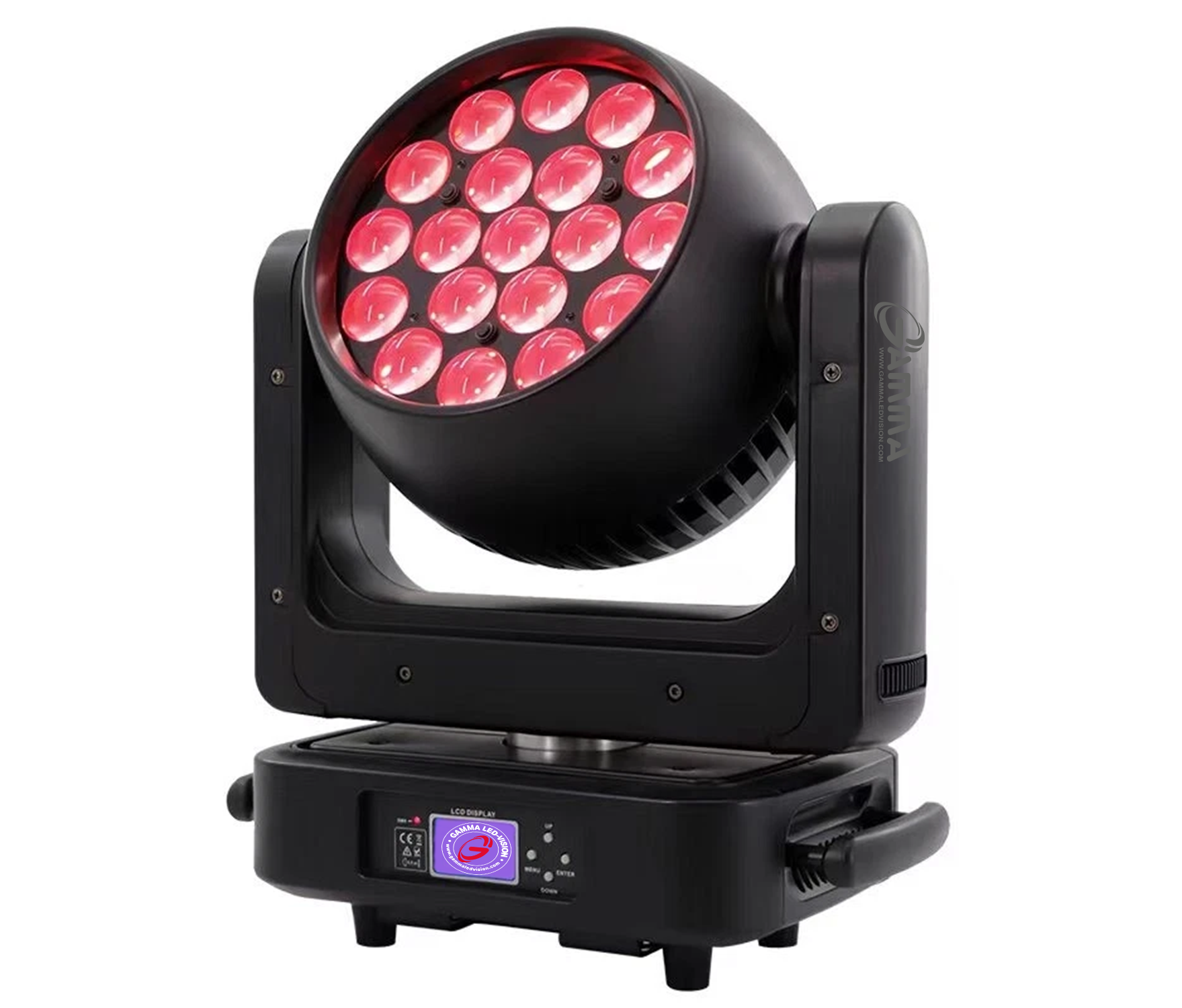

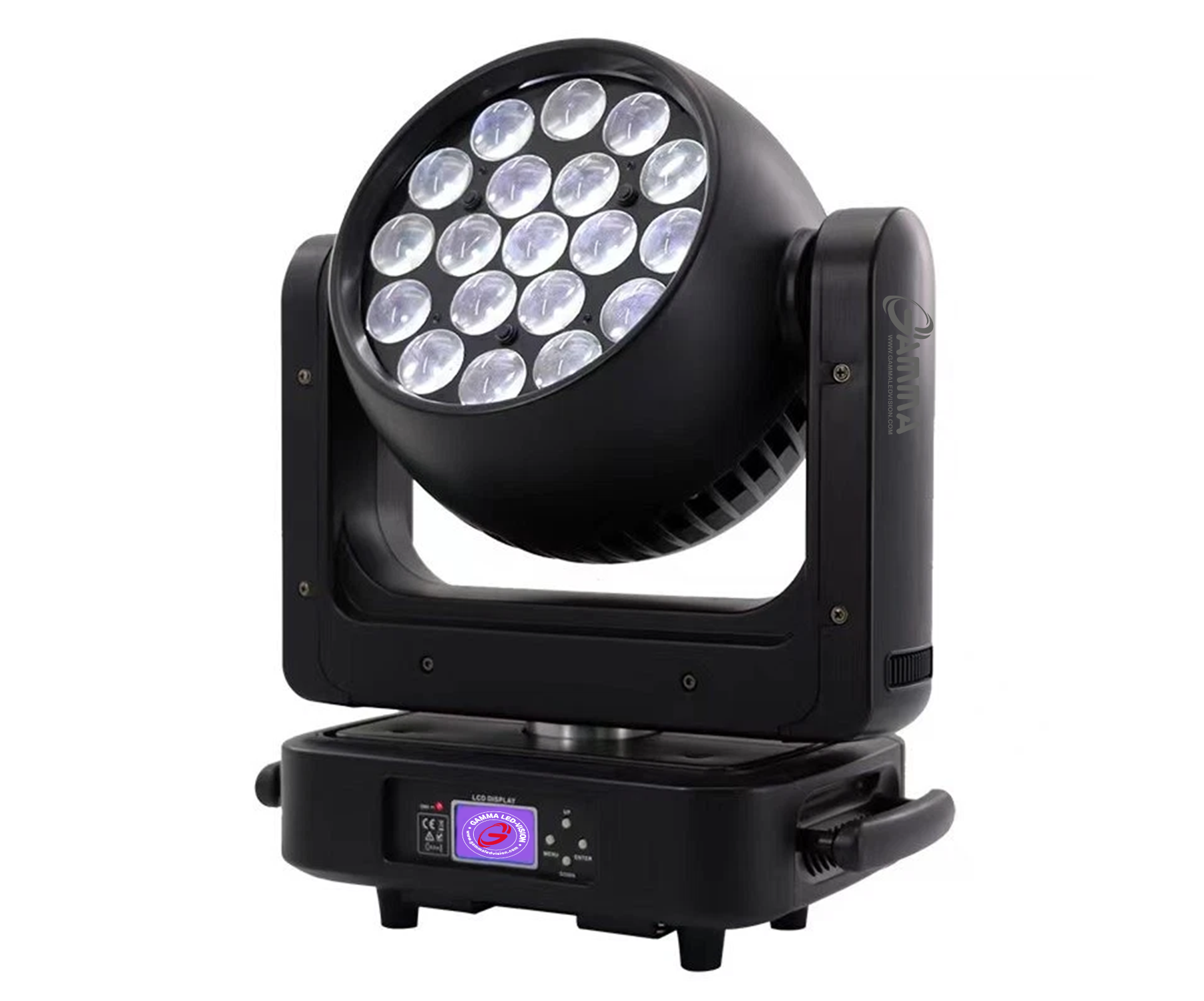

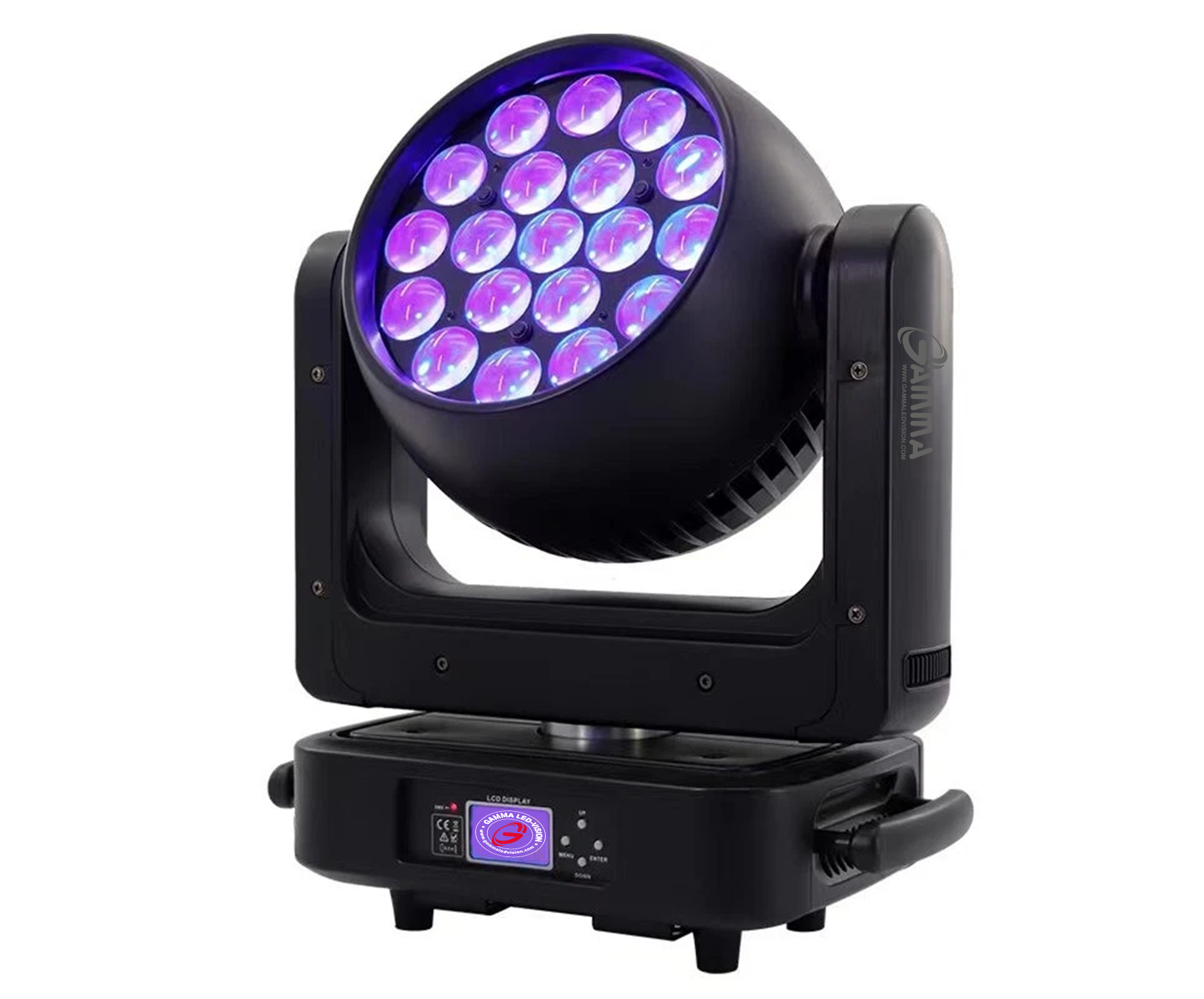

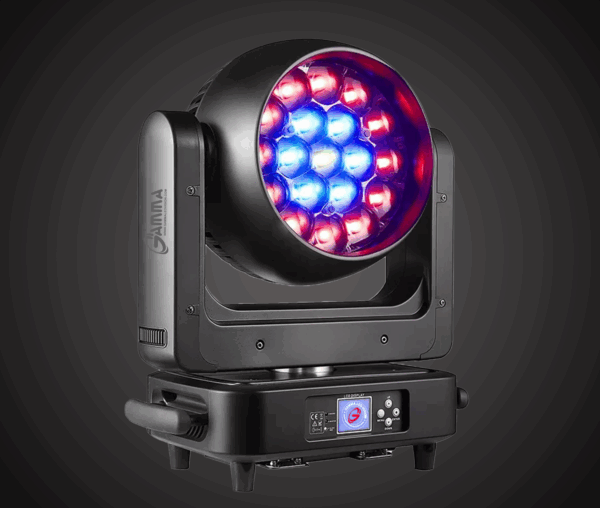

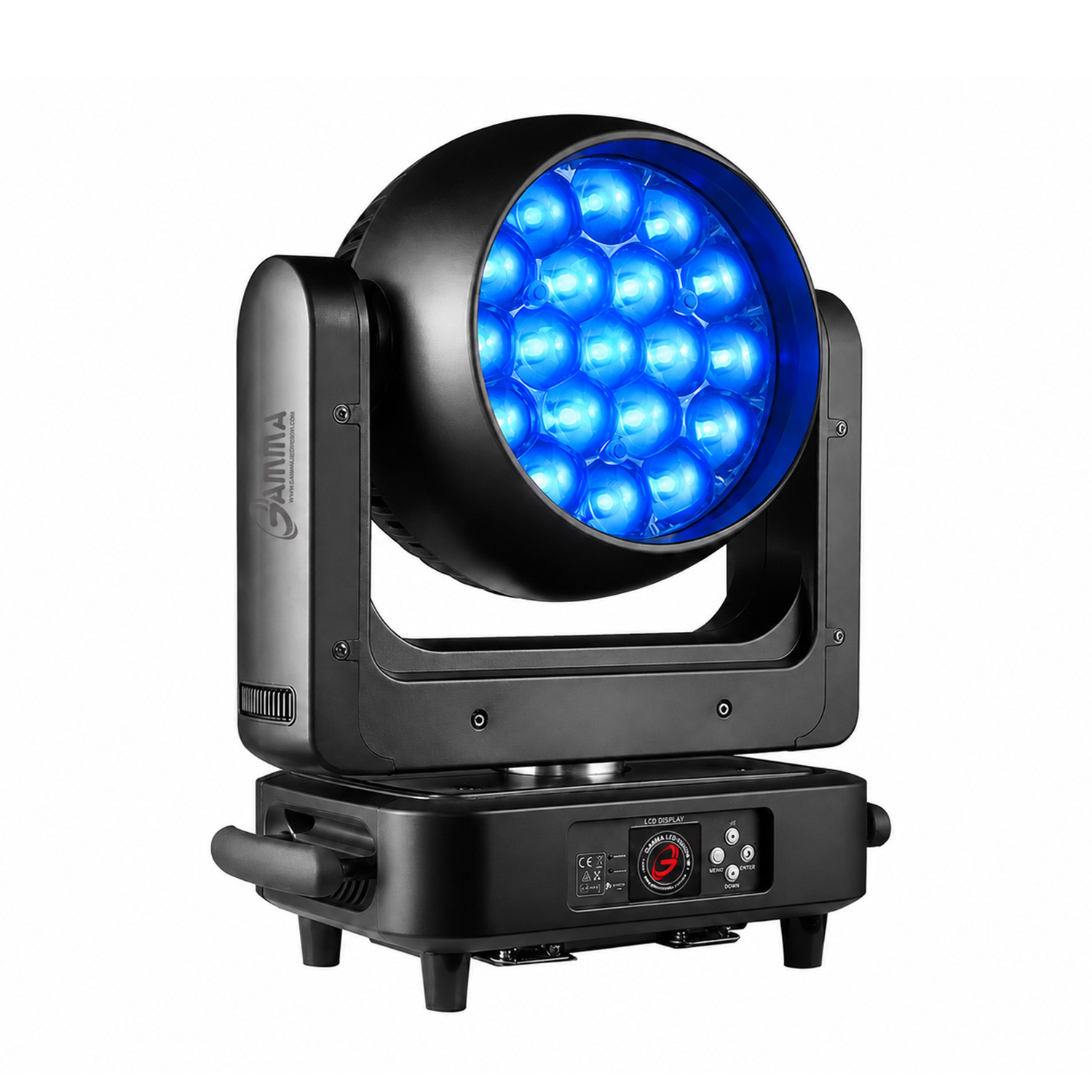

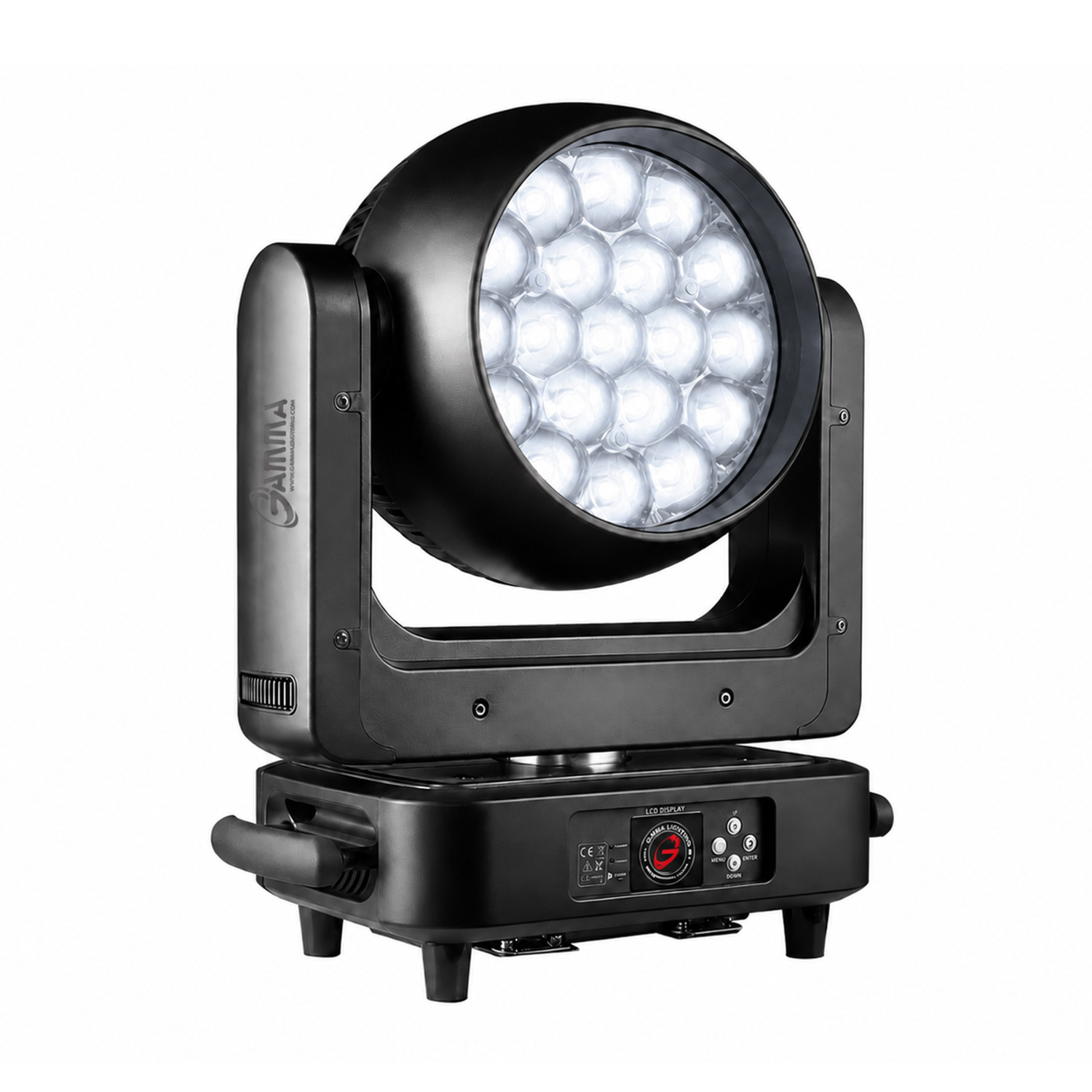

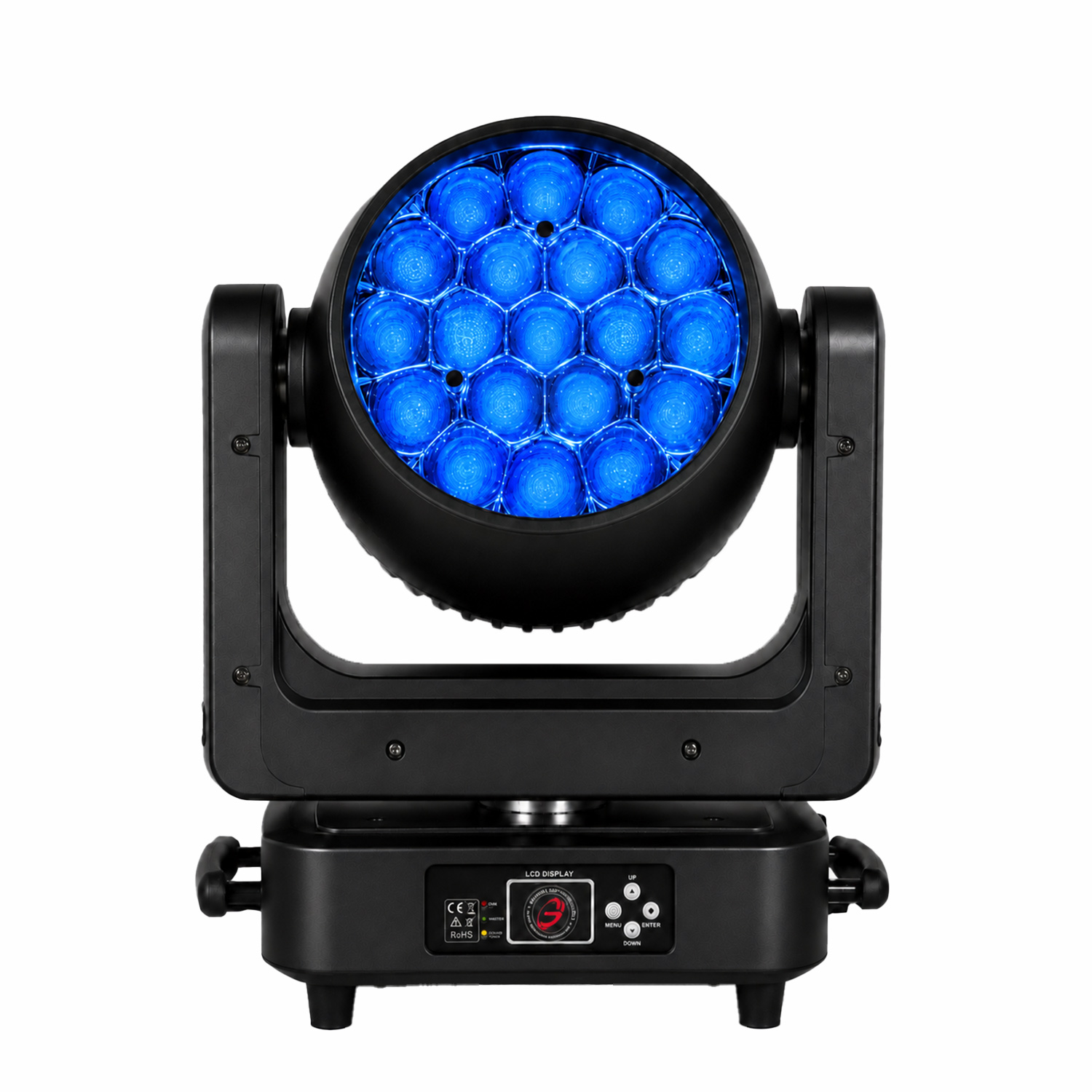

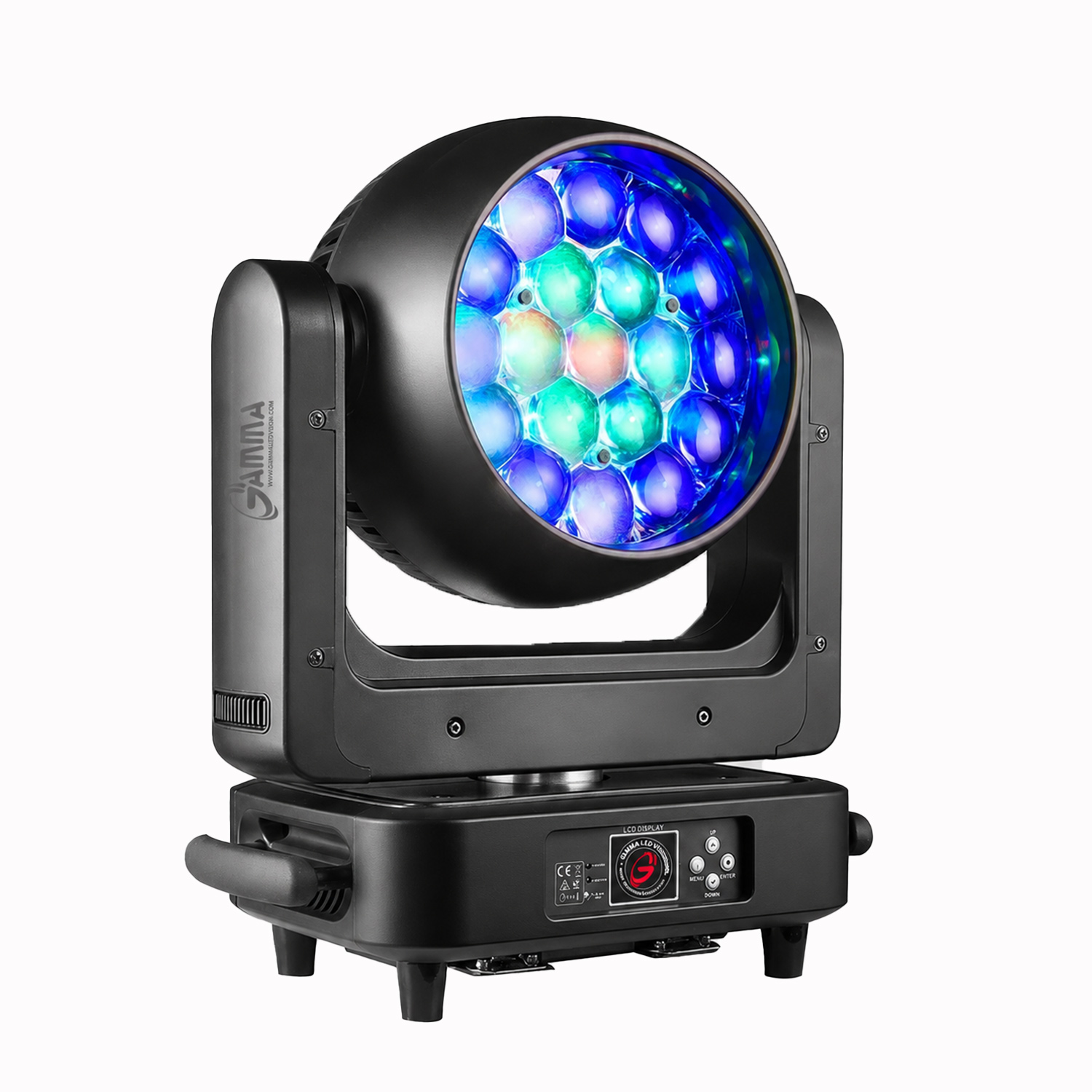

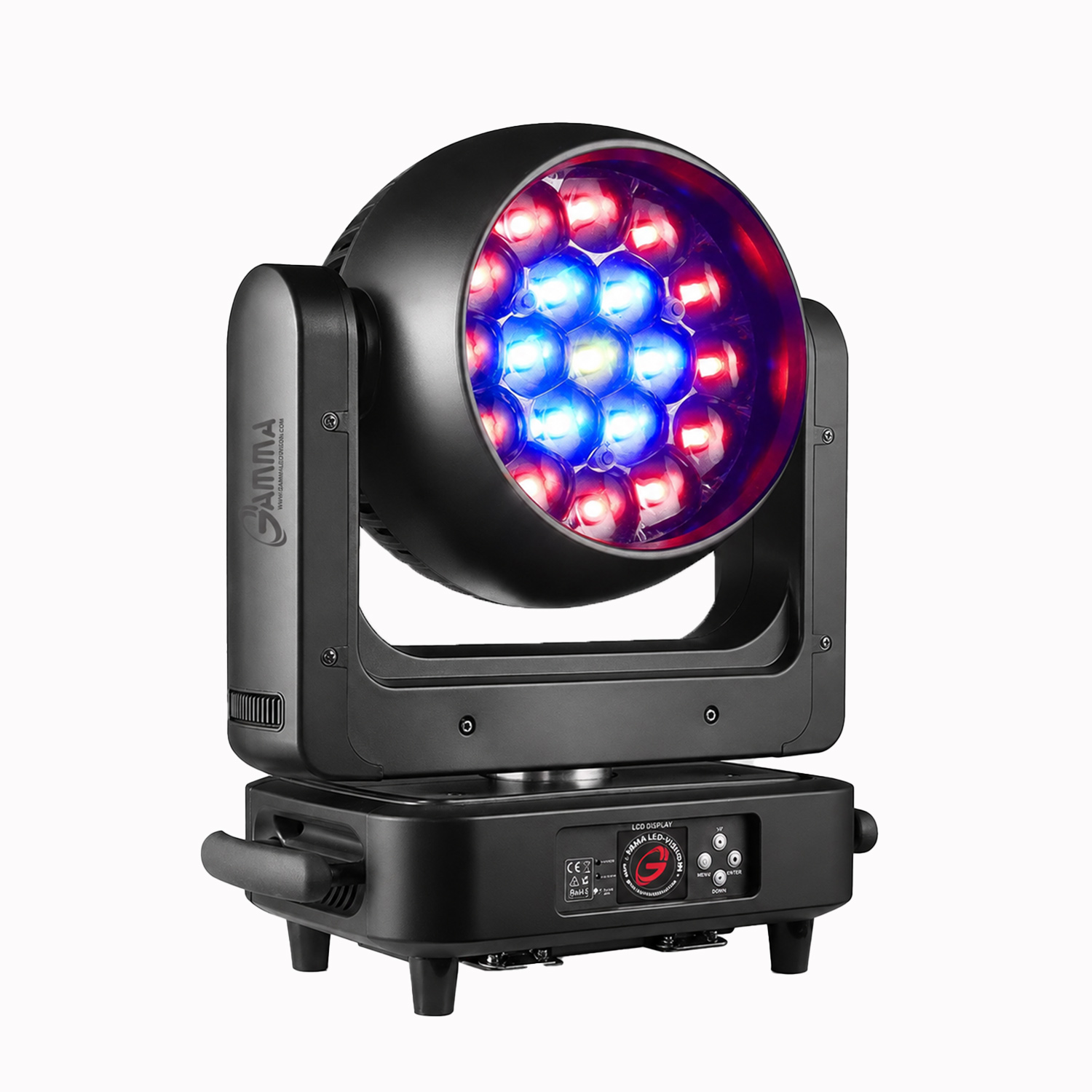

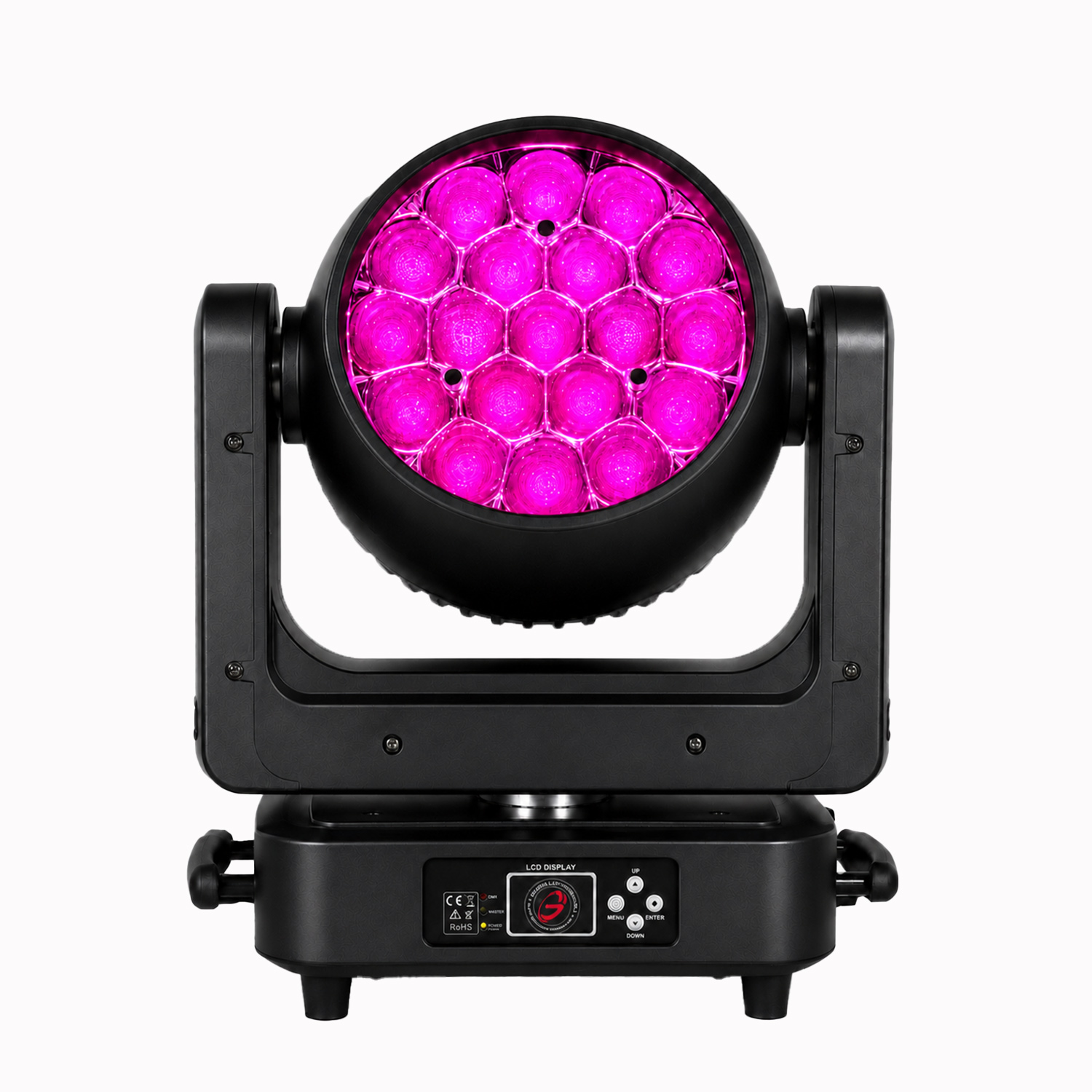

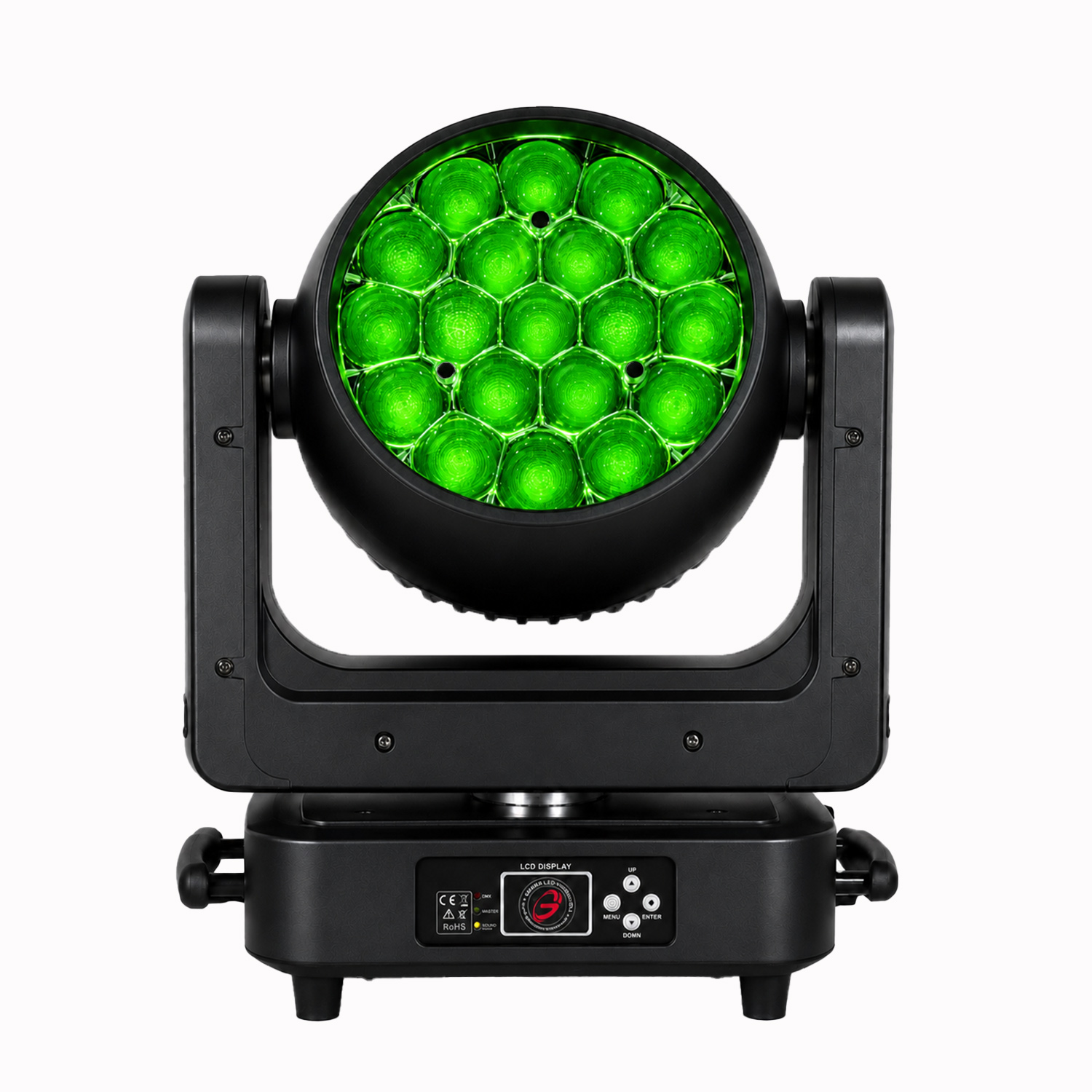

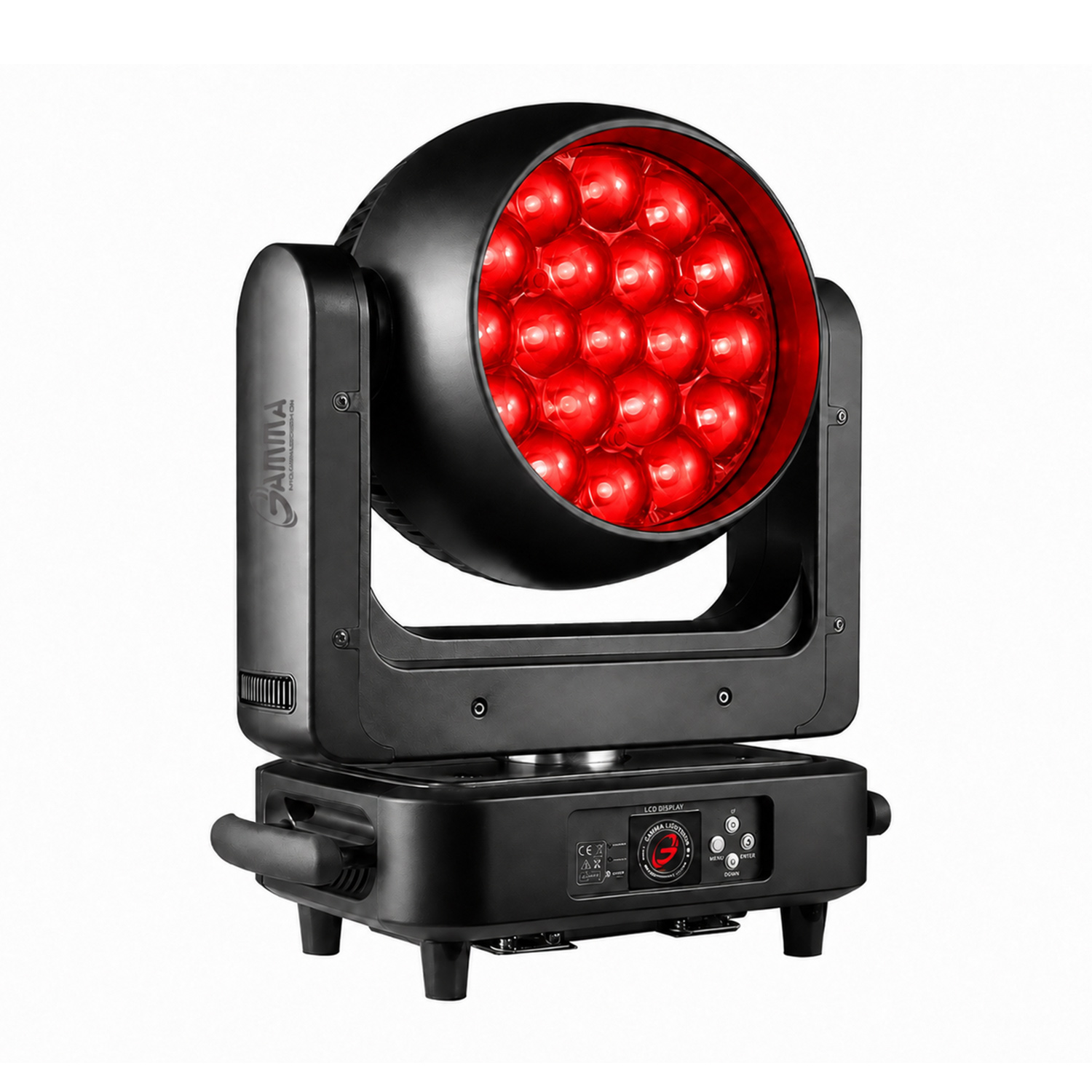

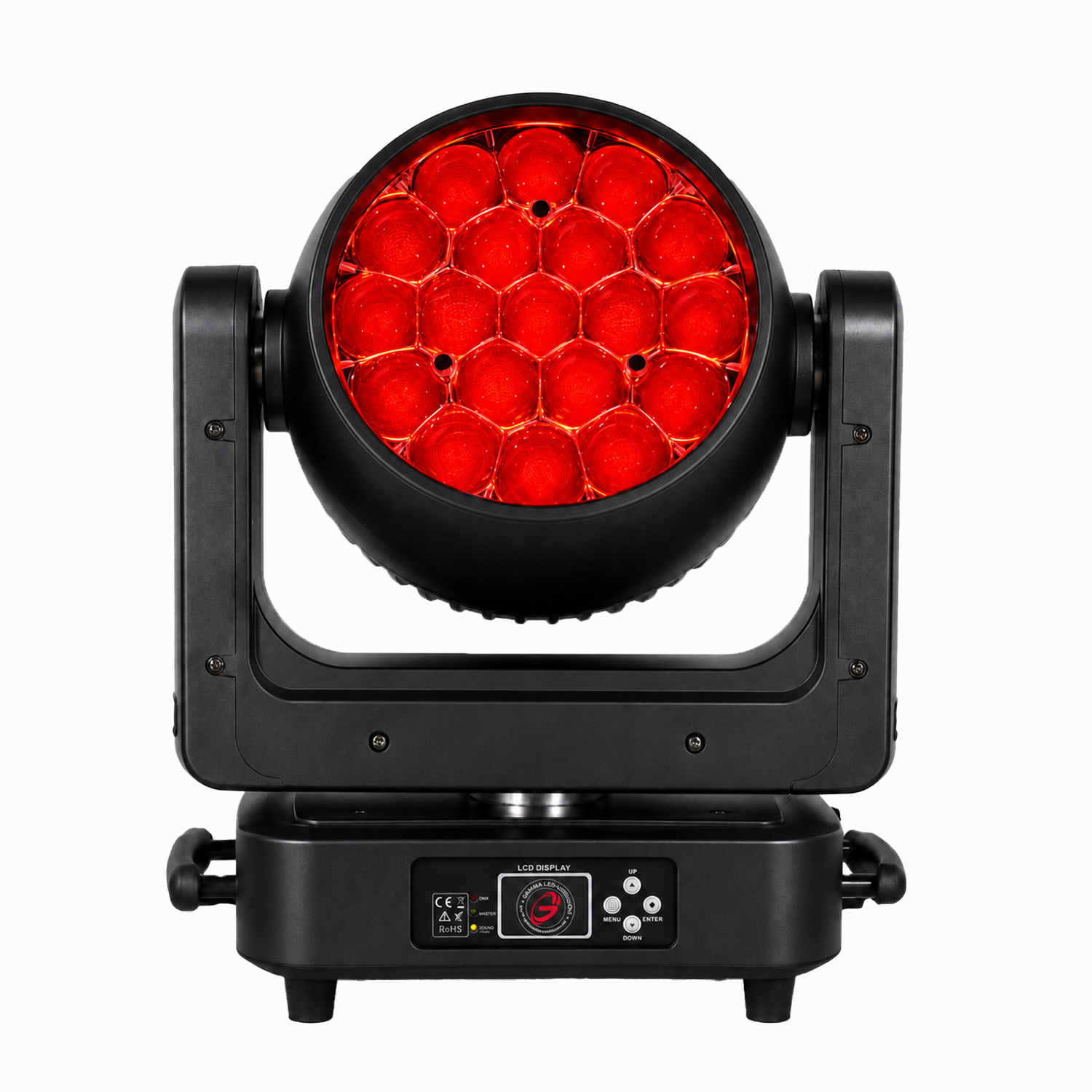

Silhouette Borealis X Z (Wash)
The Borealis X Z is a high intensity LED wash moving head with (19) 25 watt LED’s. Equipped with a 10º – 60º zoom range, this allows for the user to create a tight beam or a broad even wash. Additionally having the RGBW color mixing and 3 Zone ring control allow for amazing color wash & eye candy effects. Internally the fixture has a smart cooling system which allows the fan speed to lower or raise itself depending on the intensity and internal temperature. This fixture is ideal for any size venue no matter if small or big due to its compact lightweight design yet powerful LED’s.
Loading...
Light Source:
- LED Power: 19x25w LED’s
- LED Color Mixing: 4in1 (RGBW)
- Beam Angle: 10º – 60º
- Dimming: 0-100% 16 bit
- Strobe: 1-20 times/sec
- Color Output: Linear Color System
- 50,000 hours LED lifetime
Effects:
- 3 Zone Ring Control
- CTO: White color correction available
- Macros: Various macro effects available
- Strobe: High Speed Strobe Effect 1-25 flashes per second
Housing:
- Internal Housing: Die-casting Aluminum
- External Housing: High Temperature Strength Plastic
- Display: 4 Button Menu
- DMX in & out: 3-Pin & 5- Pin DMX input & output
- Power in & out: PowerCon™ input & output
Electrical:
- Voltage: AC100-240V
- Max Power: 475w
Control:
- Control Protocol: DMX 512/ 3-pin interfaces & RDM
- Control Modes: DMX, Auto run, Master/Slave, and Sound
- DMX Channels: 10 CH, 15 CH, 21 CH, 37 CH, 39 CH
Working Environment:
- Cooling System: Intelligent fan cooling system
- IP Grade: IP-20
Dimensions:
- Dimensions: 13.7 x 10 x 22″ in/22 lbs
User Manual
Photometrics
Controller Profiles
- Lightshark: “SiBorealXZ” (10/15/ 21 Channels)”
- Onyx: “Silhouette Borealis X Z” (10/15/21/ 37/ 39 Channels)”
- Grand MA:
- Hog 4: “Silhouette Borealis X Z” (10/15/21/ 37/ 39 Channels)”
- Chamsys:
- Jands Vista: “silhouette borealis x z”
- Lightkey:
