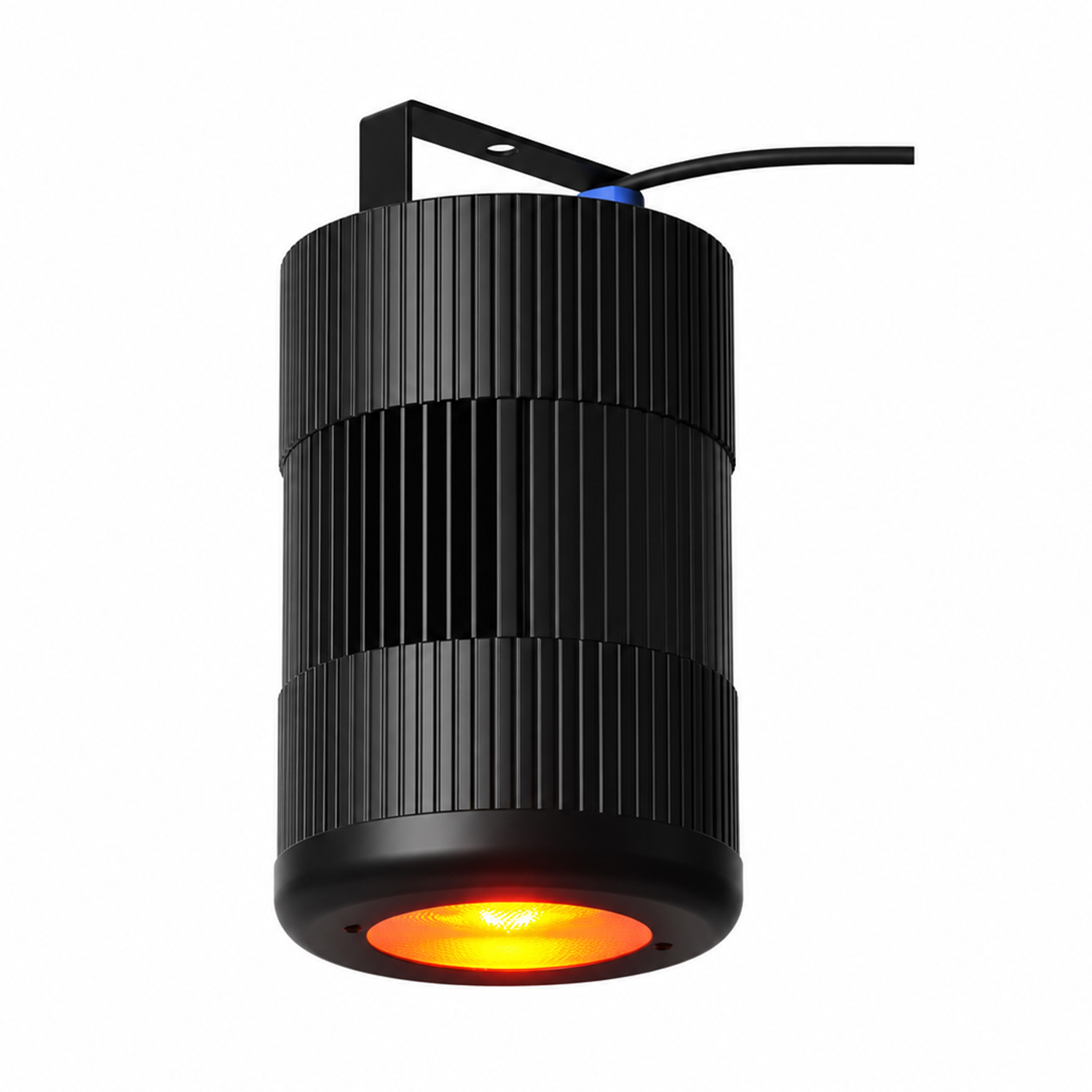

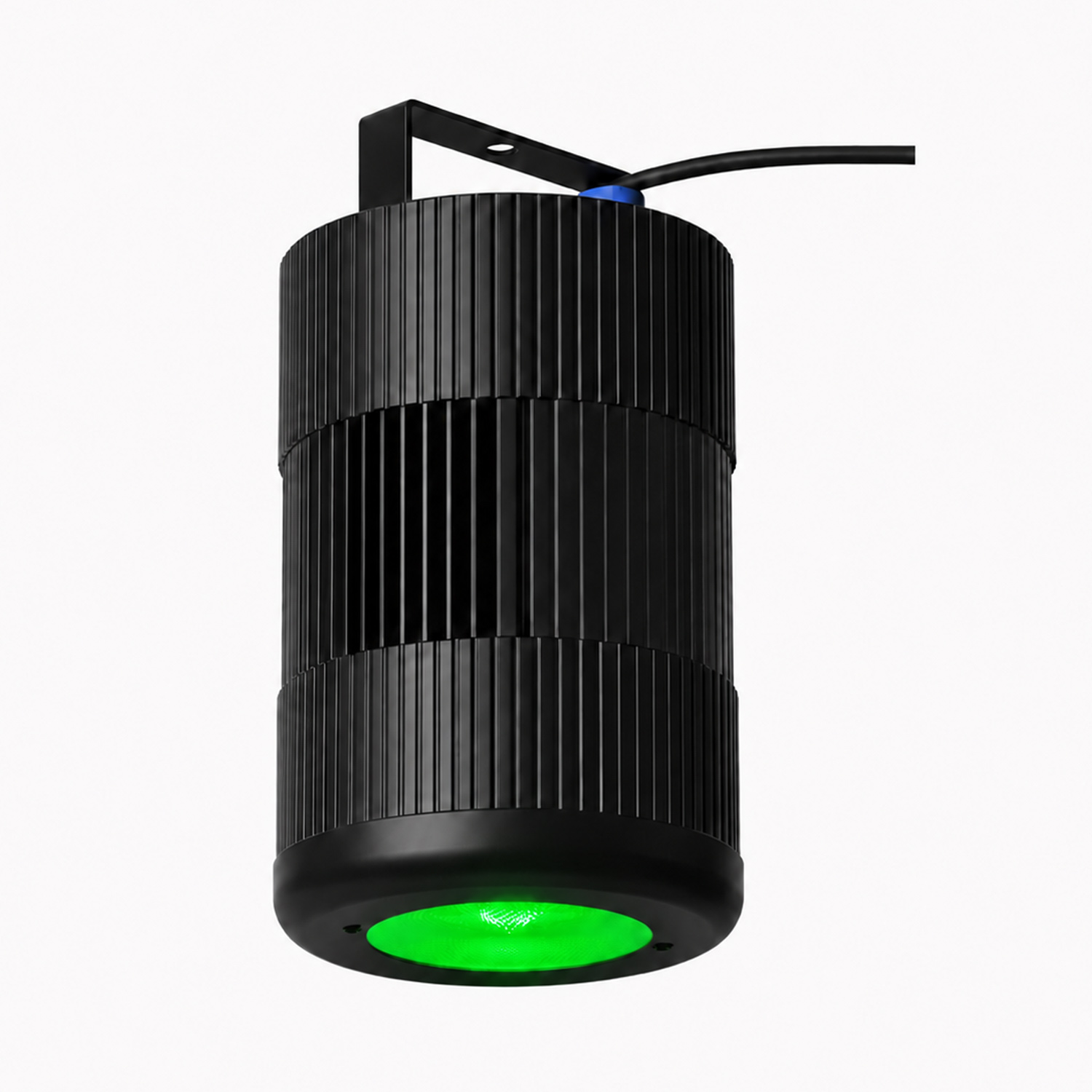

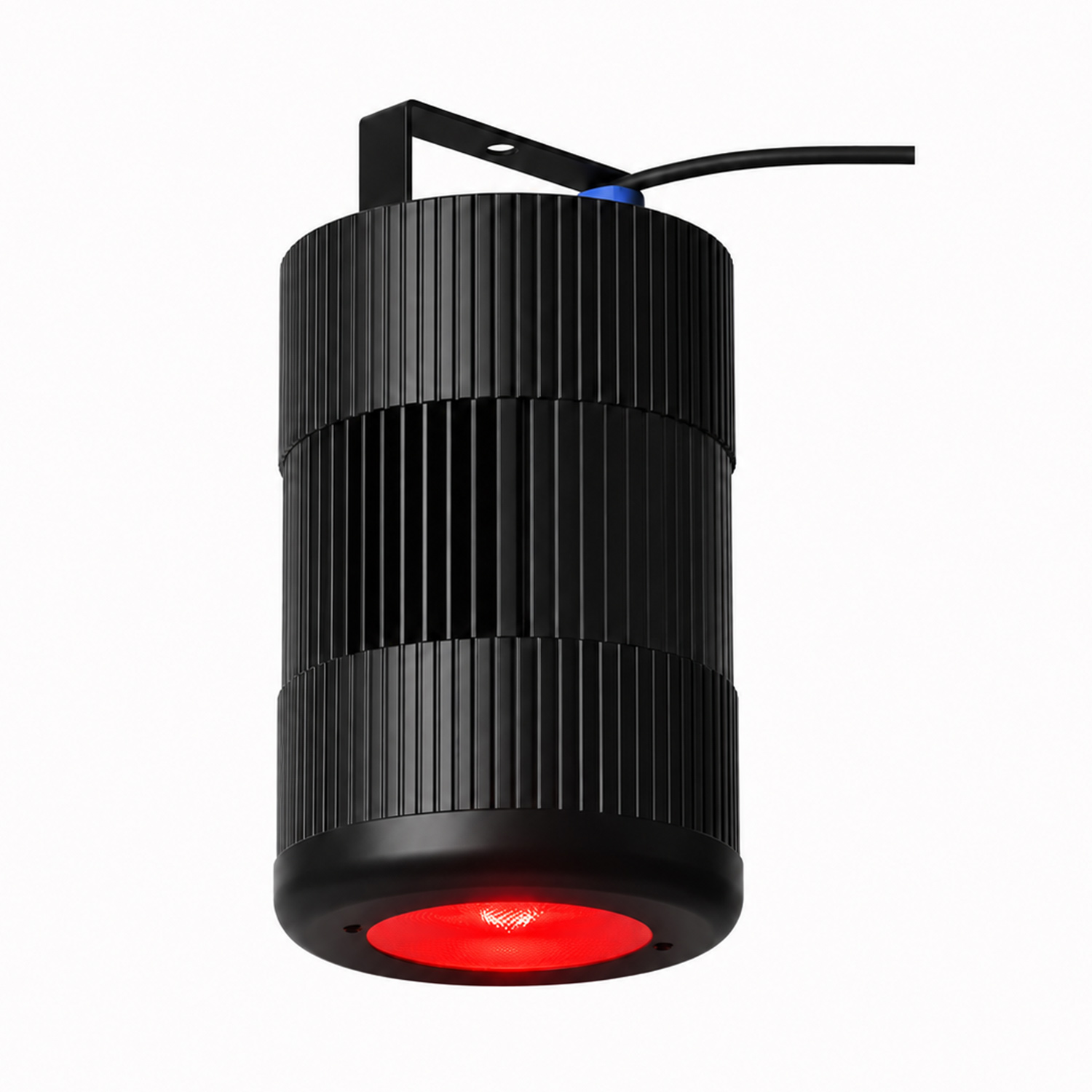

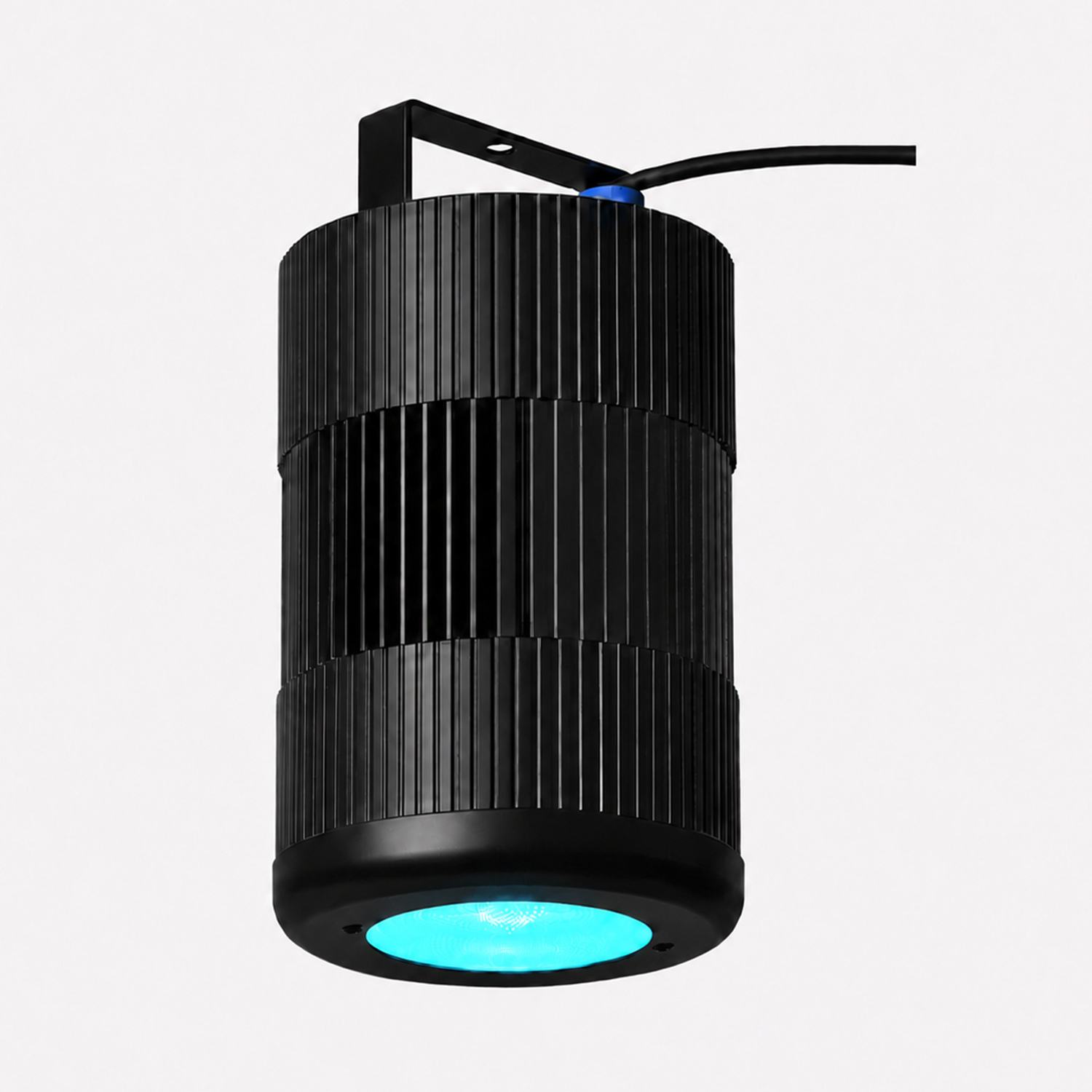

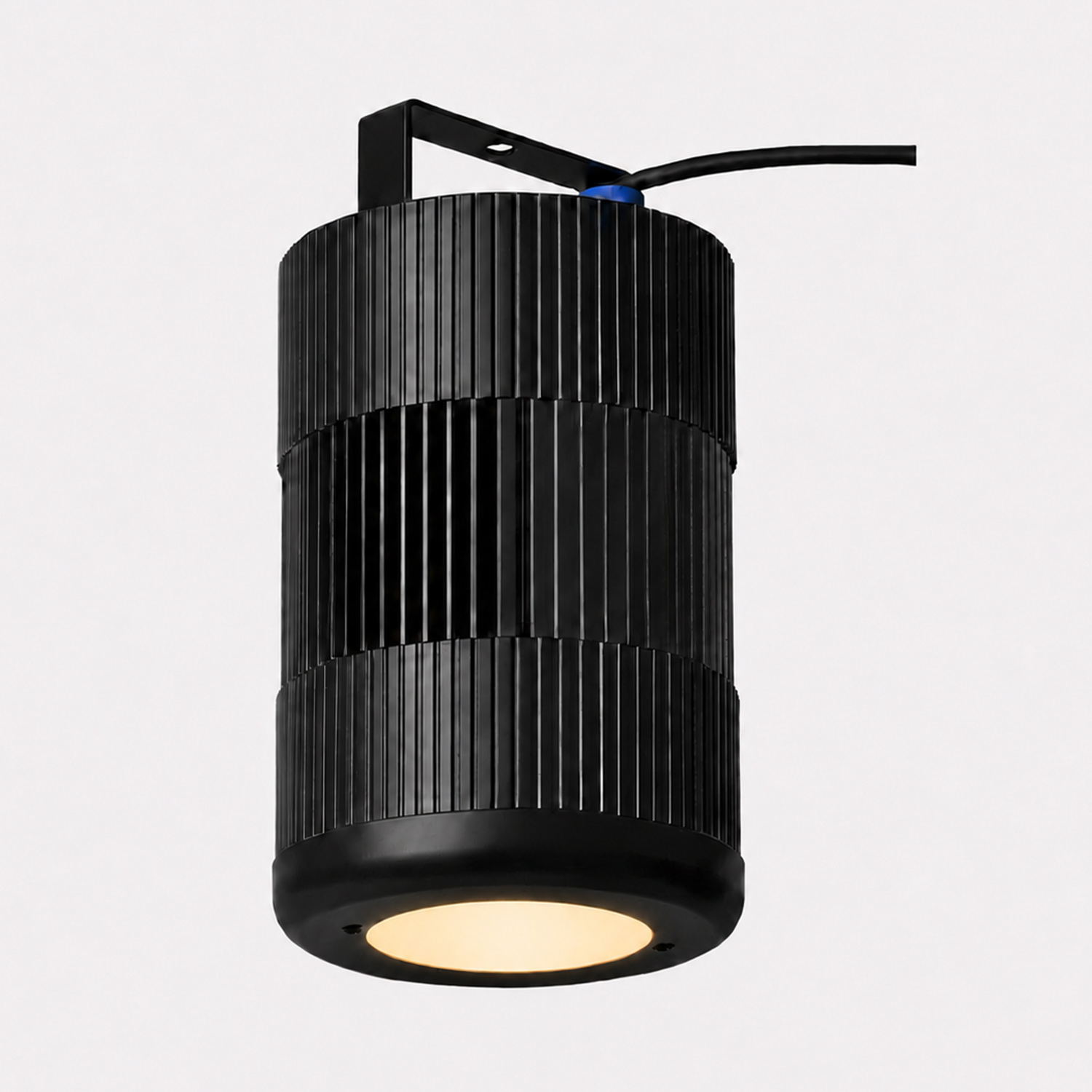

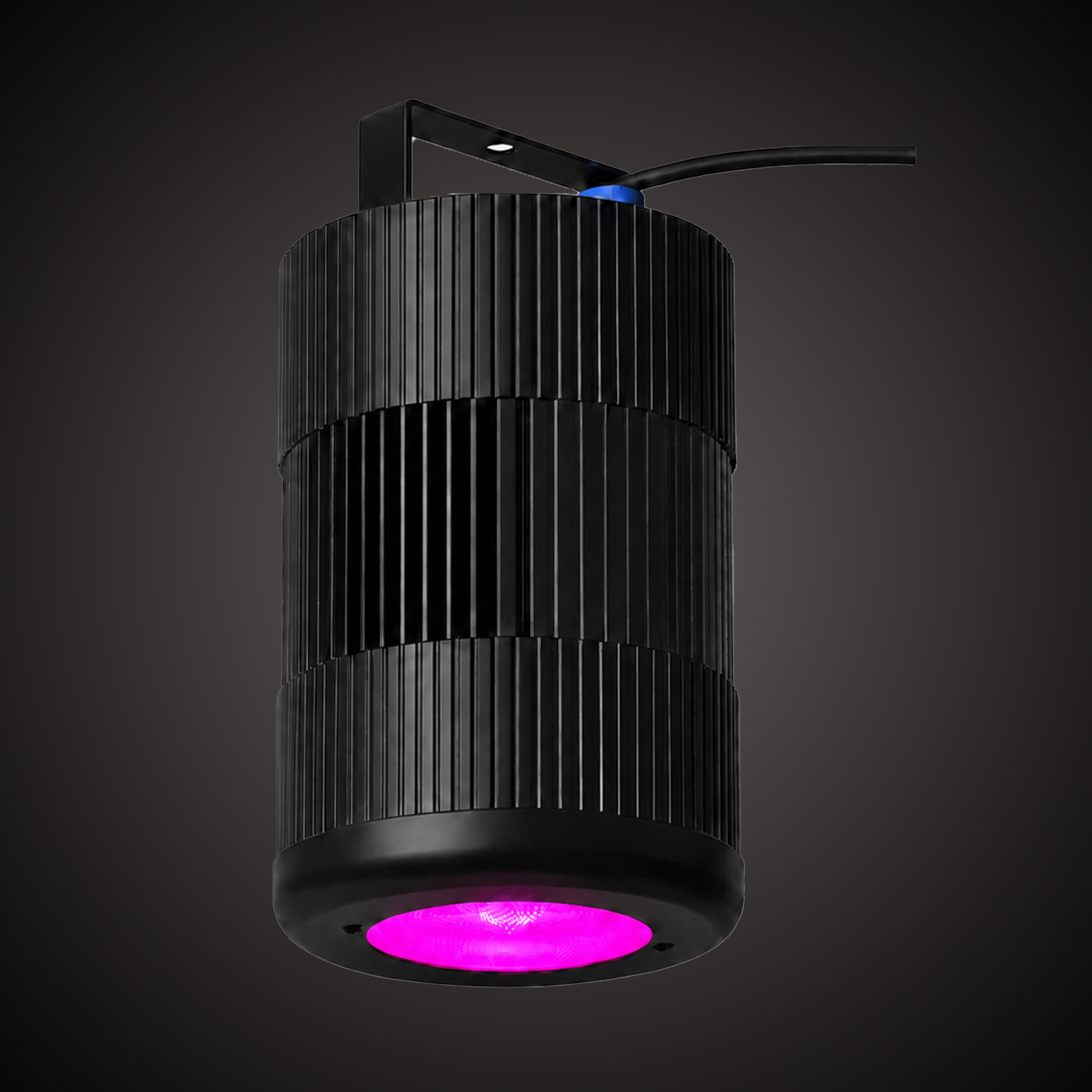

Lumina Mini Penn (House Light)

The Gamma Lumina Mini Penn House Light is the smallest of our house lighting fixtures. Compact and efficient, this multipurpose lighting fixture can be used to transform any room with its color mixing capabilities and options for either a 30º or 60º beam angle. Equipped with a 80w CREE R/G/B/WW LED and flicker free technology, this fixture gives a smooth & even wash without creating any uneven spots while never flickering on video/camera no matter what dimmer setting it’s on. This is an extremely important feature as most other professional lights use multiple different colors/ LED’s in order to create a certain color which can make it a bit distracting for any speaker, performer, or audience. Our Mini Penn LED house light fixes this issue by using only one single low power but high output LED source which creates the soft pastel, bold saturates, or true white’s color temperature that is desired while also generating low energy consumption. It’s also built with a sleek & compact design that allows it to keep cool without the use of a fan and also fit seamlessly into any infrastructure to give you a spectacular ambience while being quiet & inconspicuous. This fixture is typically stocked with a Red, Green, Blue, Warm White color mixing option but other color options are available by special order (See “Options Available” tab below).





Loading...

Light Source:

  • LED Power: 80W/ 24 CREE XB-D LED’s
  • LED Color: Color Options (4in1) or True White Options (2in1) Available
  • Flicker Free Technology: No flickering during filming or video
  • 50,000 hours LED lifetime

Power supply:

  • Voltage: AC100-240V
  • Max Power: 80w

Optics:

  • Beam Angle: 30º or 60º
  • Dimming: 0-100% linear smooth dimming
  • Strobe: 1-25times/sec

Features:

  • Housing: Die-casting Aluminum
  • Color Output: Linear Color System
  • Technology: 24 LED’s/ 1 single low power, high output source
  • Touch screen: LCD with touch screen
  • DMX in & out: Phoenix input and output
  • Power in: PowerCon™ input

Control:

  • Control Protocol: Phoenix input and output
  • Control System: DMX, Auto run and Master/Slave
  • DMX Channels: 4CH, 5CH, 7CH, 9CH

Working Environment:

  • Cooling System: Convection cooling system (Quiet) (Fan-less)
  • IP Grade: IP-20

Package:

  • Net Weight: 7.7 lbs / 3.5 kgs
  • Dimensions: 6.9 x 6.9 x 12” in /175 x 175 x 303 mm (with bracket)
  • Dimensions: 6.9 x 6.9 x 9” in /175 x 175 x 228.5 mm (without bracket)

User Manual

Options Available

See this option:

Housing and Lens Options:

  • (Available in Black or White Housing)
  • (Beam Angle: 30º or 60º)

Several Color Options available by special order below:

  • R/G/B/WW (4in1) (Typically stocked with this option)
  • R/G/B/W   (4in1)
  • Warm White & Cool White (2in1)
  • Cool White Only
  • Warm White Only

Photometrics: 35º

Photometrics: 60º

Controller Profiles

  • Lightshark: “PennMini” (4/5/7/9 Channels)
  • Onyx: “PennMini” (4/5/7/9 Channels)
  • Grand MA: “gamma@penn_rgbw” (4/5/7/9 Channels)
  • Hog 4: “Penn” (4/5/7/9 Channels)
  • LightKey: “Penn” (4/5/7/9 Channels)
  • Avolites: “Penn” (4/5/7/9 Channels)
