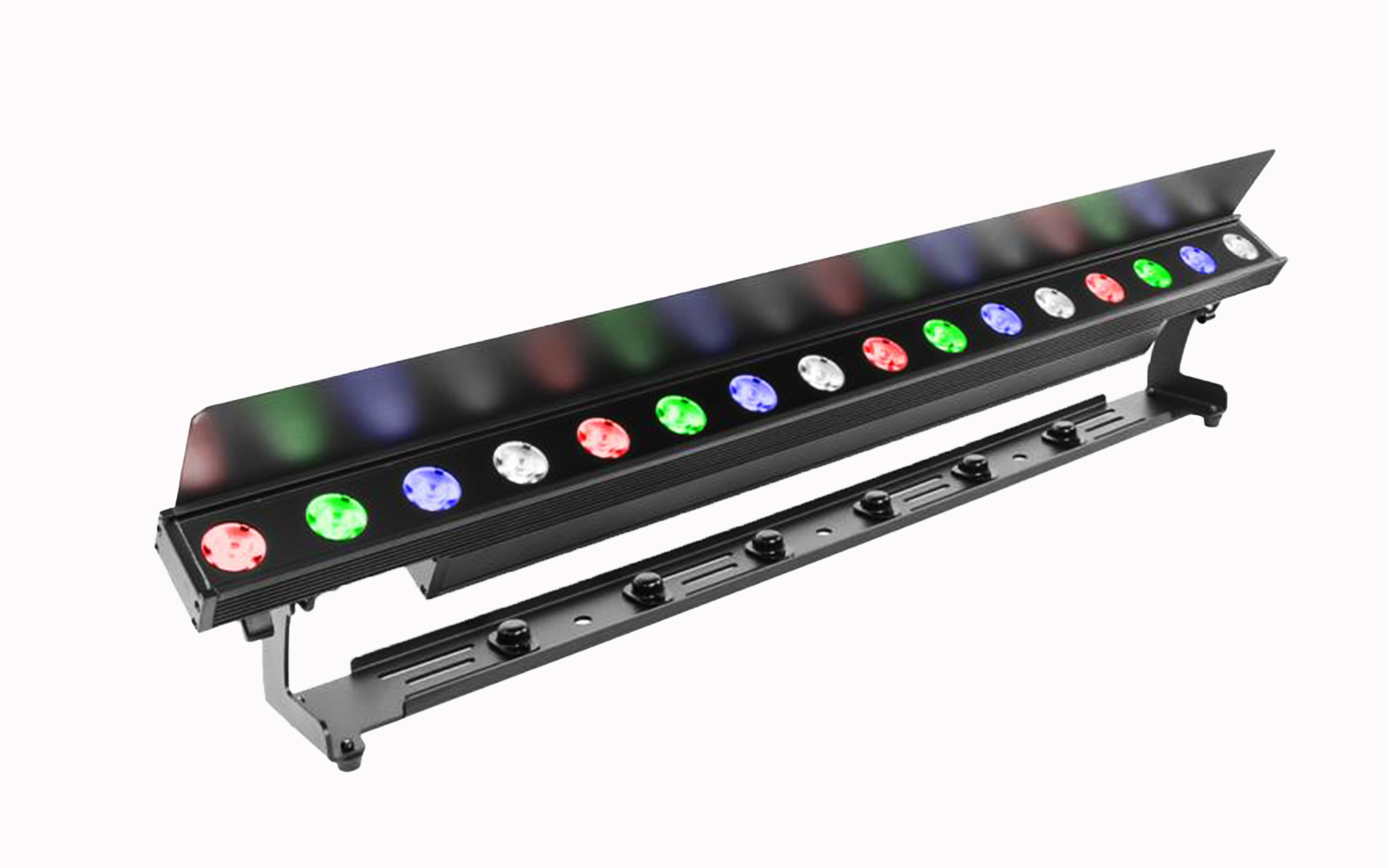

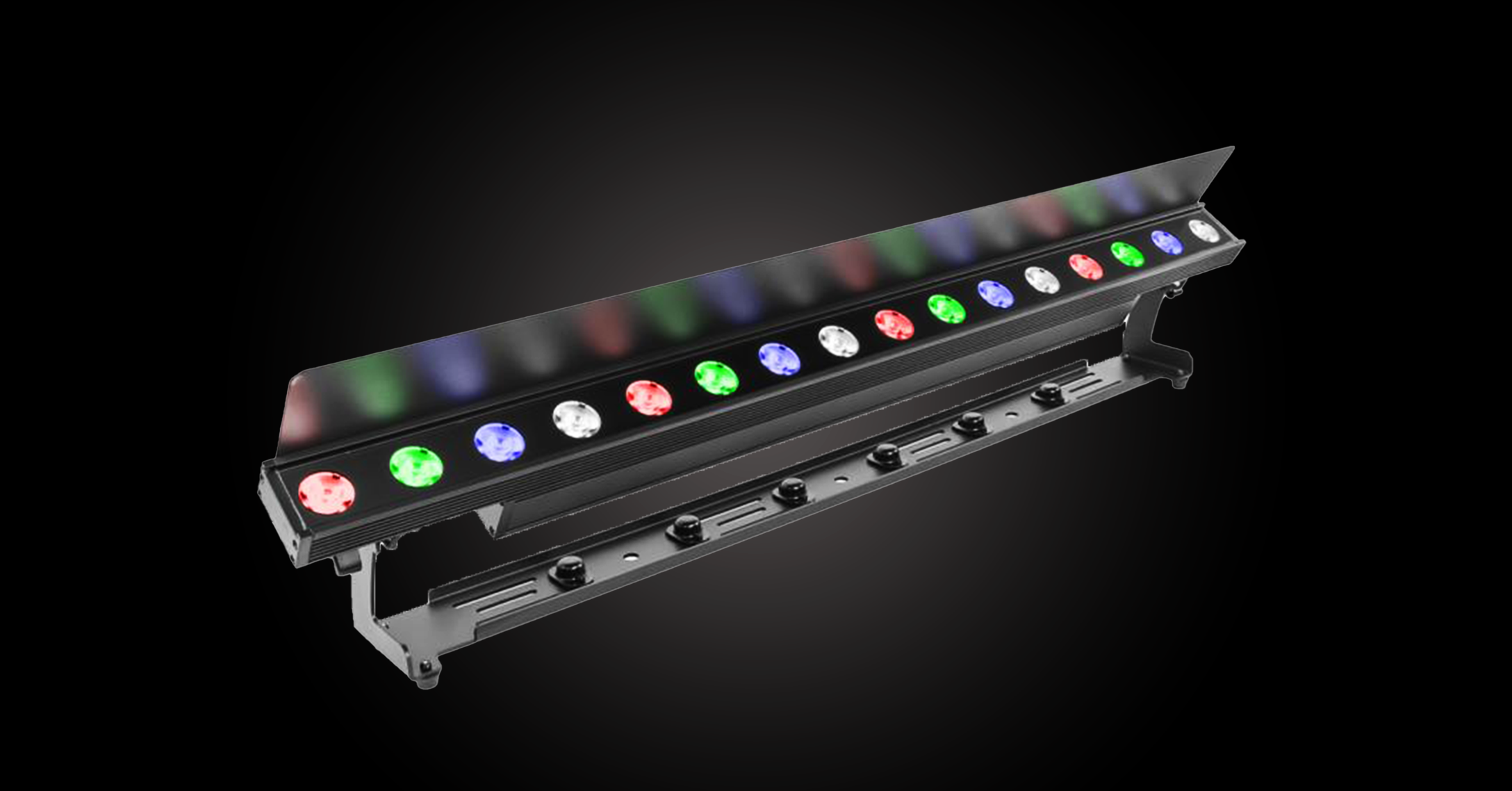

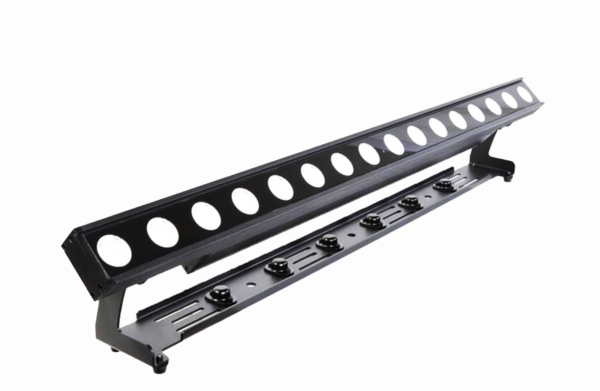

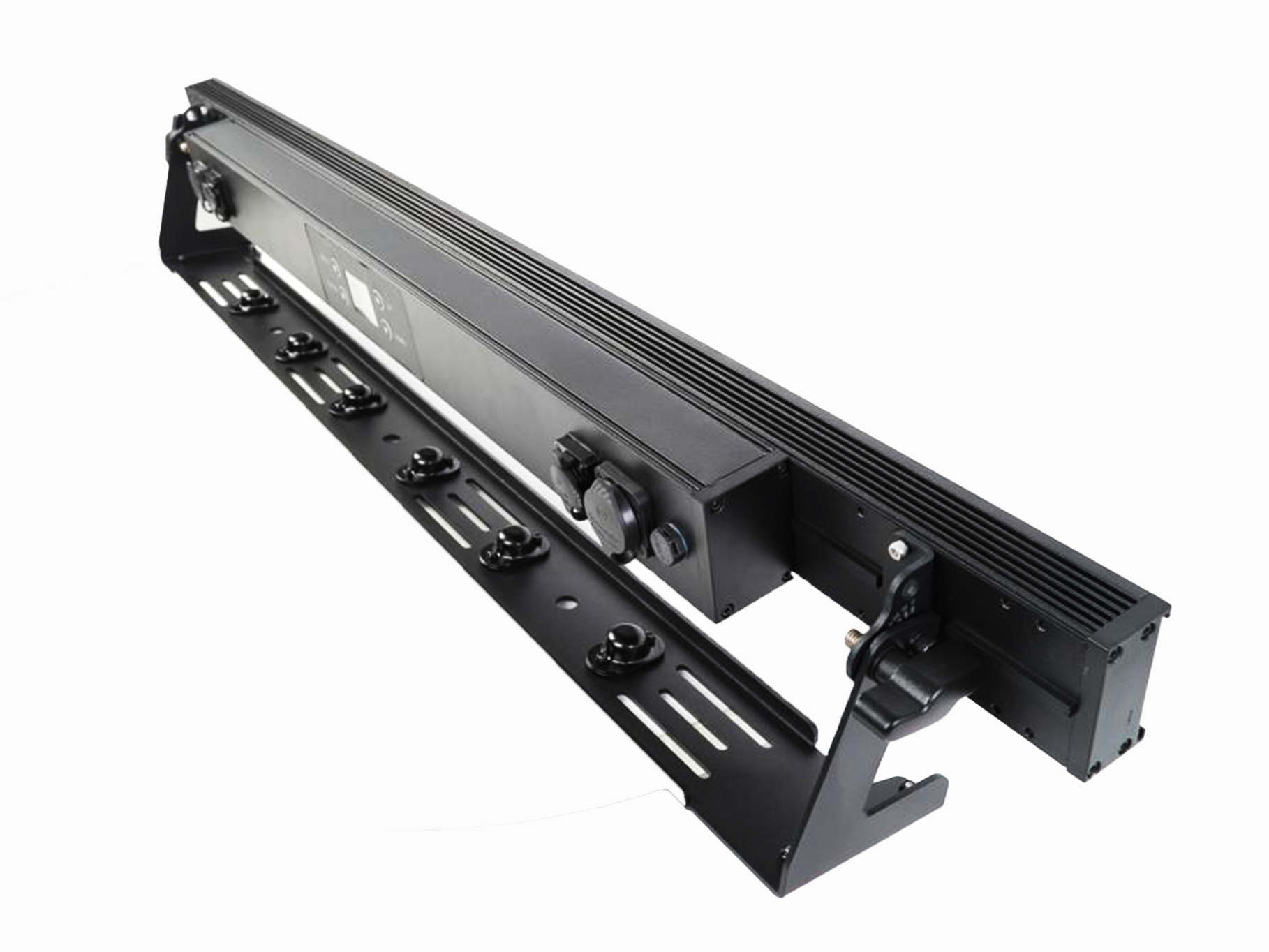

Mist Pixbar IP (16x10w)
Outdoor (Mist Series)
The Mist Pixbar IP is a powerful & sleek wash fixture that contains (16) 10 watt LED’s. This fixture is outdoor rated (IP-65), along with having pixel mapping capabilities which gives the user individual control of each LED. A perfect fixture for color washing any area as it provides smooth color mixing with its RGBW (4in1) LED’s and a 20º lens angle. Physically, this fixture has a Die Casting Aluminum housing which keeps its internal temperature cool for a fan-less/ quiet design. The dual rigging brackets allow for floor standing or hanging installations.
Loading...
Light Source:
- LED Power: (16) 10w LED’s
- LED Color: 4in1 (RGBW)
- Flicker Free Technology: No flickering during filming or video
- 50,000 hours LED lifetime
Power supply:
- Voltage: AC100-240V
- Max Power: 120w
- True One™ Power con in/out
- DMX in & out: 3-Pin DMX input & output
Optics:
- Beam Angle: 20º
- Dimming: 0-100%
- Pixel Mapping
- Strobe: 1-20 times/sec
Features:
- Housing: Die-Casting Aluminum
- IR Remote control
- Barndoor
- Frost Filter
- Joint Bracket: Fast connection between 2 fixtures
- Color Output: Linear Color System
- Display: LED Display
- DMX in & out: 3-Pin DMX input & outpuT
- Tilt Brackets (Horizontal Installation)
- Omega Brackets (Horizontal Installation)
Control:
- Control Protocol: DMX 512/ RDM
- Control System: DMX, Auto run, Master/Slave, and Sound
- DMX Channels: 3CH, 7CH, 11CH, 32CH, 36CH
Working Environment:
- IP Grade: IP-65
Dimensions:
- Net Weight: 9 lbs / 4 kgs
- Dimensions: 39.3 x 3.5 x 4.4″ in
