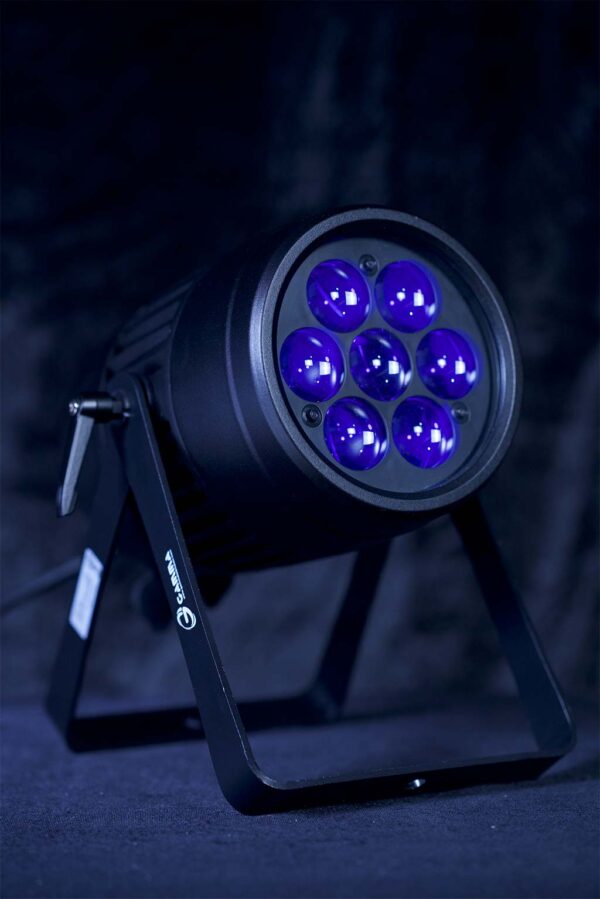

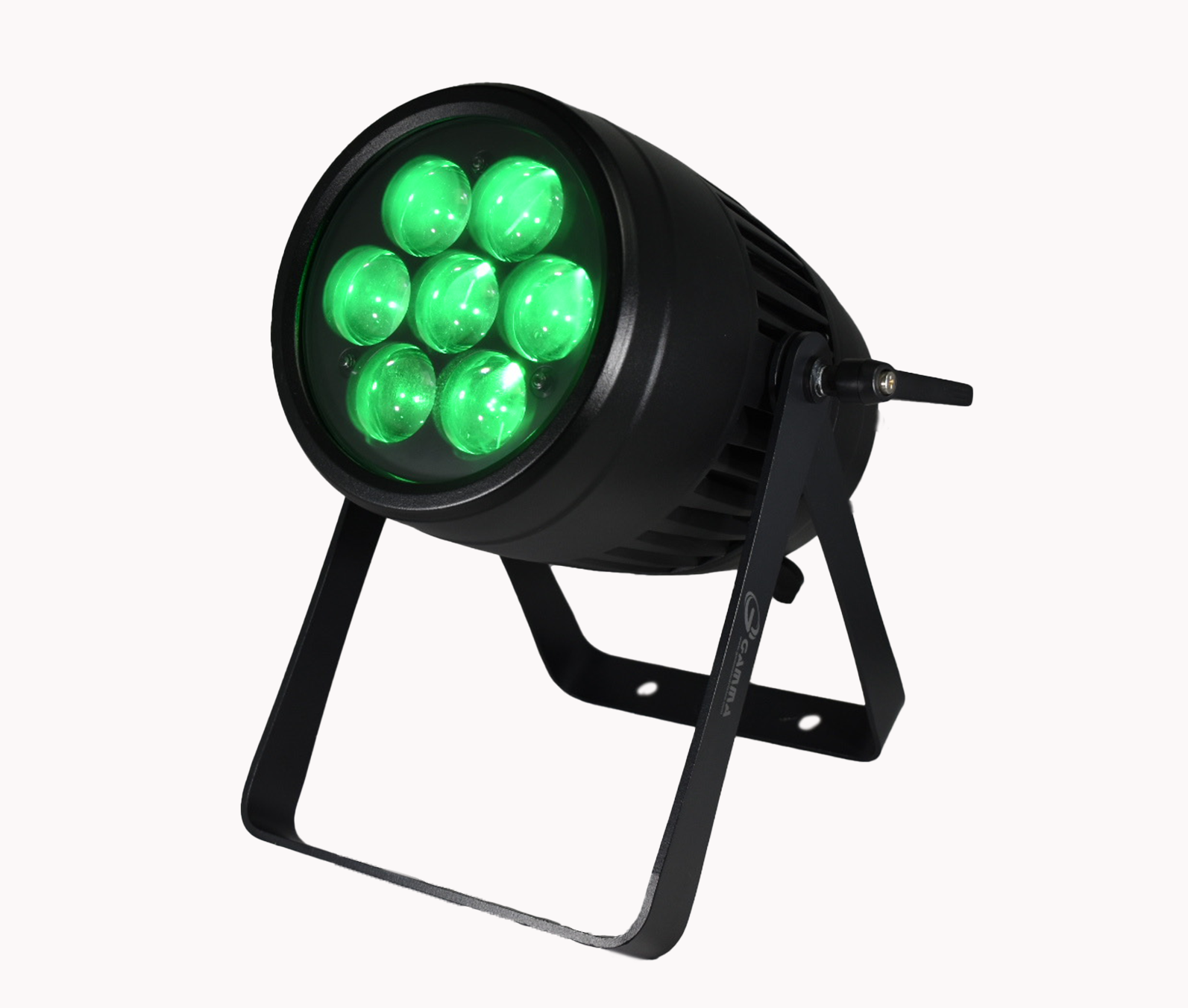

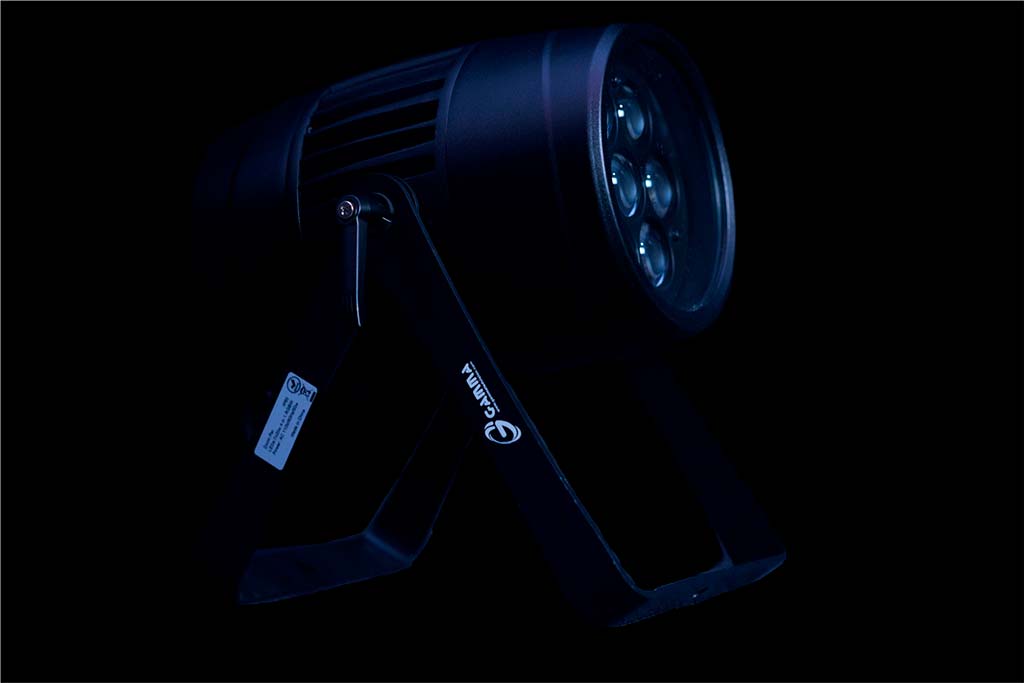

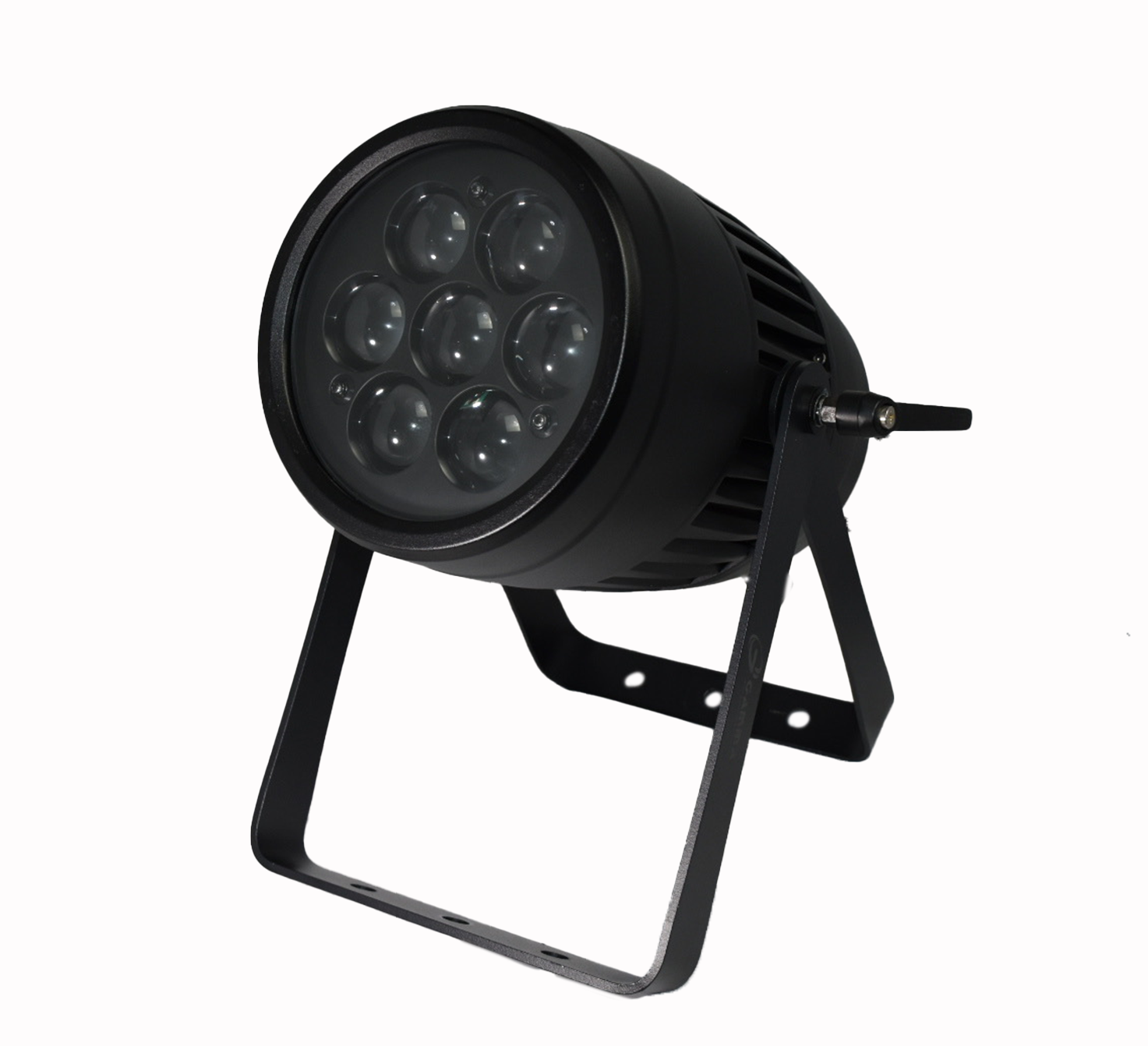

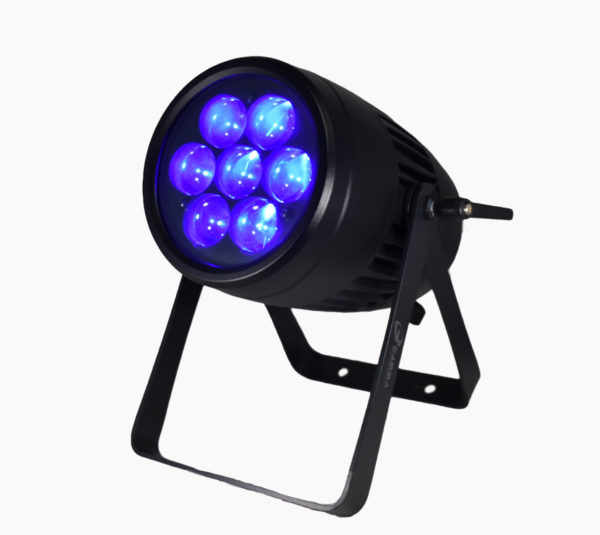

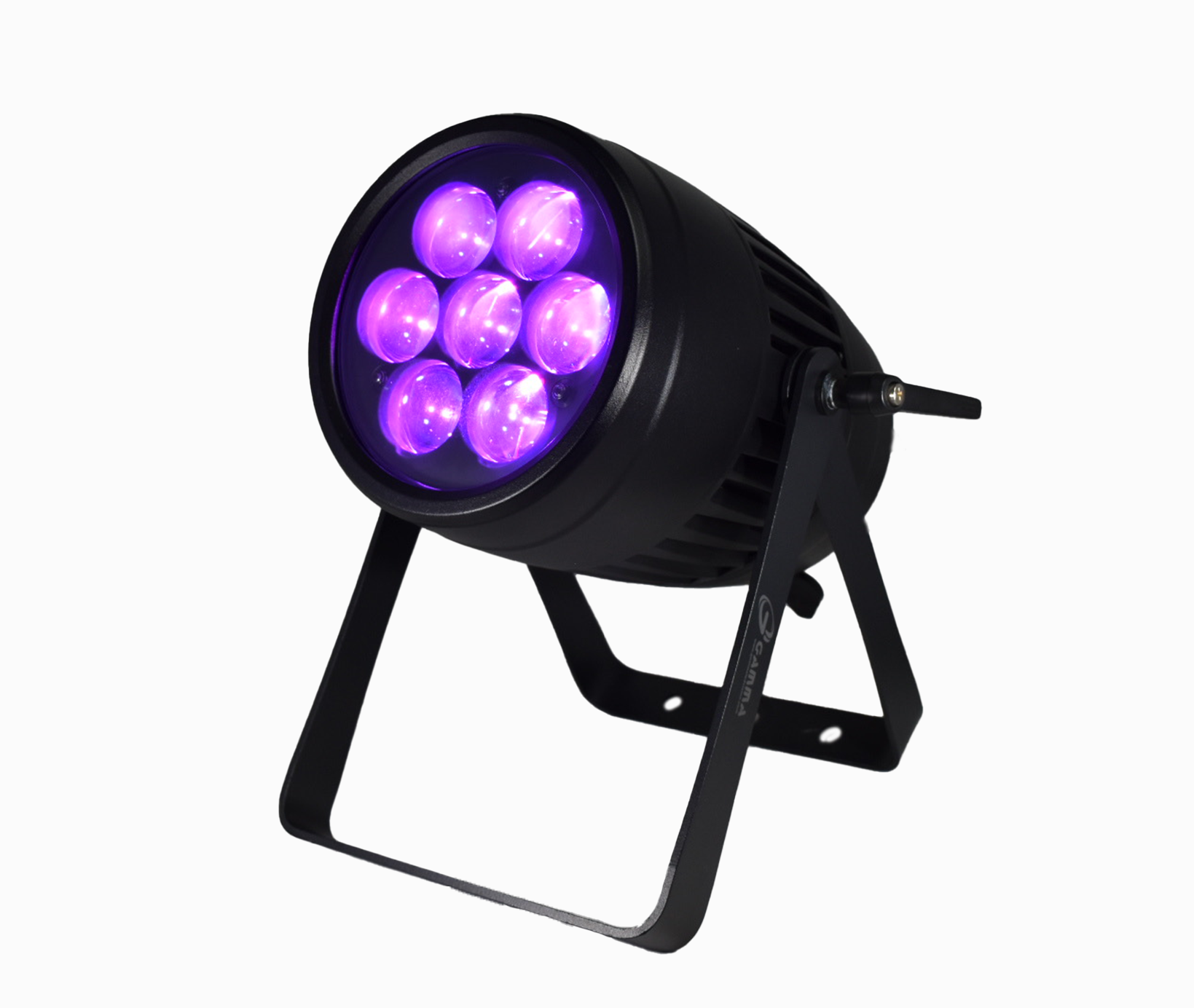

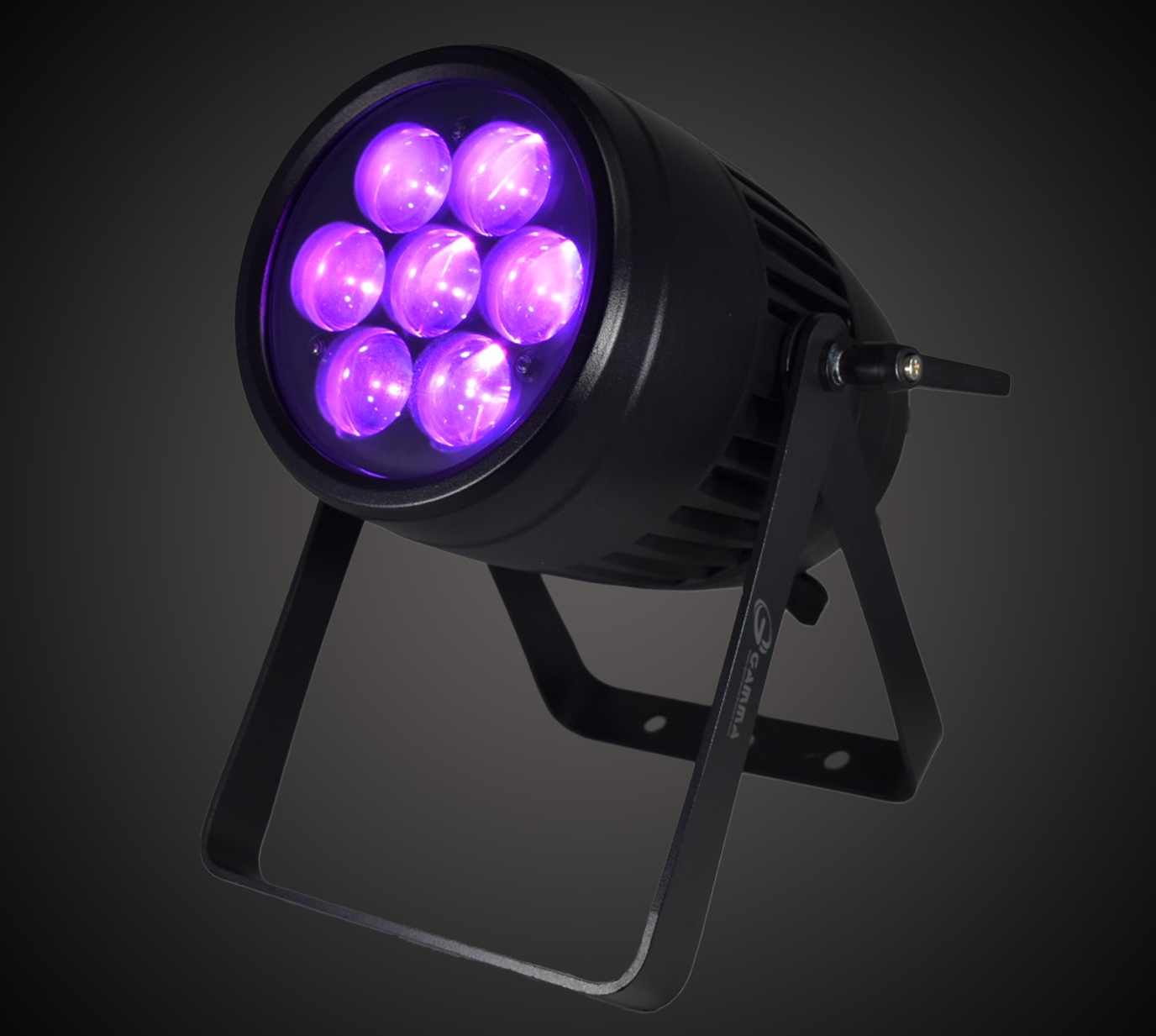

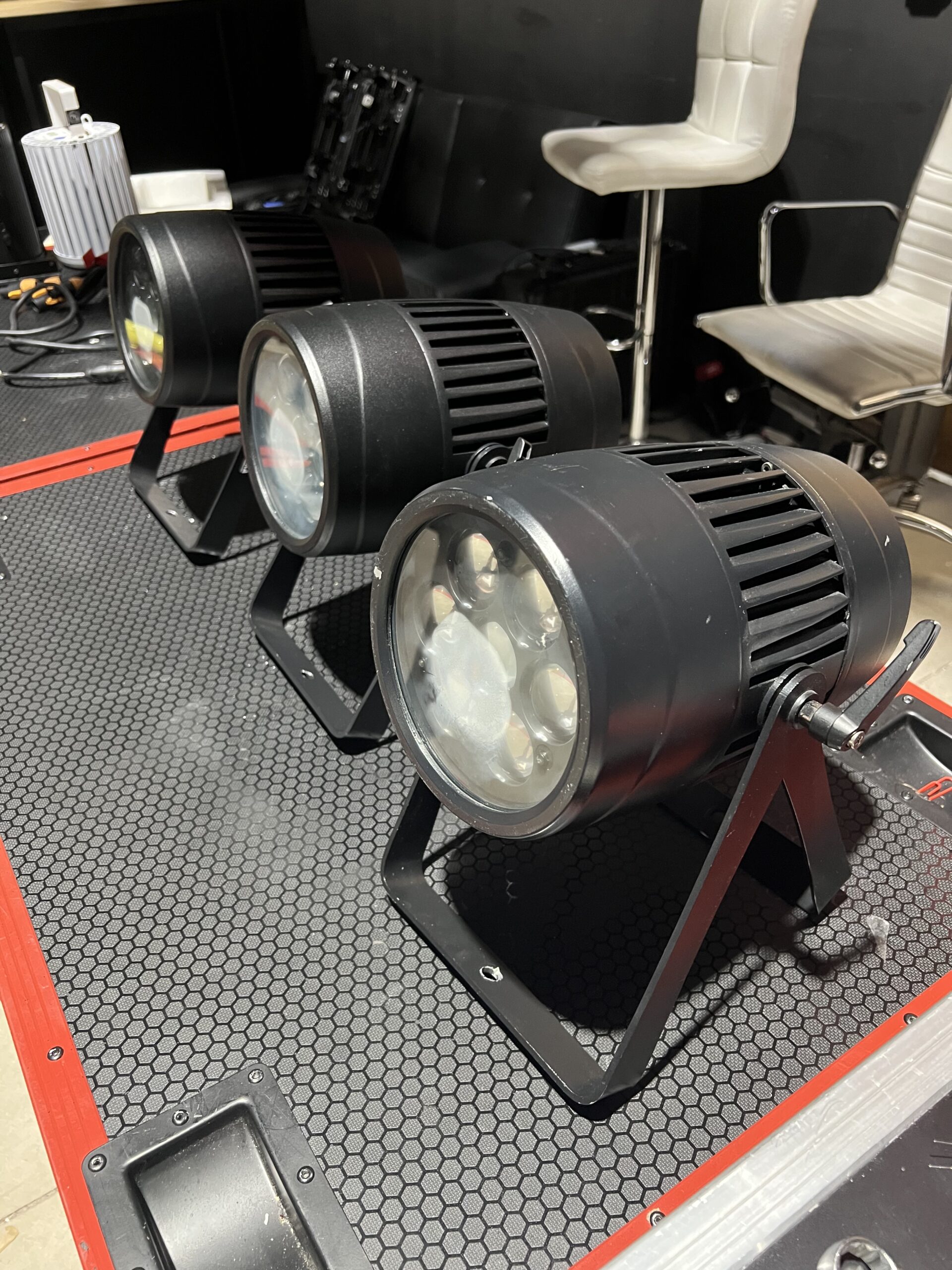

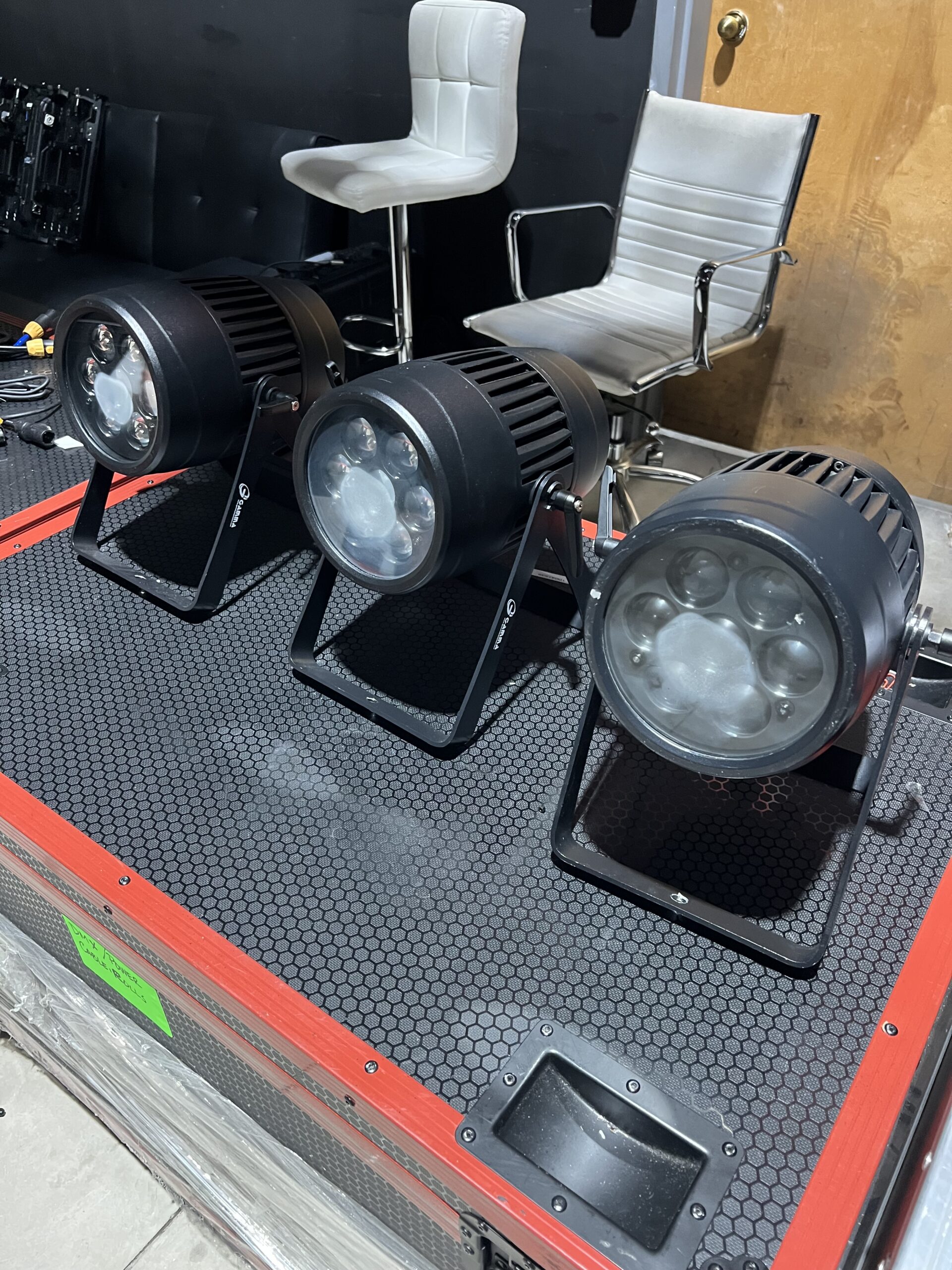

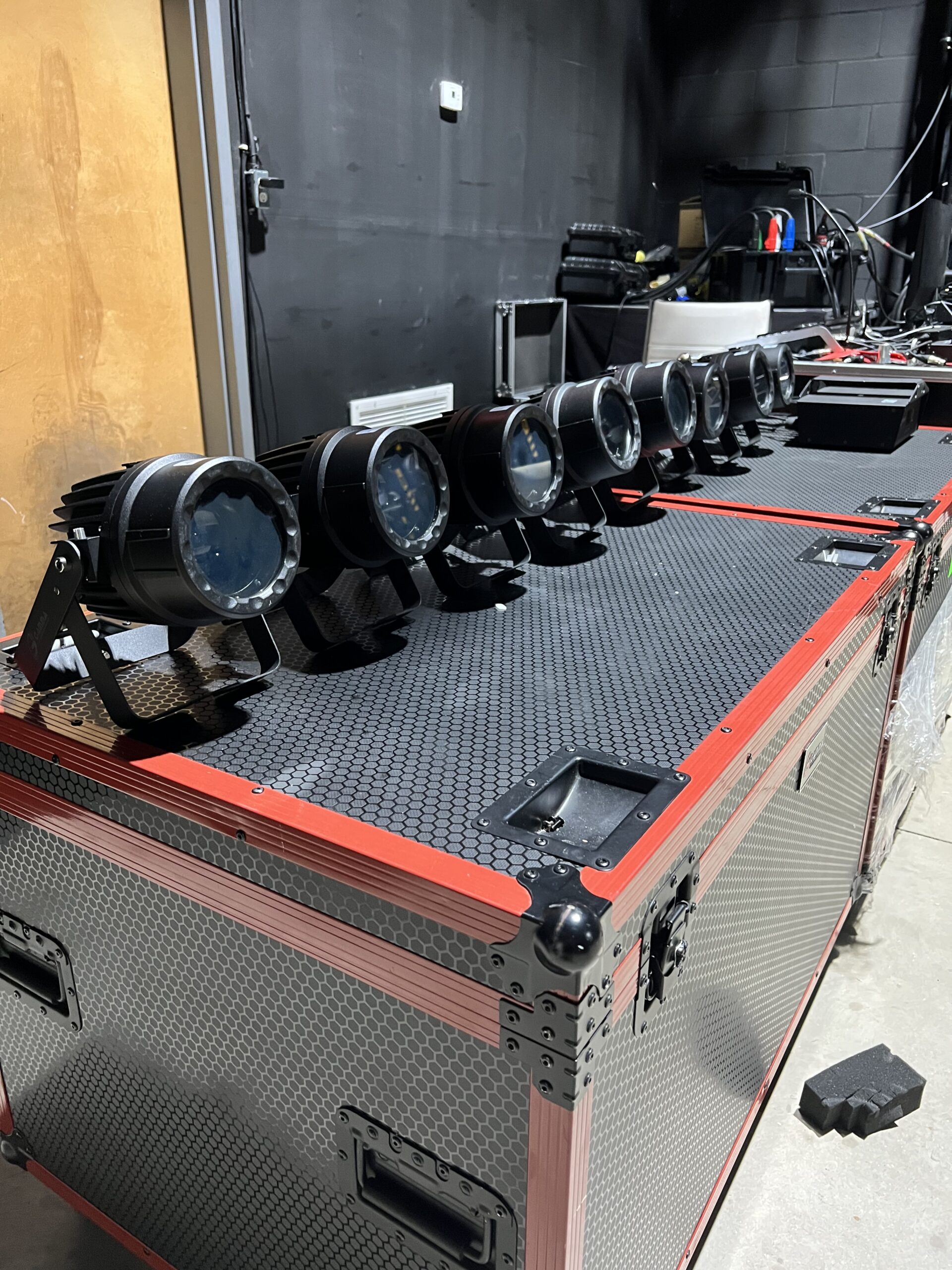

Mist Xenon 7×20 Z IP
Outdoor (Mist Series)
The Mist Xenon 7X20 Z IP is integrated with (7) 20w LED’s that provide the user with 4in1 (RGBW) color mixing and an automatic zoom feature which can wash an area from 8º-50º. In addition, its Die Casting Aluminum housing that is IP-65 rated, which allows the fixture to keep its internal temperature low without the use of a fan while also withstanding the outdoor environmental factors such as humidity, rain, dust.
Loading...
Light Source:
- LED Power: (7) 20w LED’s
- LED Color: 4in1 (RGBW)
- Flicker Free Technology: No flickering during filming or video
- 50,000 hours LED lifetime
- Output Intensity: 27,700 LUX@2m 8º/ 1,380 LUX@2m 50º
Power supply:
- Voltage: AC100-240V
- Max Power: 150w
Optics:
- Zoom Angle: 8º – 50º
- Dimming: 0-100%
- Strobe: 1-20 times/sec
Features:
- Housing: Die-Casting Aluminum
- Color Output: Linear Color System

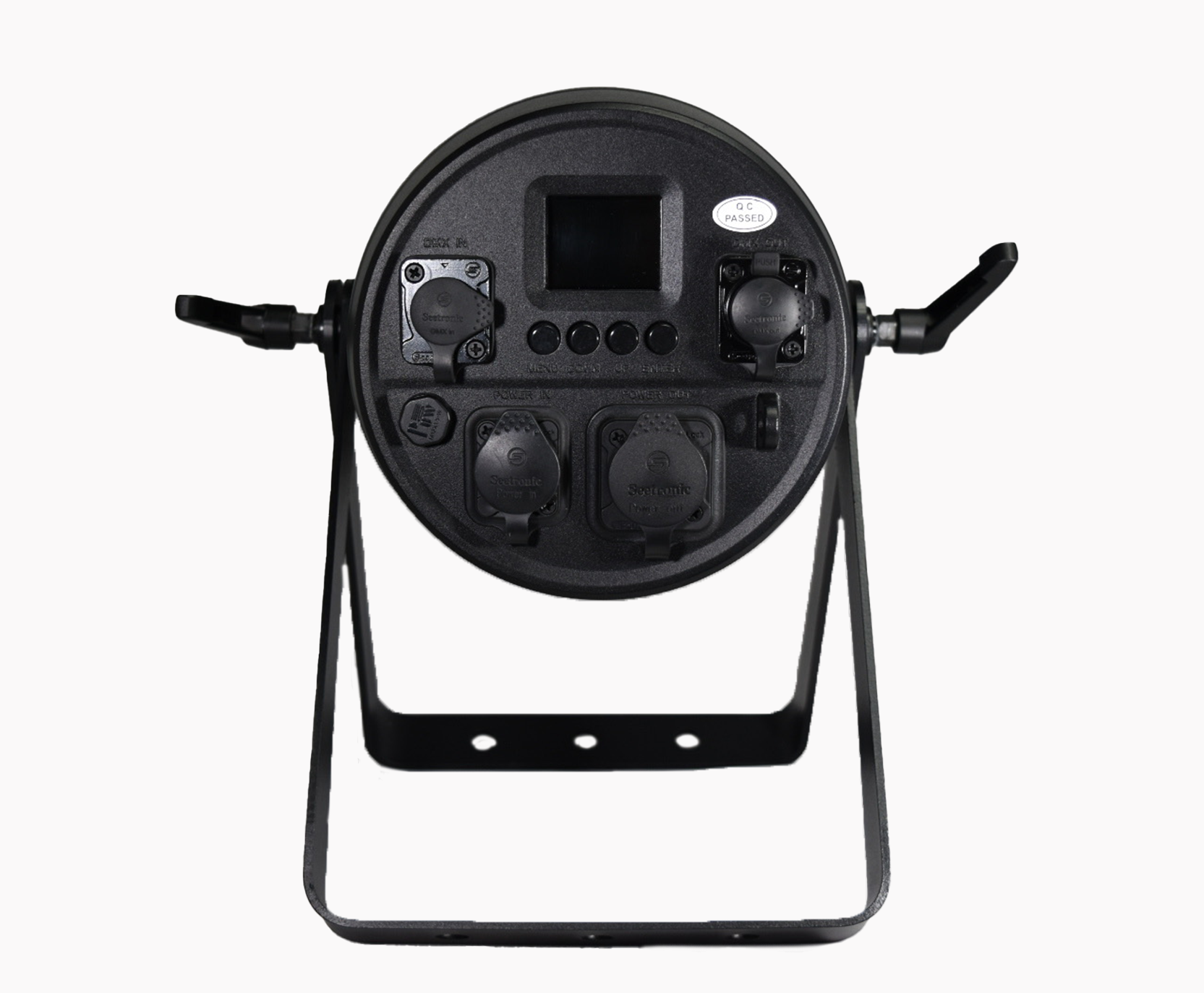

- Touch screen: LCD with touch screen
- DMX in & out: 3-Pin DMX input & output
- Power in & out: True One PowerCon™ input & output
Control:
- Control Protocol: DMX 512
- Control System: DMX, Auto run, Master/Slave, and Sound
- DMX Channels: 2CH, 4CH, 8CH, 17CH, 19CH
Working Environment:
- Cooling System: Convection cooling system (Quiet) (Fan-less)
- IP Grade: IP-65
Dimensions:
- Net Weight: 11 lbs / 5 kgs
- Product Size: 9.8×7.5×13.3 in/ 250x189x339 mm (LxWxH)
User Manual
Controller Profiles
- Lightshark: “Xenon_7x20” (2/4/8/17/19 Channels)
- Onyx: “Xenon Par” (2/4/8/17/19 Channels)
- Jands Vista: “Xenon Par” (2/4/8/17/19 Channels)
