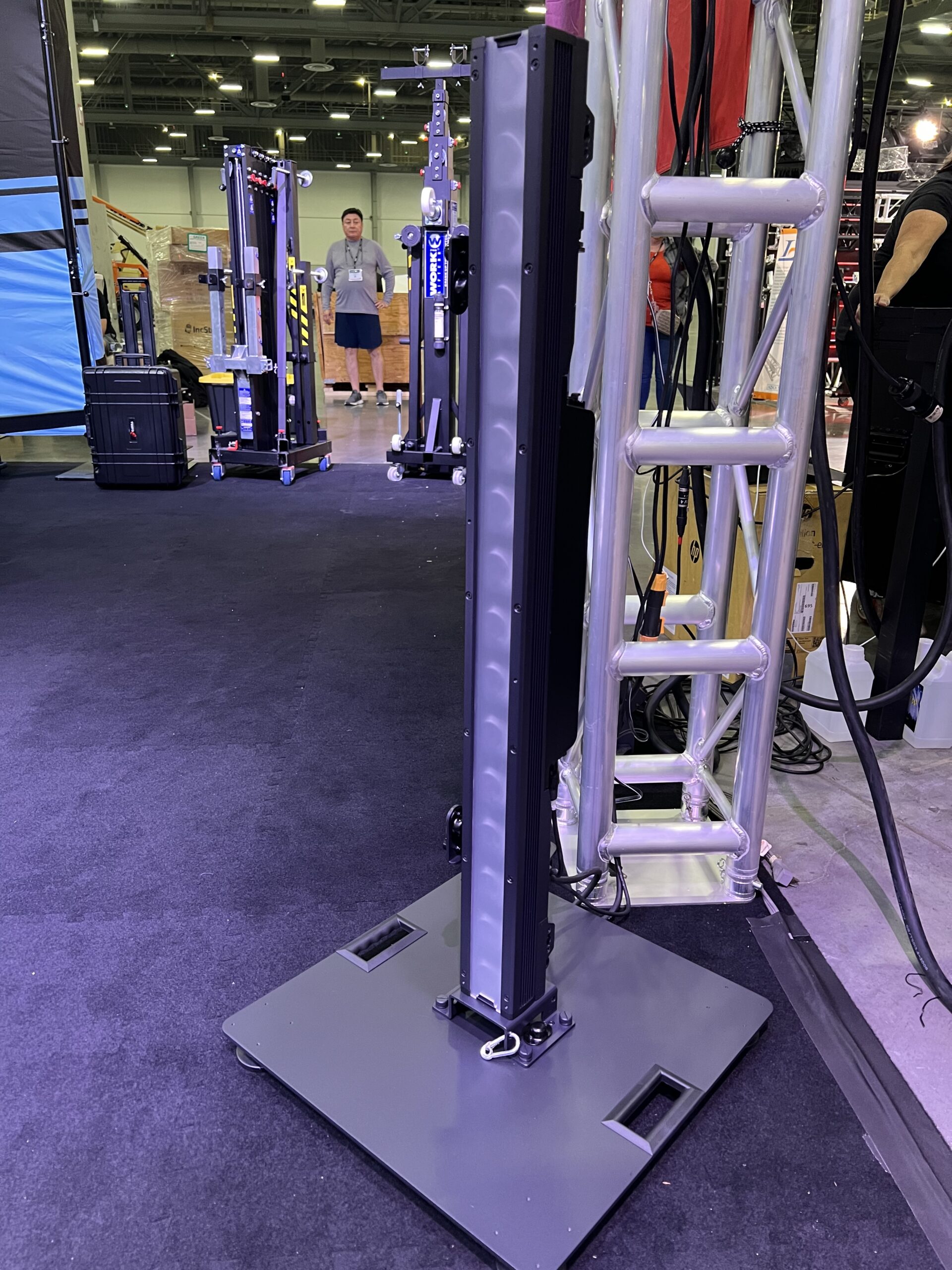

Mist Versa IP (16x20w)
Outdoor (Mist Series)
The Mist Versa IP is a powerful & sleek wash fixture that contains (16) 20 watt LED’s. This fixture is outdoor rated (IP-65), along with having pixel mapping capabilities which gives the user individual control of each LED. A perfect fixture for color washing any area as it provides smooth color mixing with its RGBW (4in1) LED’s and a 20º lens angle. Physically, this fixture has a Die Casting Aluminum housing which keeps its internal temperature cool for a fan-less/ quiet design. The dual rigging brackets allow for floor standing or hanging installations. Additionally this fixture is unique due to the specially designed base plate and locking latches. This allows for vertical application on the base plate or seamless connection between several fixtures to create a variety of designs.
Loading...
Light Source:
- LED Power: (16) 20w LED’s
- LED Color: 4in1 (RGBW)
- Flicker Free Technology: No flickering during filming or video
- 50,000 hours LED lifetime
Power supply:
- Voltage: AC100-240V
- Max Power: 270w
- True One™ Power con in/out
- DMX in & out: 3-Pin DMX input & output
Optics:
- Beam Angle: 12º
- Dimming: 0-100%
- Pixel Mapping
- Strobe: 1-20 times/sec
Features:
- Housing: Die-Casting Aluminum
- IR Remote control
- Barndoor
- Frost Filter (45×15º)
- Joint Bracket: Fast connection between 2 fixtures
- Vertical Adapter: Special hook holder for attaching a clamp and vertically hanging the fixture
- Base Plate (20×20″): A specially designed base plate which allows for the vertical connection of the Mist Versa IP fixture
- Color Output: Linear Color System
- Display: LED Display
- DMX in & out: 3-Pin DMX input & outpuT
- Tilt Brackets (Horizontal Installation)
- Omega Brackets (Horizontal Installation)
Control:
- Control Protocol: DMX 512/ RDM
- Control System: DMX, Auto run, Master/Slave, and Sound
- DMX Channels: 3CH, 7CH, 11CH, 32CH, 36CH
Working Environment:
- IP Grade: IP-65
Dimensions:
- Net Weight: 20 lbs / 9 kgs
- Dimensions: 40 x 4.1 x 5.5 in/ 1017 x 105 x 140 mm
