LS-Core
The smallest 8-universe lighting console in the world.
LS-Core is the smallest 8 universe lighting console in the market, bringing a built-in hardware with the LightShark engine including all its features. A USB-host input is available to connect a MIDI surface hardware to use real faders and buttons.
LS-Core is especially useful as an architectural controller thanks to its size that can be installed on any place and thanks to the LightShark internal scheduler.
Loading...
Features:
- 8 DMX universes (4096 channels).
- Designed for fast programming, avoiding repetitive tasks.
- Support for diverse protocols including DMX-512, Art- Net, ACN, MIDI, UDP, OSC & HTTP.
- Multiple touch events at the same time.
- Built-in fixture editor with support for virtual modes.
- 10 Physical Playback fader
- 20 Virtual Playback faders
- Manual crossfade.
- Built-in web server app.
- Up to 1200 cues.
- Built-in FX engine (more than 20 customizable effects).
- Submaster FX size & speed.
- RGB & CMY color picker.
- Customizable user palettes.
- Ultrafast cue triggering.
- Internal event scheduler.
Technical Data
| Power Supply | DC IN 5V/2A (90-240V 50/60Hz adapter included) |
| DMX Universes | 8 |
| Protocols supported | ArtNet, sACN, DMX, OSC, UDP, MIDI |
| Direct DMX Universes | 2 |
| USB Ports | 1 USB-Host |

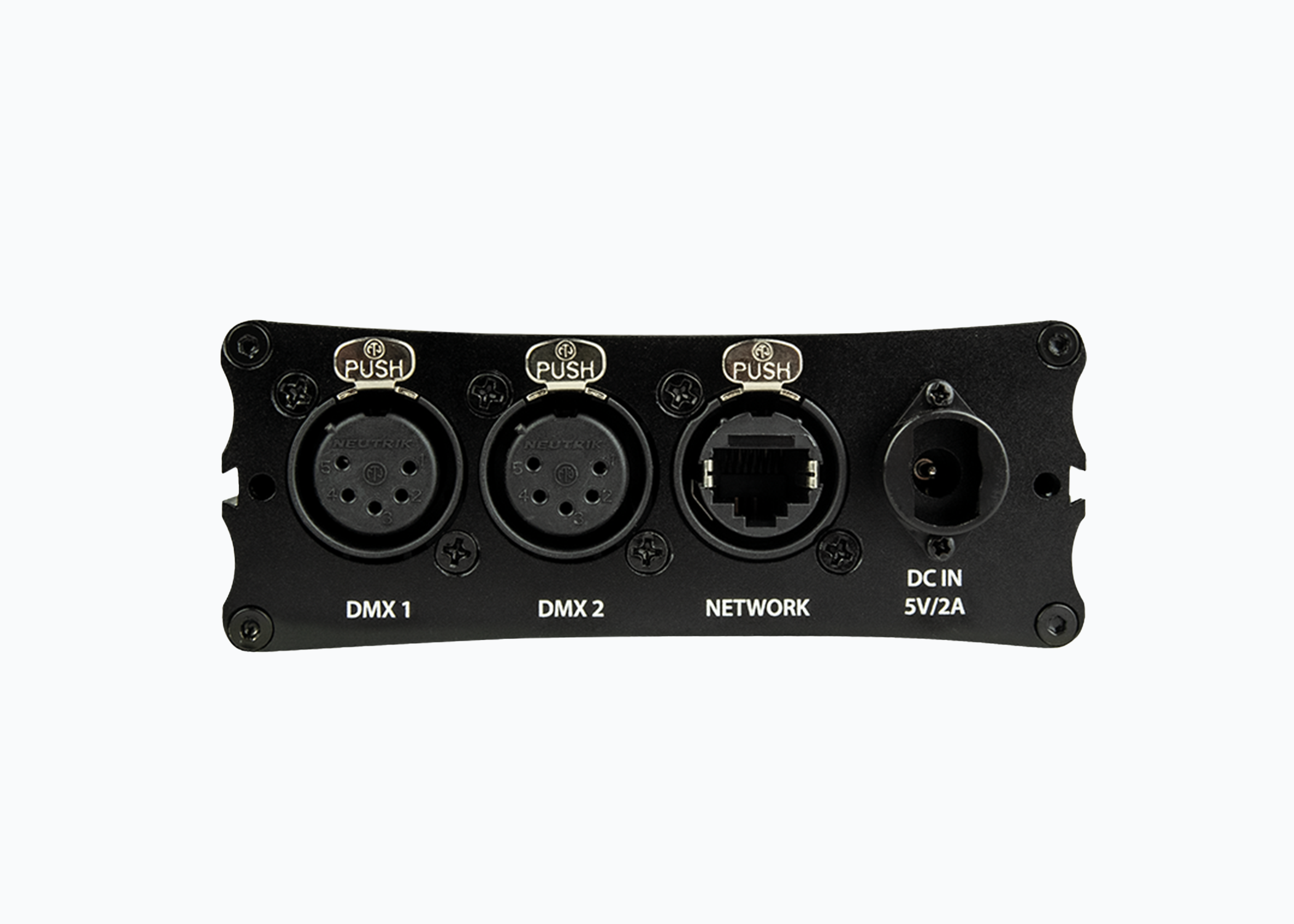

| DMX Ports | 2x 5-pin XLR |
| Screen | 2×16 LCD |
| Access Point WiFi | 2.4GHz |
| Power supply connector | DC Jack |
| Dimensions (W x H x D) | 108 x 40 x 142 mm |
| Weight | 468 g |
User Manual
