LED Pixel Strip IP (Package)

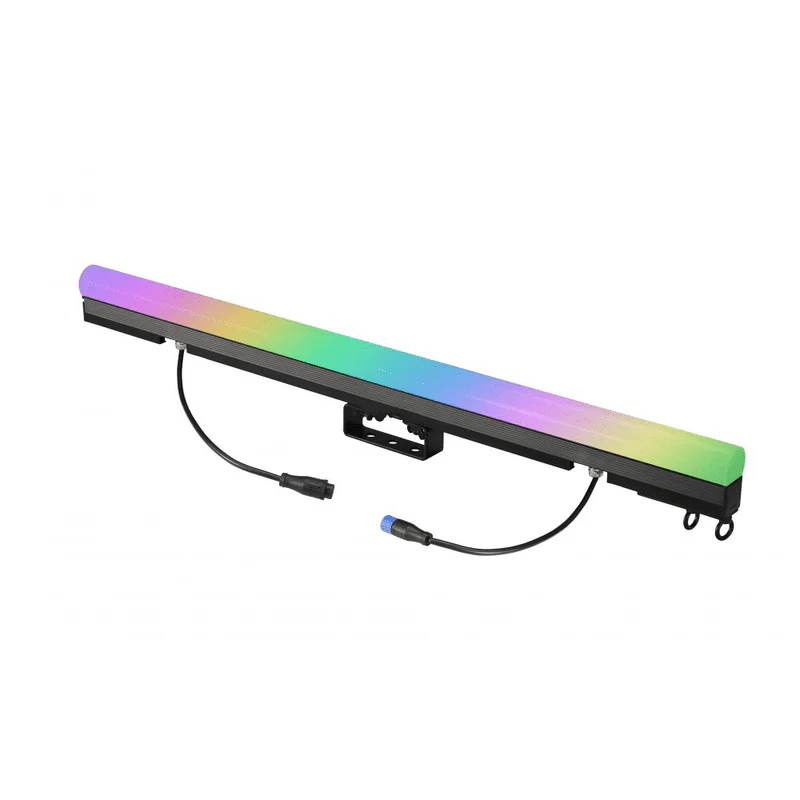

Our LED Pixel Strip IP is a pixel mapping, one-meter strip that sets up in minutes with minimal technical know-how. Each strip houses 40/80 tri-colored SMD 5050 LEDs, and has a pixel pitch of 25/12.5 millimeters and 120-degree viewing angle. With multiple control optionsindustry standard Art-Net pixel mapping displays are achieved in minutes. Runs both signal and power over a RJ45 cables that provides greater stability and connection in daisy chain (up to 16Pcs Led Pixel-Mapping Strip). IP-65 outdoor rated features also makes this a reliable setup for any type of setting no matter if its indoors or outdoors.

*Package includes 16 units and 1 controller

Loading...

Light Source:

  • LED Power: 40/80 SMD5050 RGB LED’s
  • LED Color: RGB
  • LED Lifetime: Over 50,000 hours

Power supply:

  • Voltage:  110-240V AC, 50/60Hz

Optics:

  • Beam Angle: 120º
  • Pixel Pitch: 25mm
  • Color Synthesis: RGB/Full Color mixing

Features:

  • Art-Net, RDM, DMX control protocol supported

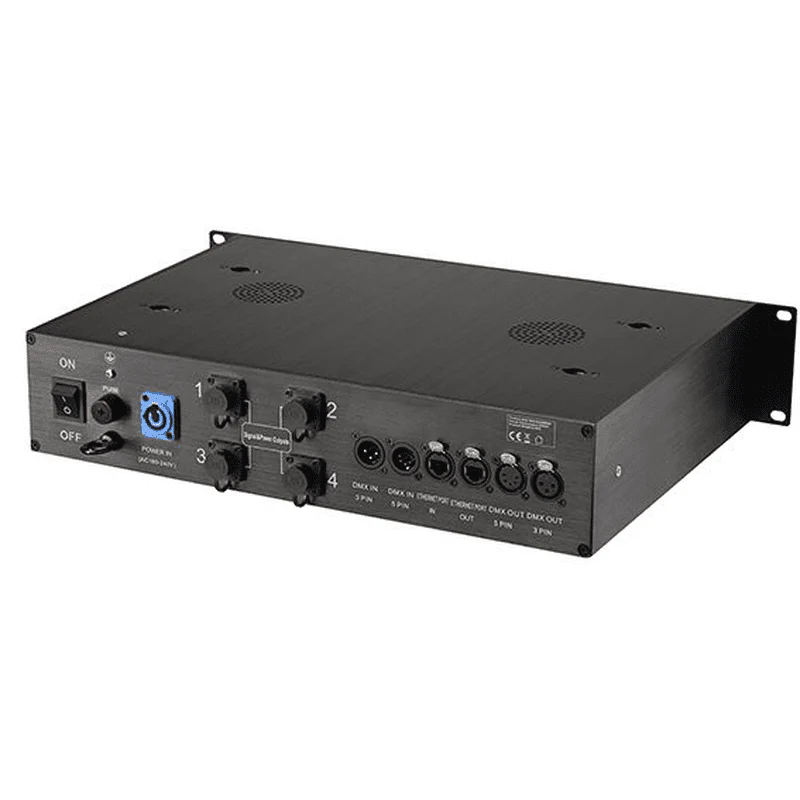

  • Power & Signal only through “LED Pixel Strip Controller IP”
  • Cover Options:
    -Milky White Dome Cover

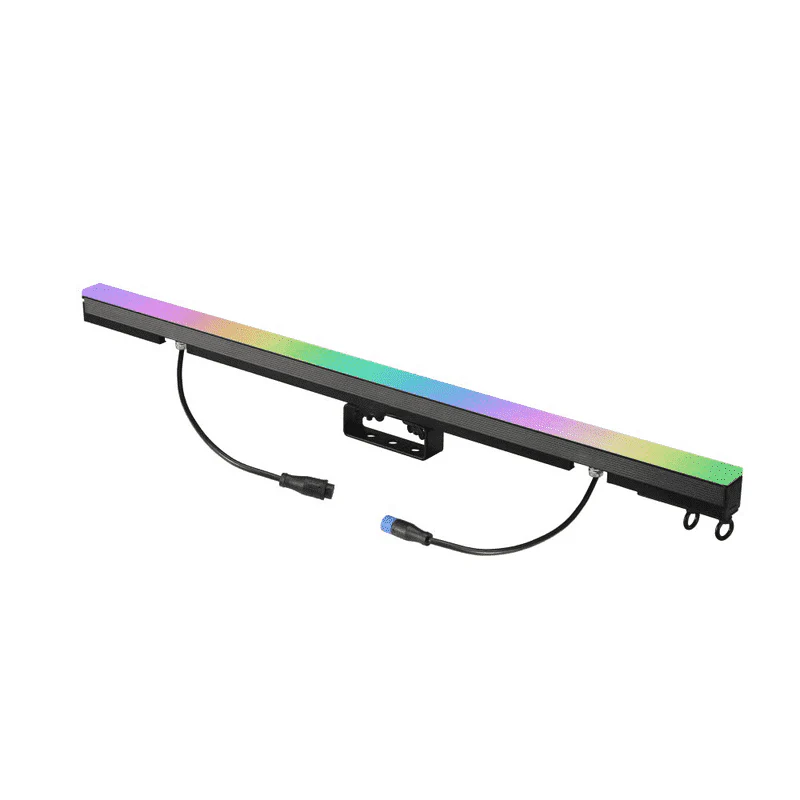

    -Flat Transparent Cover
    -Flat Black Cover
    -Flat Square Milky White Cover
  • Mounting Handle can be adjusted and moved
  • Covers can be changed at any time
  • Unique Lock design with simple and flexible joining
  • Channels Art-Net-120
  • DMX Channels-8

Control:

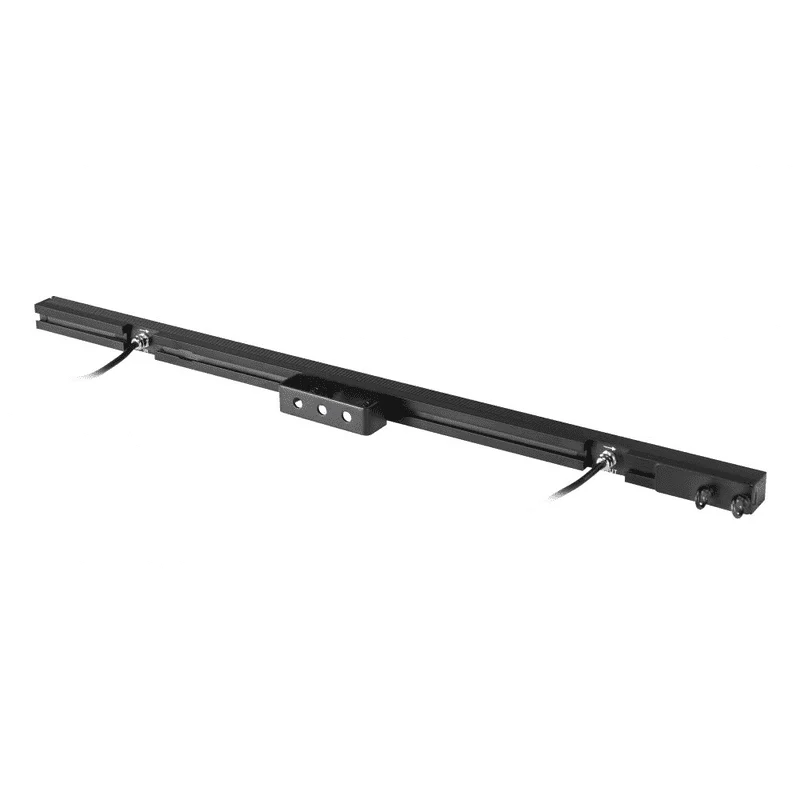

  • Housing: Sturdy Aluminum Profile
  • Outdoor Rated: IP-65
  • Power Consumption: 15/25w

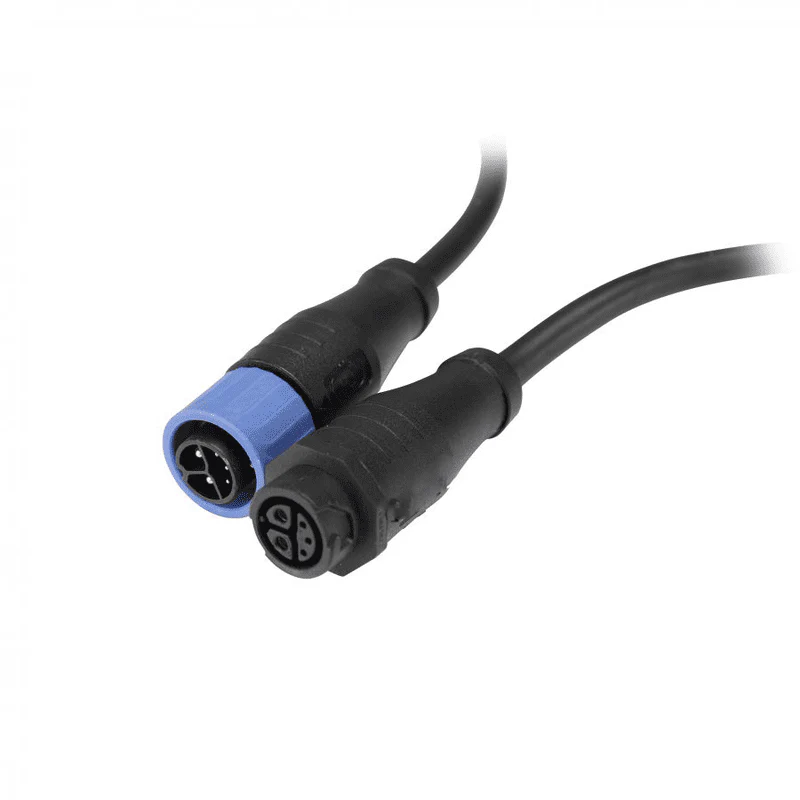

  • In/Out power wiring & signal through Power Supply (16 Units Max)

Working Environment:

  • IP Grade: IP-65

Package:

  • Net Weight: 4.4 lbs /2 kgs
  • Dimensions:39.3×1.4×3.7” in / 1,000x35x94 mm
