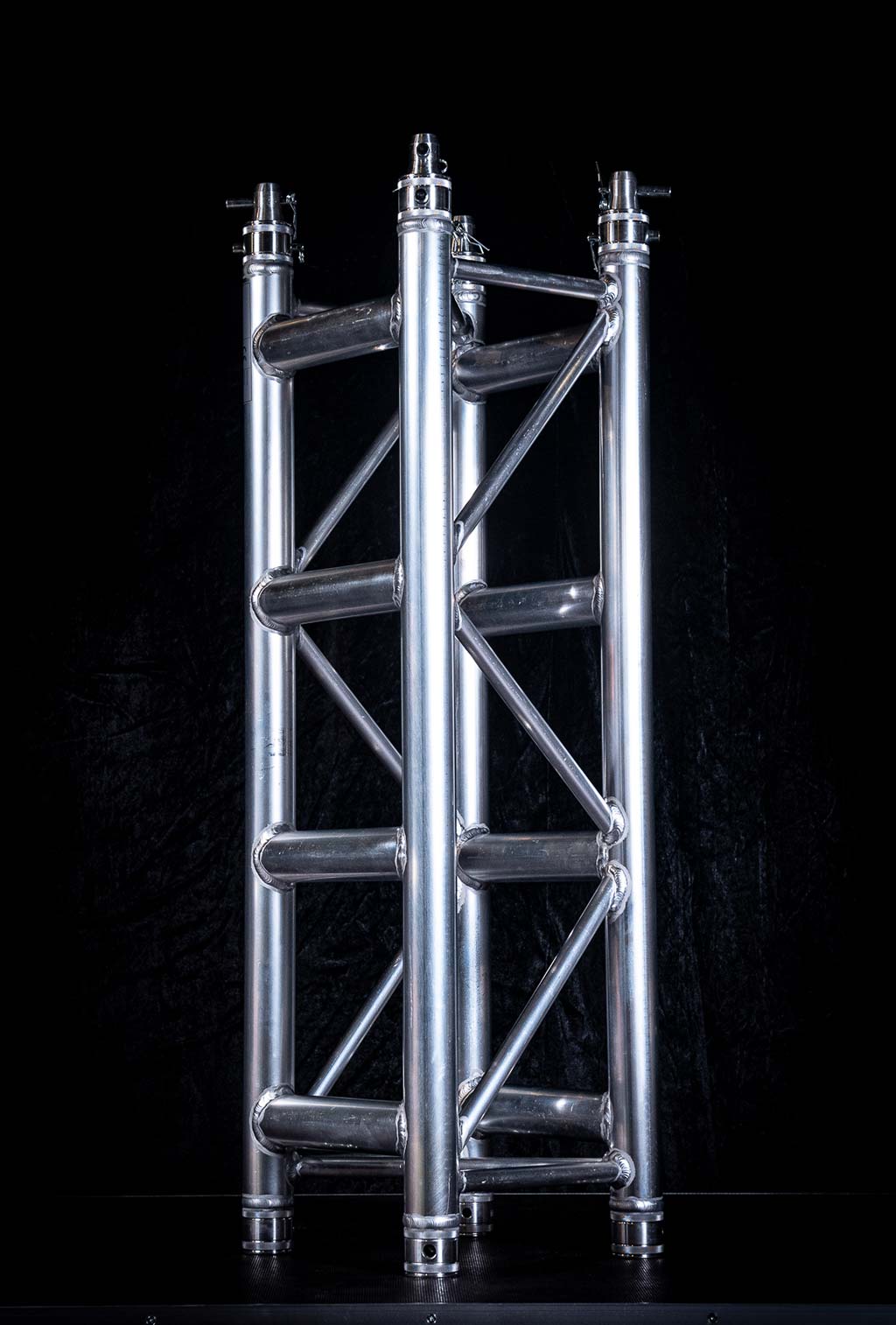

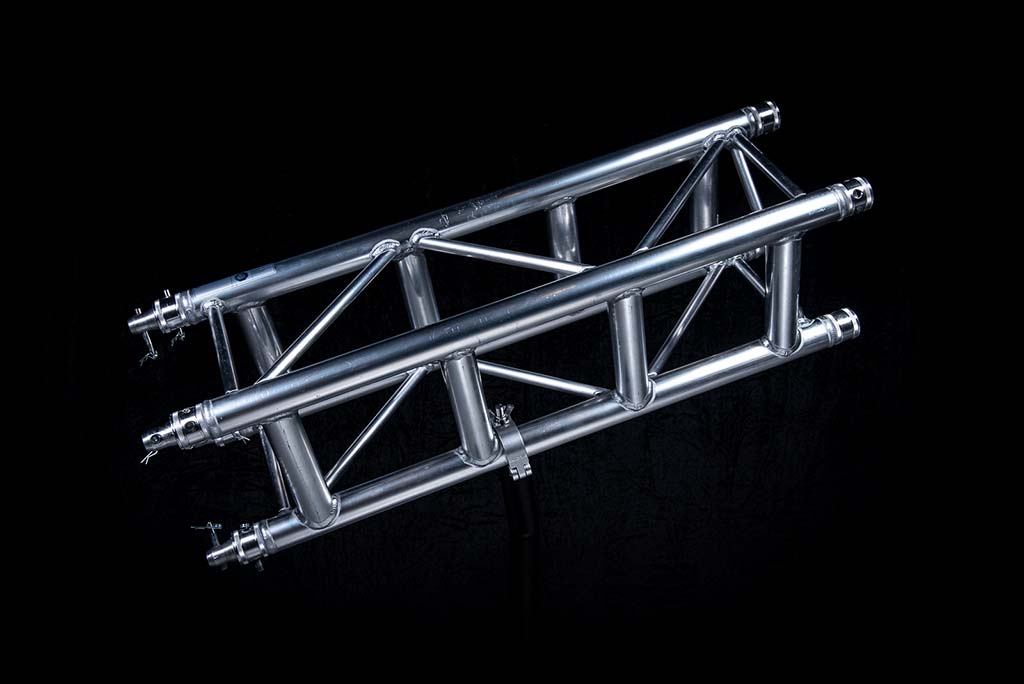

GT-300mm / Square Truss
Our 300mm GT-Truss (GT-300mm) is a 4-point truss system. This provides optimum volume and load capacity for its construction size and a tube diameter of 50mm. This system is connected via a special conical connector system, which is joined together to a complete form fit by means of a copper hammer, creating optimal traction. It is also characterized by a minimum transport volume and the special lightweight design. The conical connectors are of course included in the scope of delivery – special designs and powder coatings can be carried out at short notice. This size truss is meant to handle higher loads than our 290mm GT-Truss as it is made with 3mm thickness.
* (Please review load chart for more details)
Loading...
Technical Data
|
Pipe Diameter |
50mm |
|
Wall Thickness |
3mm |
|
0.5m |
11lbs/5kgs |
|
1m |
20lbs/9.09kgs |
|
2m |
37lbs/16.8kgs |
|
3m |
52lbs/23.6kgs |
| Colors | Black, Silver |
|---|---|
| Size Option | 1 m, 2 m, 3 m |
