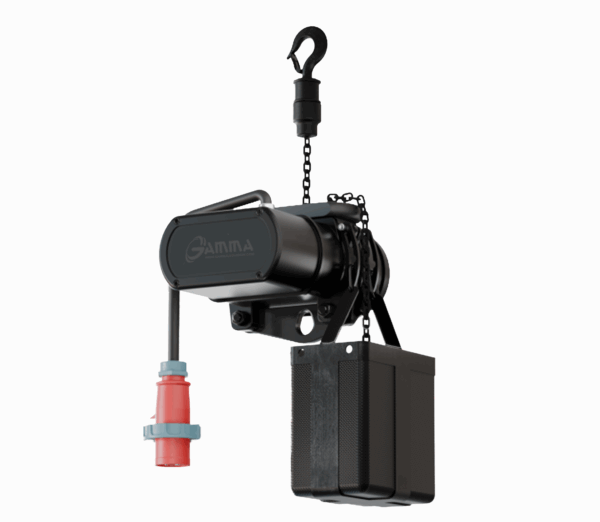

Electric Hoist (1/4 Ton)
Introducing the Electric Hoist – a cutting-edge electric motor designed to handle heavy-duty tasks with ease. Engineered to support up to 1/4 ton (500 lbs) of load capacity, this motor combines unmatched strength with a sleek and rugged design. The Electric Hoist ensures reliable performance for a range of production type applications such as rigging truss structures, Line Array, LED Video Walls and more.
This motor provides smooth and precise operation with just the press of a button. With its robust build and intelligent design, it is perfect for both indoor and outdoor use due to being IP-65 rated. Can be controlled and powered with either our 4 or 8 channel controller. Need a reliable, efficient solution to handle demanding tasks with minimal effort.
Loading...
Specifications:
- Lifting Capacity: 1/4 Ton (250kg)
- IP-66 Outdoor Rated
- Chain Length: 20 Meters
- Lifting Speed: 4m/min
- Chain Specifications: 4 x 12mm
- Dual Braking System
- Housing Design: Made of high strength aluminum alloy housing for heat dissipation and a light weight design
- Rated voltage: 380 – 415V, 3ph, 50-60Hz/ 220 – 230V, 3ph, 50-60Hz
- Rated frequency: 50/60HZ
- Current Consumption: 1.0 (A)
- Grade of Chain: G 100
- Chain Safety Factor: 8:1 (8 Times safety factor)
- Chain Surface: Phosphating (Black)
- Chain Guide: Precise Chain Guide with 5 Pocket Chain Wheel
- Detachable Chain Bag
- Full Load Noise Level: ≤60 db
- Brake: 2 DC Brakes
- Mechanism Class/ FEM9.511: 1Bm/25% ED
- Controlled via: 4 or 8 Channel Electric Hoist Controllers (See product pages for more info)
- Powered via: 4 or 8 Channel Electric Hoist Controllers (See product pages for more info)
- TUV Certified

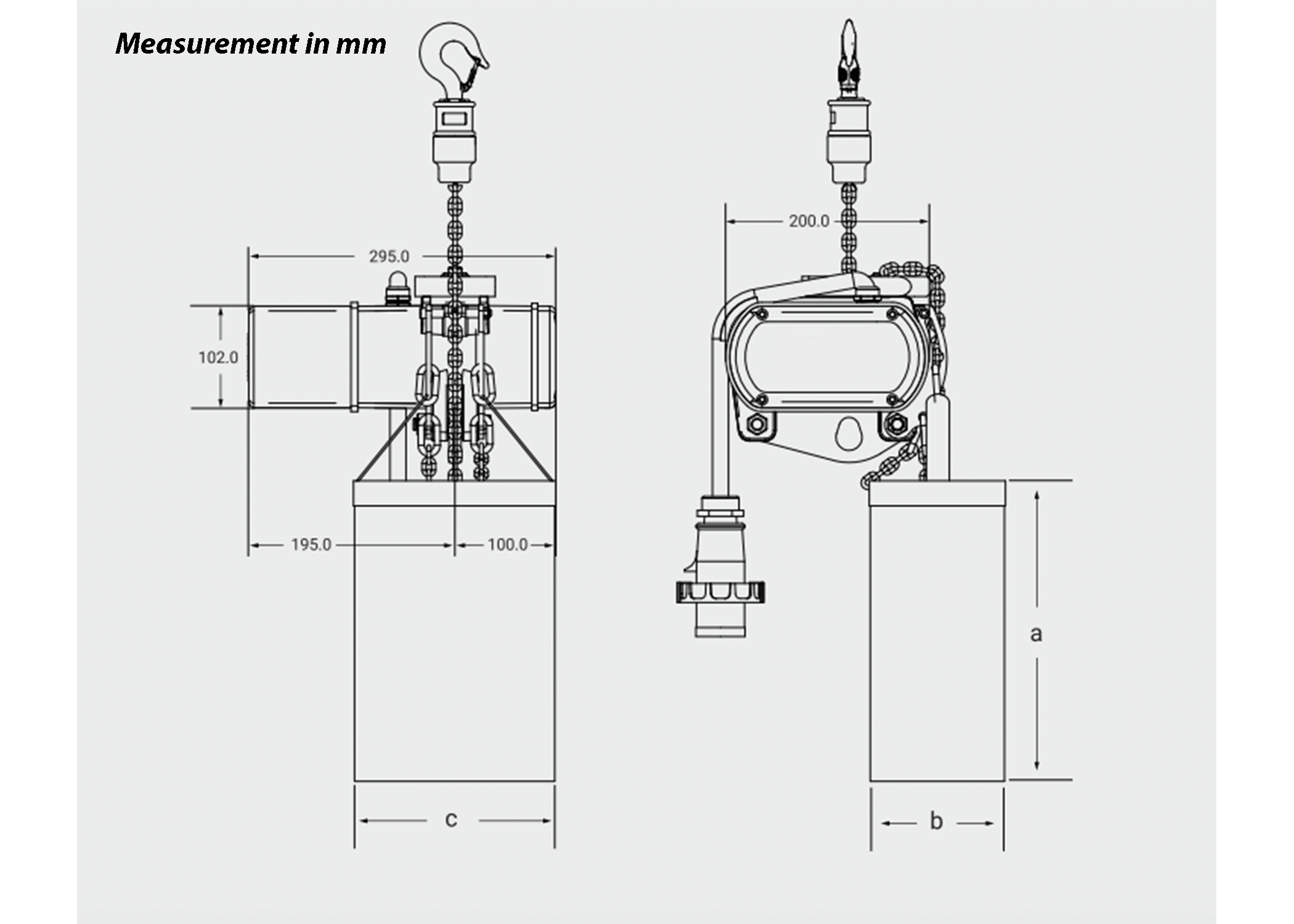

- Dimensions: 4 x 11.6 x 7.6 x 3.9 x 7.8″ (See 5th picture with dimensions)
- Weight: 26.4 lbs
Certifications:
Chain= TUV Certified
Electric Hoist= TUV Certified
Repair & Maintenance:
Gamma LED Vision is officially certified to perform repairs & maintenance on the Electric Hoist (1/4 Ton). These services are done in our Orlando Florida location.
